KNEWCONCEPTSSKU: SFBB00111

KNEWCONCEPTS® Mk3 3" FRET SAW WITH LEVER TENSION

$128.11
KNEWCONCEPTS® Mk3 3" FRET SAW WITH LEVER TENSION
$128.11
Low Stock (10)

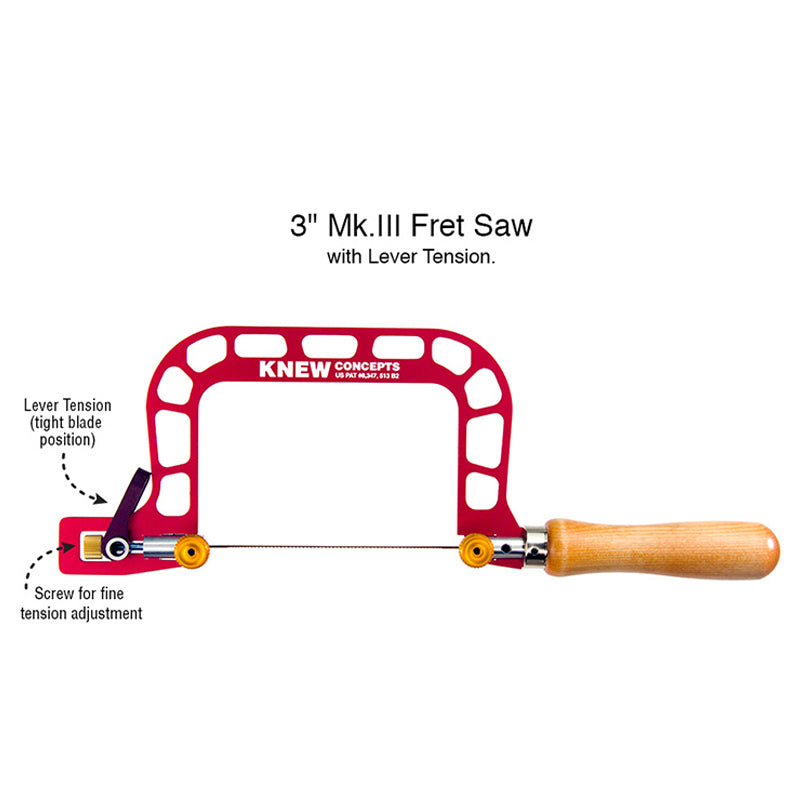

Product name: 3″ Mk.III Fret Saw with Lever Tension

Place of origin: Made in USA

Brand: KNEWCONCEPTS

Item No.: SFBB00111

Mode No.: #125.003C

Material: Anodized aircraft grade aluminum

Weight: 117.6g

Payment & Security
American Express
Apple Pay
Bancontact
Google Pay
Mastercard
PayPal
Shop Pay
Union Pay
Visa
3" Mk.III FRET SAW WITH LEVER TENSION
Model No.
#125.003C
Description
Designed for rapid, repetitive blade changes (when piercing for example). The tension does not change when re-setting the blade. Simply flip the lever forward to release tension, re-position and clamp the blade, and flip the lever to the rear, and you are sawing.
Blade Length
3 inches
Weight
117.6g
Material
Anodized aircraft grade aluminum
Place of origin
Made in the USA

Features:

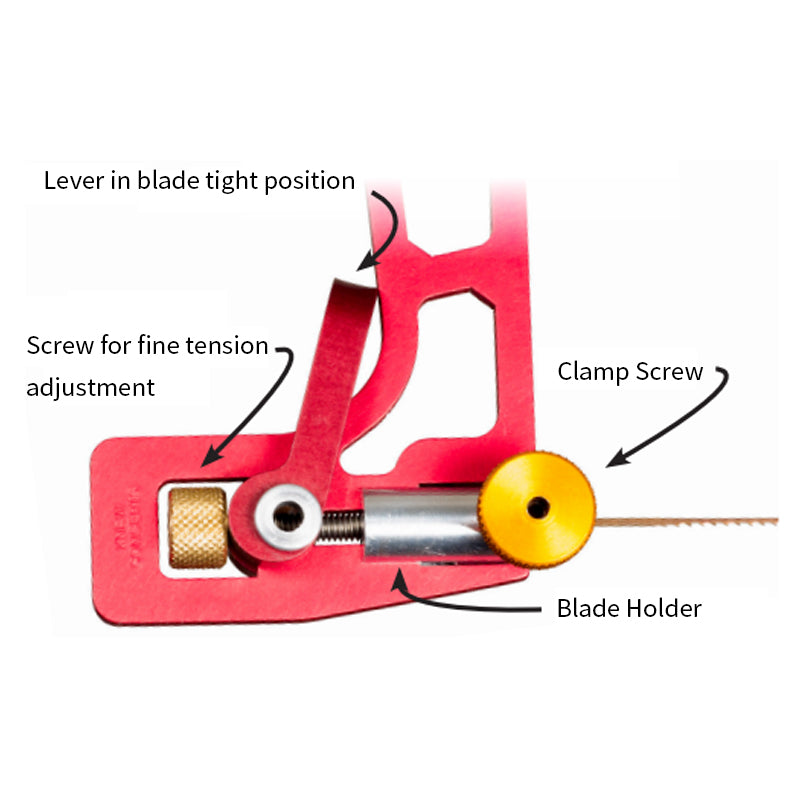

  • Cam release tension lever
  • Screw for fine tension adjustments
  • 51/a"blade ruler built into spine for checking blades
  • Clamp knobs readily switched from one side to the other for left or right-hand operation

Blade Removal & Length Checking

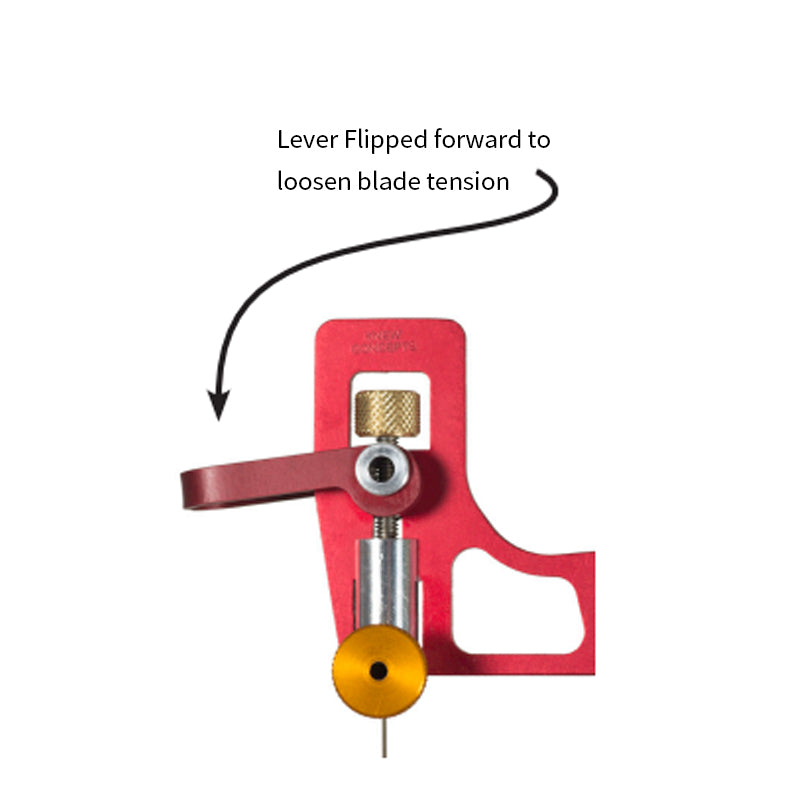

  1. Flip the lever 180 degrees, towards the front, as shown at left.
  2. Loosen both of the clamp screws by turning them counter-clockwise.
  3. Remove saw blade.
  4. Check length of new blade(if starting a new batch)

Check the Saw Blade length

Before sawing, check the length of the saw blades.
The standard length for jewelers /fret saw blades is 51/6"(130mm)
There is a blade ruler built into the spine of your saw.
There are flat spots in the windows along the spine that are exactly 5/s"apart, as indicated in the photo above left. Lay the blade between those two flat spots. If it's the same length, it's the right size.
  • If the blades are too long, use wire cutters to shorten the blades.
  • Blades that are shorter than standard will not work.
