KNEWCONCEPTSSKU: SFBB00114

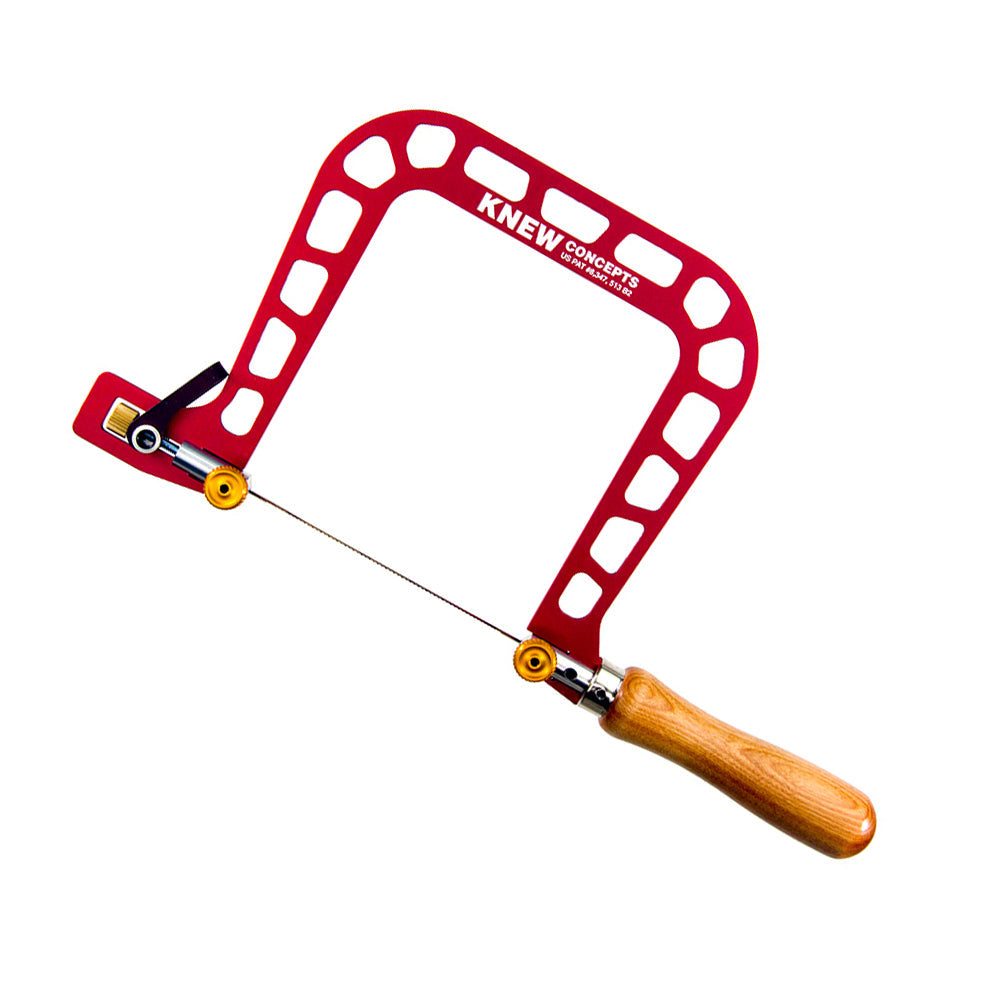

KNEWCONCEPTS® Mk3 5" FRET SAW WITH LEVER TENSION

$135.47
KNEWCONCEPTS® Mk3 5" FRET SAW WITH LEVER TENSION
$135.47
Low Stock (10)

Product name: 5″ Fret Saw with Screw Tension

Place of origin: Made in USA

Brand: KNEW CONCEPTS

Item No.: SFBB00114

Mode No.: #125.005C

Material: Anodized aircraft grade aluminum

Weight: 140g

Payment & Security
American Express
Apple Pay
Bancontact
Google Pay
Mastercard
PayPal
Shop Pay
Union Pay
Visa
Product Name
5" Mk.III FRET SAW WITH LEVER TENSION
Model No.
125.005C





Description
Designed for rapid, repetitive blade changes (when piercing for example).The tension does not change when re-setting the blade. Simply flip the lever forward to release tension, re-position and clamp the blade, and flip the lever to the rear, and you are sawing.
Material
Anodized aircraft grade aluminum
Weight
140g
Blade length
5 inches
Place of origin
Made in the USA


5" Mk.III FRET SAW WITH LEVER TENSION

Features:

  • Cam release tension lever ·Screw for fine tension adjustments
  • 5 1/8"blade ruler built into spine for checking blades
  • Clamp knobs readily switched from one side to the other for left or right-hand operation.

Blade Removal & Length Checking

  1. Flip the lever 180 degrees, towards the front, as shown at left.
  2. Loosen both of the clamp screws by turning them counter-clockwise.
  3. Remove saw blade.
  4. Check length of new blade(if starting a new batch)

Check the Saw Blade length

Before sawing, check the length of the saw blades.
The standard length for jewelers /fret saw blades is 5 1/8"(130mm)
There is a blade ruler built into the spine of your saw.

There are flat spots in the windows along the spine that are exactly 5 1/8"apart, as indicated in the photo above left. Lay the blade between those two flat spots. If it's the same length, it's the right size.
  • If the blades are too long, use wire cutters to shorten the blades.
  • Blades that are shorter than standard will not work.
