Achieving flawless micro-pavé settings and hairline scrollwork demands far more control than manual push gravers can deliver. A dedicated pneumatic engraving machine bridges this gap, transforming compressed air into microscopic, high-frequency impacts that allow jewelers to carve intricate patterns with surgical precision.
I. Core Definitions of Professional-Grade Micro-Engraving Pneumatic Equipment
High-end air-assisted engraving tools differ fundamentally from standard impact drivers in how they meter air volume and manage kinetic transfer at the cutting tip.
- Low-End PSI Threshold & Micro-Stroke Sensitivity: Professional consoles engage smoothly under minimal operating pressure. Eliminating initial dead zones prevents the graver from lunging forward unexpectedly upon startup, protecting delicate gemstone settings from accidental slip damage.
- High SPM Control for Micro-Detailing: A wide stroke-per-minute (SPM) dynamic range generates micro-vibrations that slice through metal continuously. This dense impact frequency allows artists to execute hair-thin banknote shading lines, raise uniform micro-beads, and produce mirror-finish bright cuts without leaving faceted stop marks.
- Linear Airflow & Instant Throttle Response: Advanced spool valves synchronize airflow directly with foot pedal travel. This zero-latency connection gives the setter absolute real-time control over cut depth down to the micron.
II. Key Machine Architecture & Systems
A reliable jewelry workshop power unit relies on stable pneumatic regulation to maintain steady cuts throughout long production runs.
- Dual-Port / Multi-Handpiece System: Multi-channel consoles allow jewelers to keep both a lightweight micro-shading handpiece and a heavy background hammer connected at once. Front-panel selector dials let you switch tools instantly without re-routing pneumatic lines.
- Precision Regulators & Dual-Gauge Monitoring: Integrated high-sensitivity regulators provide independent readouts for main line input pressure and handpiece working pressure, making it simple to dial in repeatable settings for different precious metals.
- Internal Damping & Smooth Airflow Dynamics: Precision-machined internal manifolds absorb sudden air pulses, delivering a steady, chatter-free flow to the handpiece piston for smooth curves and clean cuts.
III. Precision Handpieces & Tooling Compatibility
The handpiece is the direct link between the jeweler and the piece. Its geometry and chuck design directly impact daily productivity.
Slim & Ultra-Light Micro Handpieces

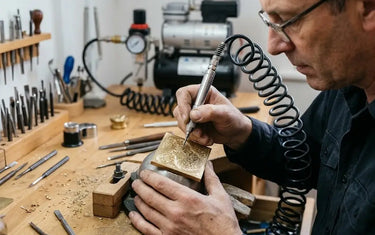

Engineered with a pen-like balance, micro handpieces reduce hand strain during hours of continuous work under a microscope. The ergonomic profile allows fine rotational adjustments on an engraving block without obstructing the line of sight.
QC Quick-Change System & Collet Standards
Modern pneumatic systems use hardened steel quick-change (QC) collets. These chucks accommodate standard 3/32" (2.35 mm) and 1/8" shank gravers, allowing you to swap between flat, onglette, round, and knife-edge carbide blanks in seconds without set-screw wrenches.
Integrated Air Blast Feature
Dedicated auxiliary air ports direct a fine stream of exhaust air straight to the graver tip. This continuously blows away metal chips and burrs, maintaining an unobstructed view of layout lines under high magnification.
IV. Fine Detailing Applications in Professional Workshops
Air-driven precision systems excel across a wide range of demanding metalworking and jewelry-making tasks:
- Jewelry Micro-Pavé & Bright-Cutting: Enables rapid, consistent bead raising across tight diamond layouts, precise prong shaping in halo rings, and crisp bright-cut borders that maximize light return.
- Custom Metal Scrollwork & Shading: Delivers the delicate touch needed for ultra-fine bulino shading, western scrollwork, and shallow relief carving on custom knife bolsters, firearm receivers, and luxury watch plates.
- Hard Alloy & Precious Metal Engraving: Effortlessly cuts tough, gummy metals like platinum and high-karat gold, as well as resilient base materials including titanium alloys and annealed tool steels.
V. Professional Sourcing & Workshop Setup Considerations
Setting up a high-precision air engraving workstation requires careful planning around air quality and daily operating loads.
- Clean Air Supply Requirements: External setups demand an oil-free, ultra-quiet compressor paired with a professional two-stage oil-water separator. Clean, dry air prevents moisture and aerosol contaminants from causing friction or corrosion inside the handpiece cylinder.
- Duty Cycle & Reliability: Commercial benches running multi-hour shifts need all-metal internal valves designed for continuous operation, backed by modular hardware that supports future bench additions.
VI. Featured Pro Solution: SmartPro AIR DO X 2-in-1 Workstation
For studios seeking an integrated, high-precision setup, the SmartPro AIR DO X combines pneumatic power and high-speed rotary carving into a compact desktop footprint:
- Built-in Compressor Integration: Eliminates external air tanks, noisy shop compressors, and tangled hoses. The self-contained internal pump runs quietly and keeps your workbench clean and organized.
- Ultra-Low 240 SPM Sensitivity: Starts smoothly at just 240 strokes per minute, giving setters the micro-impact control needed to close delicate prongs on fragile gems without risking stone chips.
- Dual-Process Synergy (Pneumatic Graver + 35,000 RPM Micromotor): Integrates an air impact system with a 35,000 RPM rotary handpiece. You can seat stones, cut setting seats, shape prongs, and run final polish cycles from a single control unit.
- Digital Parameter Repeatability: An intuitive LED screen combined with dual-control dials allows you to save and recall exact speed and frequency settings for specific metals and tasks.
- Turnkey Tooling Package: Ships complete with an ergonomic SPH3 engraving handpiece, multiple quick-change collets (2.5 mm / 3.5 mm), carbon steel gravers, and a high-speed rotary handpiece for immediate out-of-the-box operation.
Upgrading your bench with a dedicated pneumatic system delivers the control, speed, and precision needed for flawless jewelry fabrication and intricate metal carving. Explore professional-grade pneumatic engraving machines and accessories at LuxgoldTools to equip your workshop with the right tools today.
