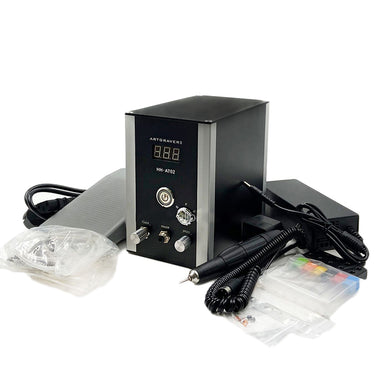

HH-AT02 pneumatic jewelry engraver machine set with micromotor handpiece, pedal, and tools.

Black HH-AT02 pneumatic jewelry engraver machine showing dimensions 120mm by 220mm by 180mm.

Rear view of HH-AT02 pneumatic jewelry engraver showing power inlet, foot control, and micromotor ports.

Back view of HH-AT02 pneumatic jewelry engraver control unit with connected power adapter and cables.

Front view of HH-AT02 pneumatic jewelry engraver control boxes in black, red, and blue.

Front panel of red HH-AT02 pneumatic jewelry engraver with digital speed display and control knobs.

Front panel of blue HH-AT02 pneumatic jewelry engraver featuring speed control and graver connector.

Front panel of black HH-AT02 pneumatic jewelry engraver with mode switch and digital display.

HH-AT02 pneumatic jewelry engraver technical specifications chart and included accessories layout.

Three color options of HH-AT02 pneumatic jewelry engraver control box displayed side-by-side.

HH-AT02 pneumatic jewelry engraver function diagram labeled with controls, ports, and handpieces.

Close-up diagram of mode toggle switch, power knob, and speed control on HH-AT02 engraver.

Specifications chart for HH-AT02 jewelry pneumatic engraver showing power and speed parameters.

Product advantages overview of HH-AT02 pneumatic engraver highlighting micromotor function.

Application examples for HH-AT02 pneumatic engraver including stone setting and jewelry processing.

LUXGOLDTOOLSSKU: ENJC00391

Pneumatic Jewelry Engraver HH-AT02 GraverMax

Name: Pneumatic Jewelry Engraver HH-AT02 GraverMax
Brand: LUXGOLDTOOLS
SKU: ENJC00391
Price: 933.35 USD
Availability: InStock

$933.35

Shipping calculated at checkout.

Product variants

Pneumatic Jewelry Engraver HH-AT02 GraverMax

$933.35

Low Stock (2)

Model Number: ENJC00391

Product name: HH-AT02 Pneumatic Jewelry Engraver

Size: 22*12*18cm

Voltage: 100-240V

Power: 160W

Graver speed: 0-100%

Micromotor speed: 0-35000RPM

Color: Black/Blue/Red(random)

Selling point: no need air compressor

Payment & Security

Perform pneumatic engraving, high-speed rotary drilling, and fine polishing from a single workbench station without an air compressor. The HH-AT02 ARTGRAVER Pneumatic Jewelry Engraver II combines an upgraded 160W pneumatic impact system with a high-torque 0–35,000 RPM rotary micromotor handpiece, delivering complete, versatile bench processing in one compact footprint.

Why Choose the HH-AT02 ARTGRAVER System

Compressor-Free Pneumatic Impact: Operates completely without an external air compressor, saving bench space, eliminating noisy workshop motor clatter, and reducing maintenance overhead.
Integrated 35,000 RPM Micromotor: Includes a dedicated rotary micromotor handpiece ( $0-35,000 RPM$ ) for seamless switching between impact engraving, high-speed drilling, and micro-polishing.
3-Mode Front Panel Selector Switch: Features an intuitive mode knob to rapidly toggle between Engraving (G), Polishing (P), and Drilling (D) functions.
Dual Exchangeable Handpiece Pistons: Comes with $4g$ and $6g$ internal pistons, allowing craftsmen to tune impact heft for delicate bulino shading or heavy carving in hard metals like steel and titanium.
Upgraded 160W High-Efficiency Power Output: Upgraded 160W internal driver system accepts universal 100–240V power grids for consistent, non-stalling performance worldwide.

Note on Unit Color: The main control box is available in Black, Blue, and Red. Units are shipped with random color selection based on factory stock availability.

Technical Specifications & Included Package Contents

Product Model Name	HH-AT02 ARTGRAVER II Pneumatic & Micromotor System
System Power Rating	160W
Operational Grid Voltage	$100-240V$ Universal Dual-Voltage ( $50/60Hz$ )
Pneumatic Requirements	100% Compressor-Free (Internal Pulse Generator)
Impact Engraver Speed	$0-100%$ Adjustable Stroke Frequency
Micromotor Rotary Speed	$0-35,000 RPM$ Variable Speed Handpiece
Operation Modes Switch	3-Way Selector Knob: G (Engraving), P (Polishing), D (Drilling)
Control Unit Color Option	Black / Blue / Red (Randomly Shipped)
Machine Body Dimensions	$22 x 12 x 18 cm$ ( $220 x 120 x 180 mm$ )
Shipping Dimensions & Weight	$45.5 x 34 x 19 cm$ • Gross Weight: $5 kg$
Included Accessories Set	Main Control Unit • Pneumatic Impact Handpiece & Hose • 35,000 RPM Rotary Micromotor Handpiece • 4g & 6g Internal Pistons • Pressure Foot Pedal • Power Supply & Cord • 6 Color-Coded Gravers • Quick Change Chucks & Base • Handpiece Base Dock • Wrenches & Carbon Brushes • Voltage Conversion Plug

Master Jewelers & Stone Setters: Essential for pave setting, bright-cutting, prong lifting, and bead raising (millgrain) on platinum, gold, and silver.

All-in-One Bench Operators: Perfect for jewelers who need to alternate constantly between pneumatic impact carving and rotary burr drilling without cluttered cables and extra power boxes.

Custom Firearms & Metal Artisans: Ideal for scrollwork, relief carving, and micro-mosaic detailing on hardened steel, titanium, and brass surfaces.
