Alfa Mirage® Design Template

Accelerate technical drafting, customer design renderings, and direct wax layout with Japanese precision. Manufactured in Japan from ultra-thin, highly flexible drafting plastic, Alfa Mirage® Design Templates feature calibrated cutouts for gemstone cuts, ring perspectives, findings, and band profiles. Engineered to eliminate drawing parallax and shadow lines, these professional stencils allow bench jewelers, CAD designers, and wax carvers to render accurate technical blueprints and scribe wax blocks directly.

Why Choose Alfa Mirage® Jewelry Design Templates

• Made in Japan Precision: Precision-stamped Japanese manufacturing ensures exact scale proportions across all stone dimensions, ring diameters, and setting geometries.

• Ultra-Thin Flexible Profile: Ultra-thin drafting plastic allows mechanical pencils and scribes to make direct contact with paper or wax, eliminating "shadow lines" and offset errors caused by thick rulers.

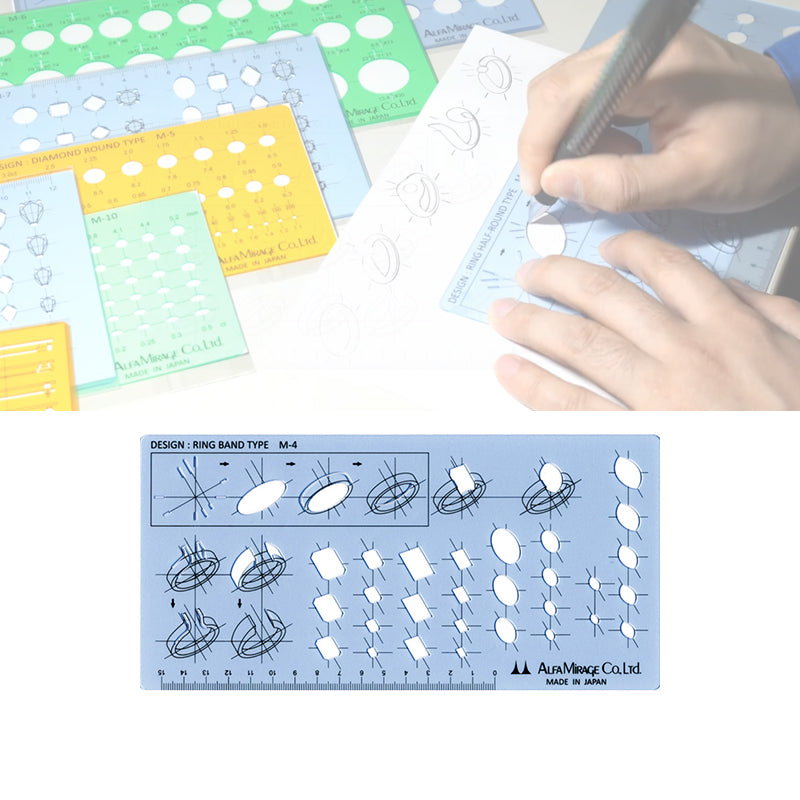

• Direct Wax Block Scribing: Flexible plastic contours smoothly over carving wax blocks, ring tubes, and mandrels, allowing carvers to scribe centerlines and stone seats directly onto wax before carving.

• Rapid Client Concept Rendering: Enables designers and sales consultants to draw balanced, proportional 3D ring views, gemstone facets, and prong positions during client consultations.

• Comprehensive 11-Template System: Covers popular gemstone cuts, diamond carat diameters, angled perspectives, ring band styles, and jewelry findings across 11 individual stencil designs (M-1 to M-11).

Technical Specifications & Template Guide (M-1 to M-11)

Item Code	Model	Design Profile	Detailed Functional Description & Applications

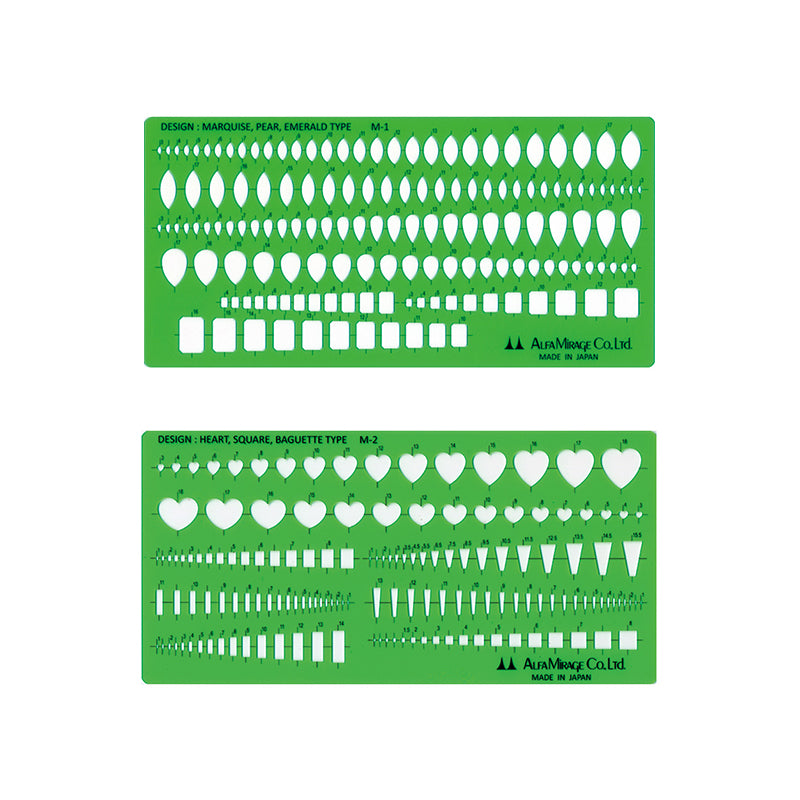

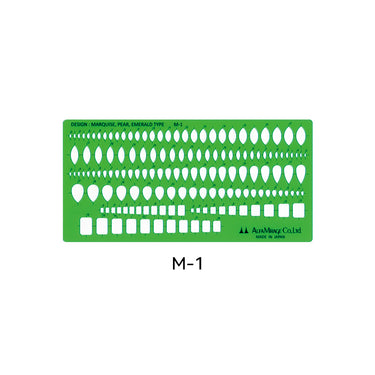

305-129	M-1	Marquise, Pear, Emerald Type	Calibrated cutouts for popular marquise, pear, and emerald gemstone cuts.
305-130	M-2	Heart, Square, Baguette Type	Precision stencils for heart, square, and baguette gemstone profiles.

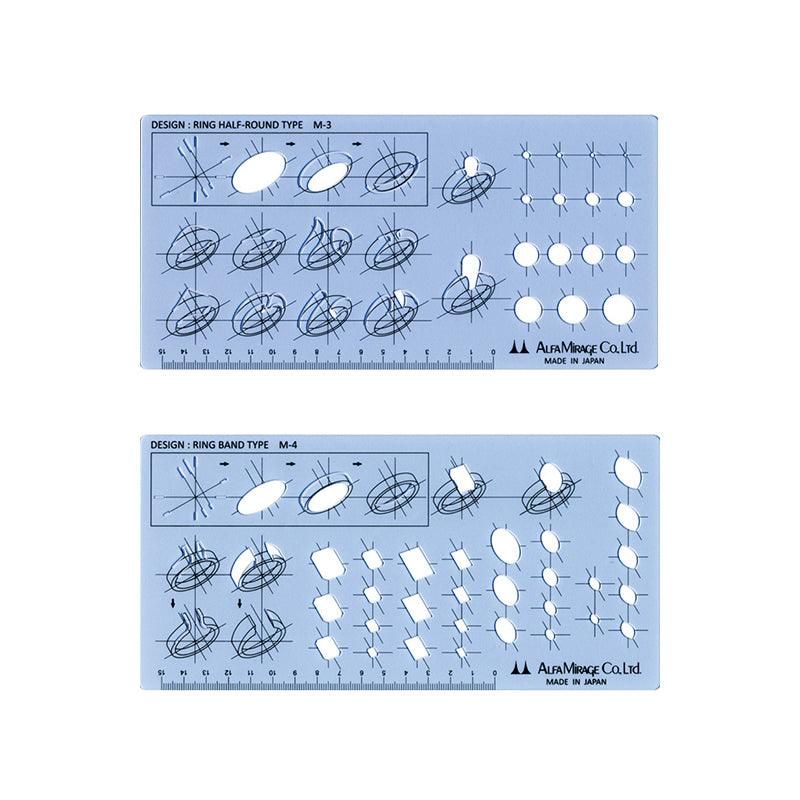

305-131	M-3	Ring Half-Round Type	Designed for drawing 3D three-dimensional half-round ring perspectives.
305-132	M-4	Ring Band Type	Stencils for various ring band profiles, shanks, and 3D angle views.

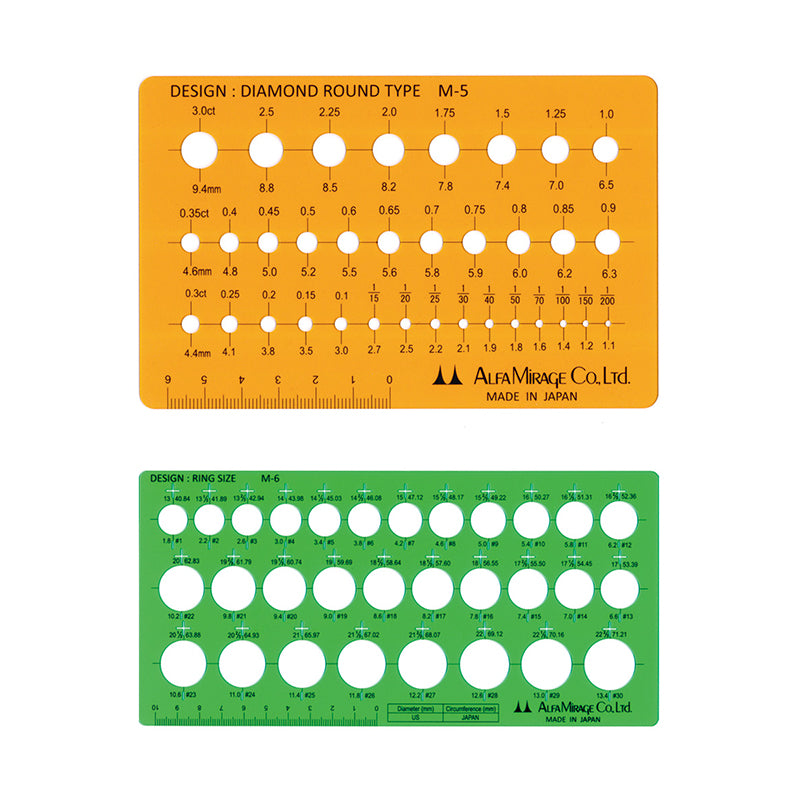

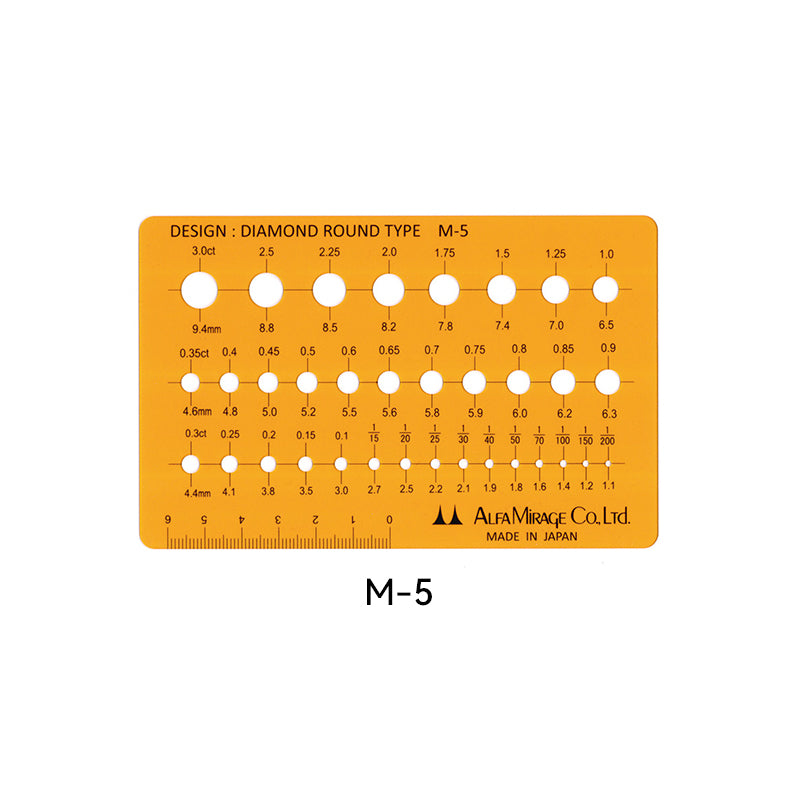

305-133	M-5	Diamond Round Type	34 carat sizes ($1/200\text{ ct}$ to $3\text{ ct}$) based on round brilliant cut diameters.
305-134	M-6	Ring Size	Draws ring circles and centerlines directly onto paper drawings or carving wax.

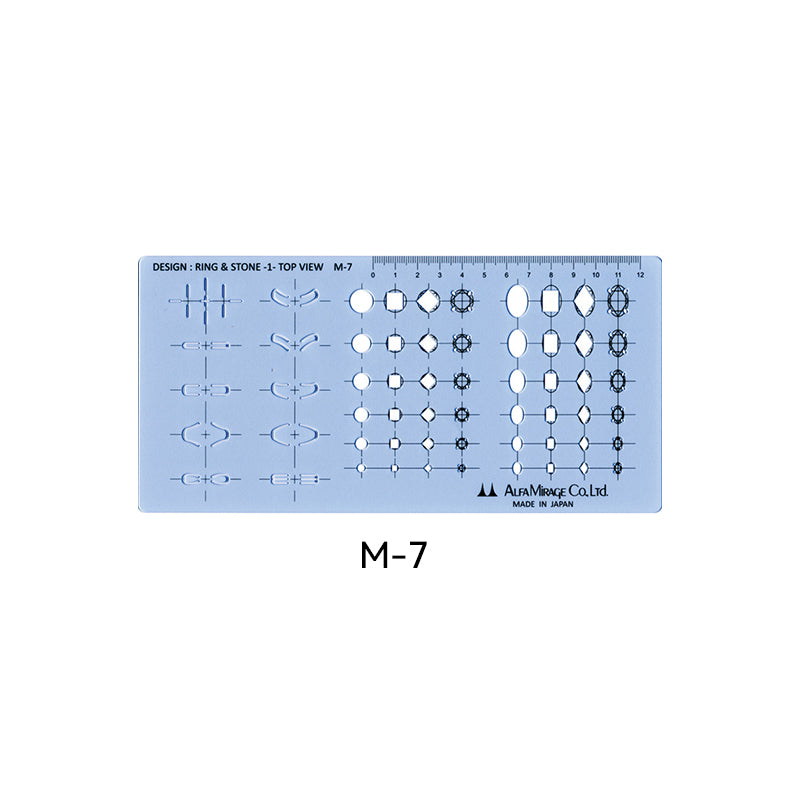

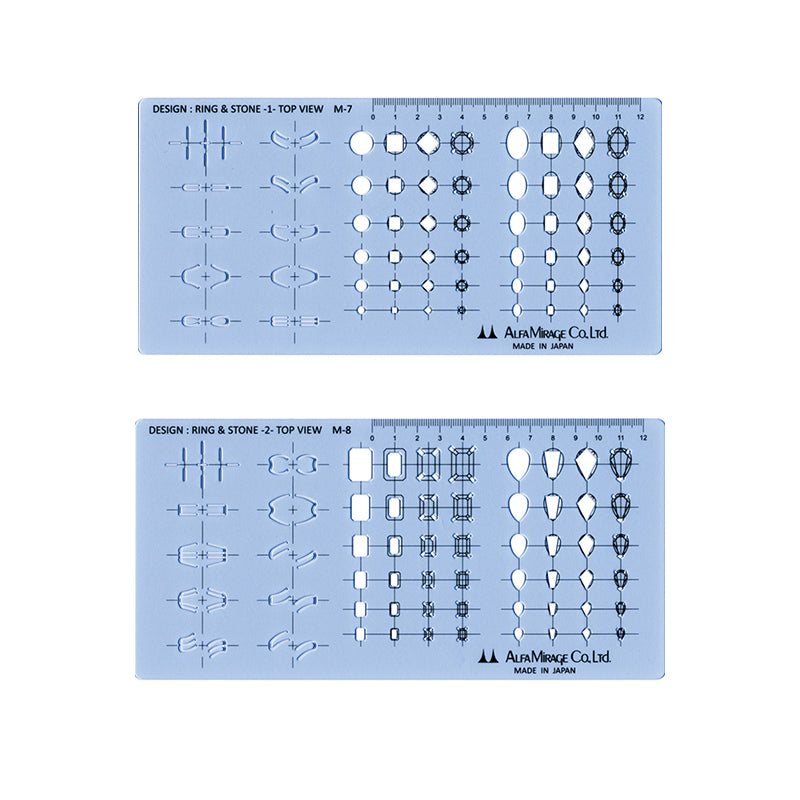

305-135	M-7	Ring & Stone -1- Top View	Top-view ring layouts including facet lines, prongs, and 6 arm designs.

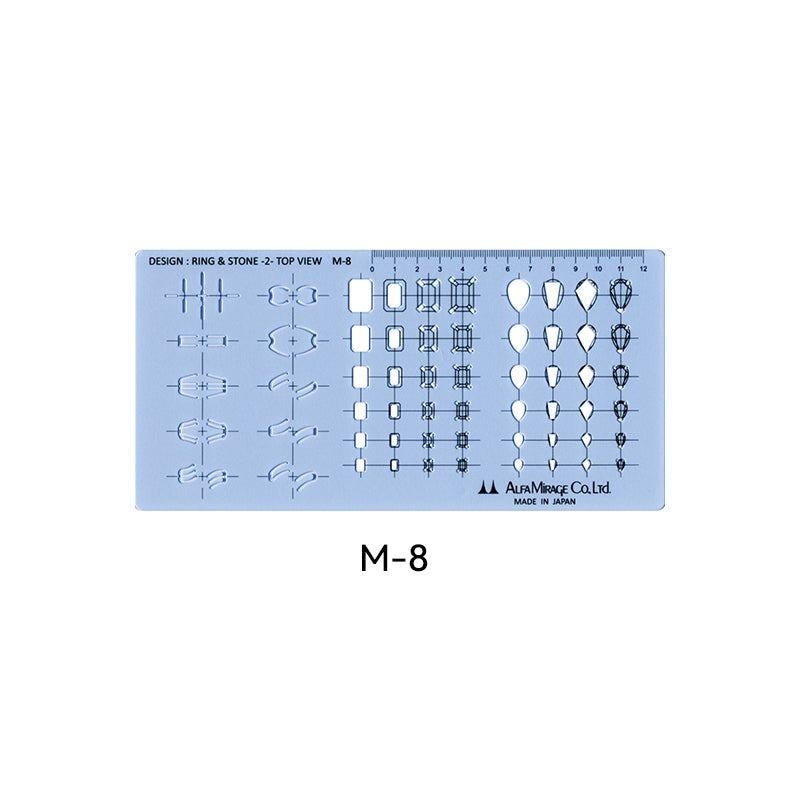

305-136	M-8	Ring & Stone -2- Top View	Expanded top-view ring layouts for various setting styles and shoulder accents.

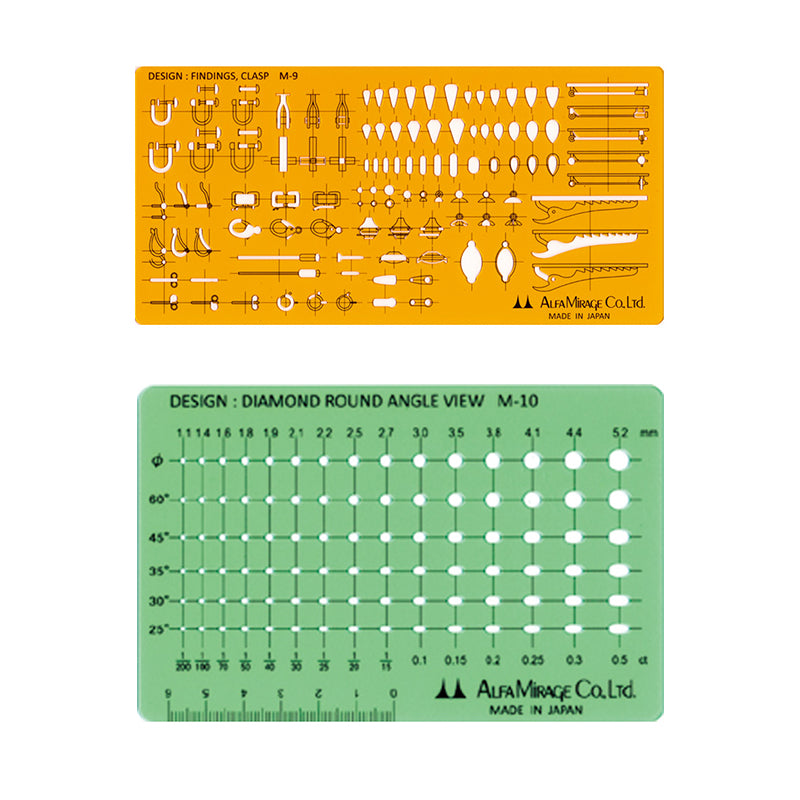

305-137	M-9	Findings, Clasp	15 distinct jewelry finding profiles, clasps, and assembly components.

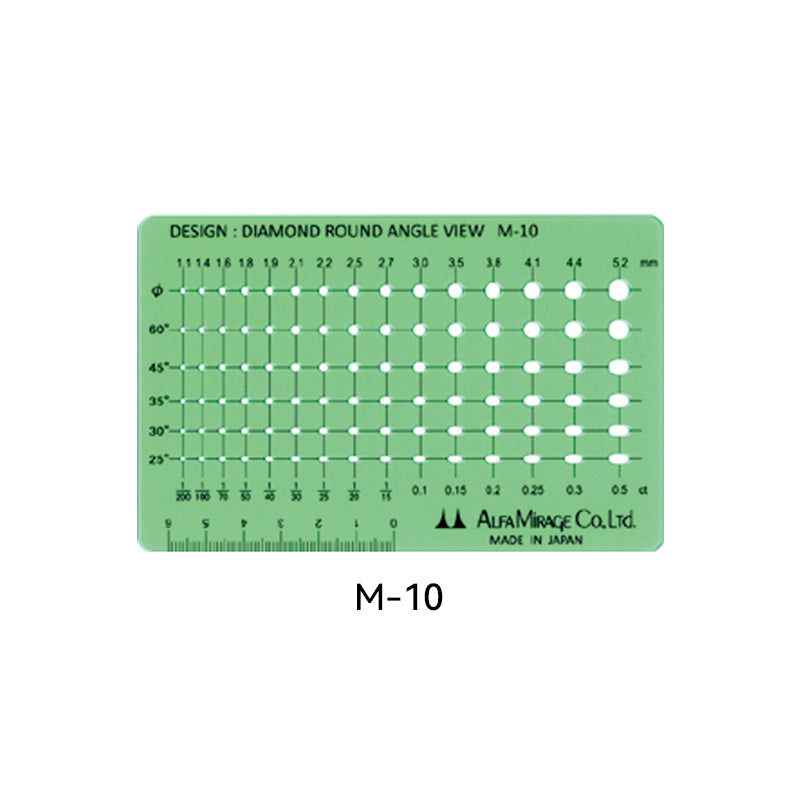

305-138	M-10	Diamond Round Angle View	Angle-view brilliant cuts (1/200 ct to 0.5 ct) across 25° to 60° views.

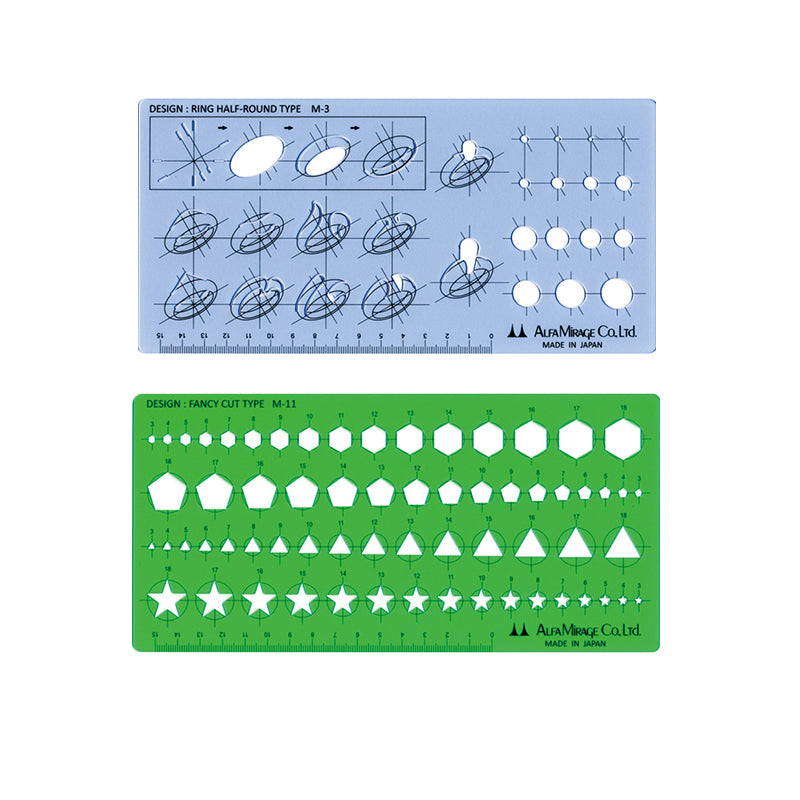

305-139	M-11	Fancy Cut Gemstones	Calibrated cutouts for hexagon, pentagon, triangle, and star fancy cuts.
