RedtSKU: ENJC0005

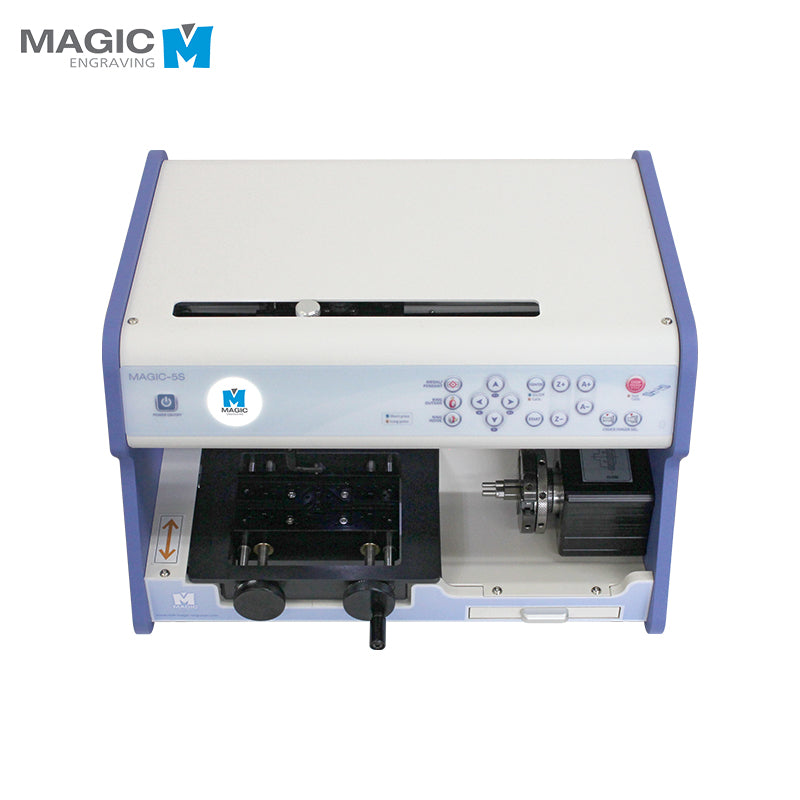

Magic-5S For Flat+Ring Engraving Machine

$5,815.14

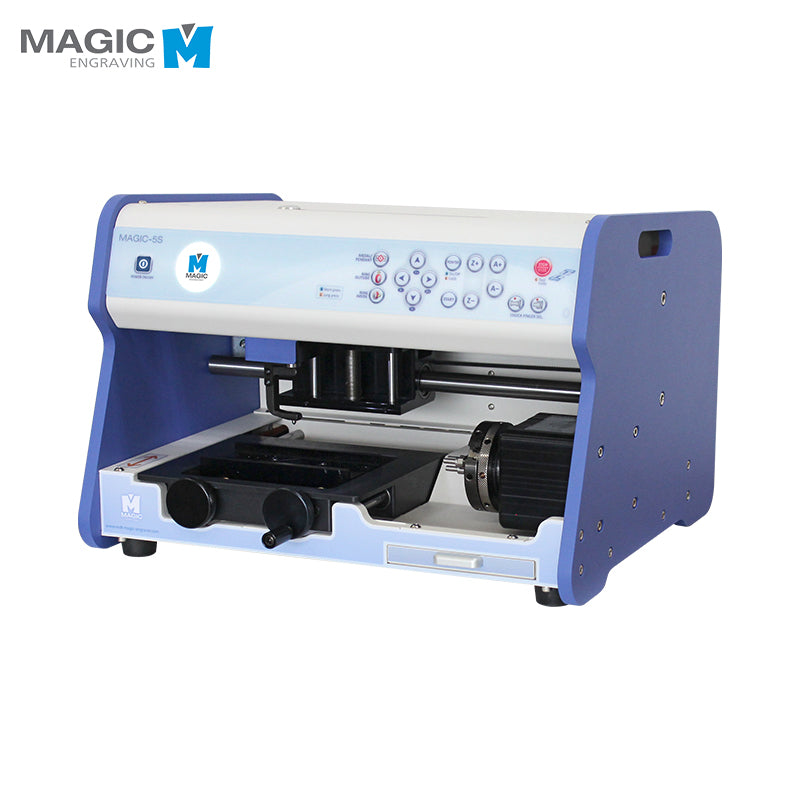

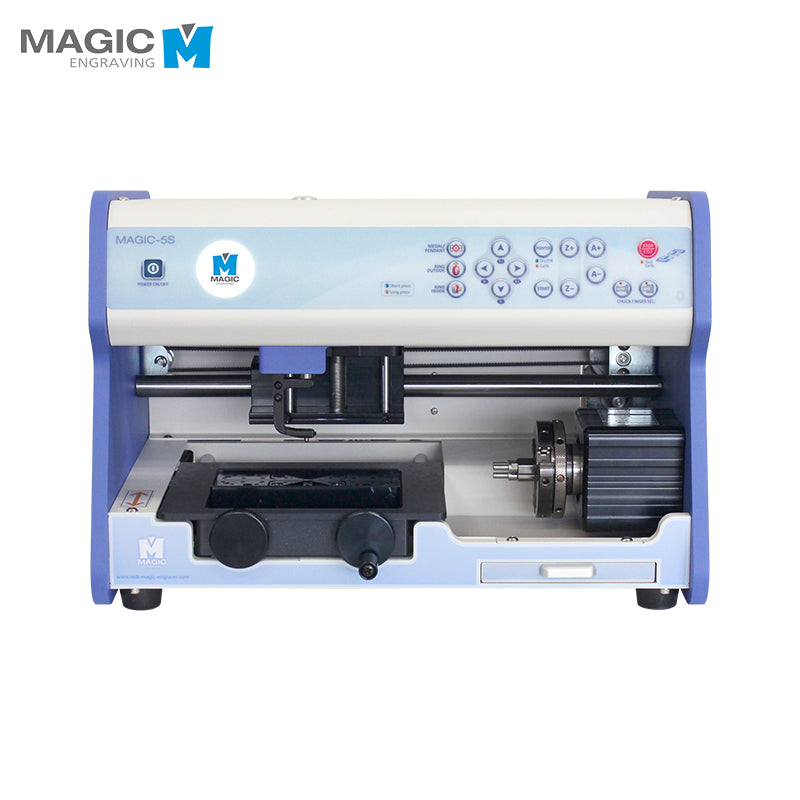

Magic-5S For Flat+Ring Engraving Machine
$5,815.14
Low Stock (5)

Brand Name: Redt

Place of Origin: Korean

Model Number: ENJC0005

Product name: Magic-5S Wireless Controlled Flat Pendants And Ring CNC Engraving Machine

Application: Jewelry Engraving, Pendants And Ring Carving

Size: 388mm(W) x 267mm(H) x 323mm(D)

Weight: 21kg

Voltage: AC 100~240V 50/60Hz

Power consumption: 12w

Tool diameter: 3.175mm

Resolution: (XY) 0.005mm / (Z)0.00125mm / (A)0.028125°

Engraving Area: 120mm(X) x 100mm(Y) x 30mm(Z)

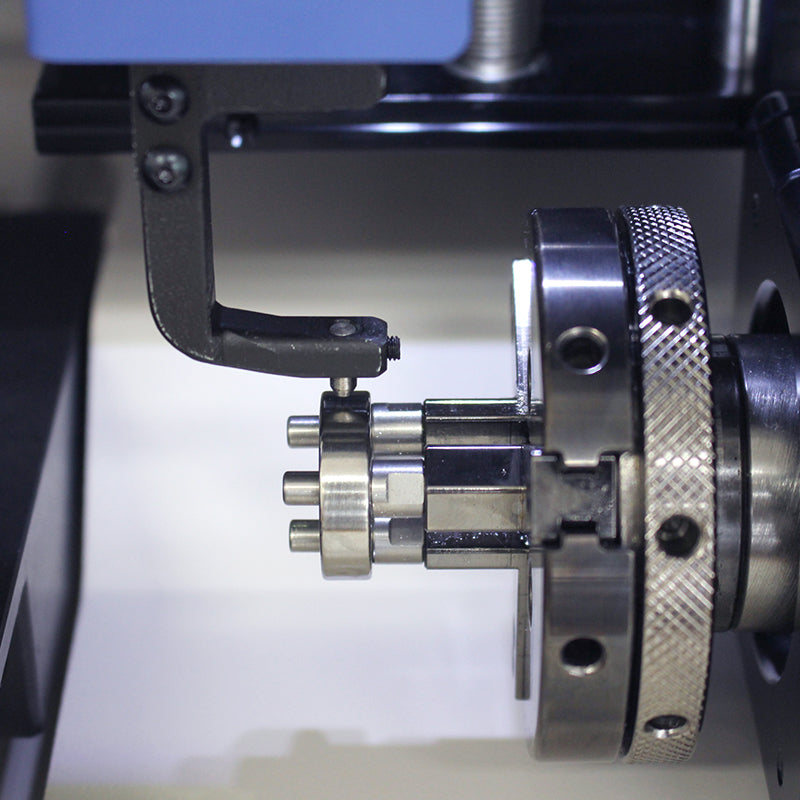

Rotary: Outer Diameter 39mm / Inner Diameter 14~30mm

Bluetooth Standard: V2.1

Transmission Output: +2dBm(Typical)

Frequency: 2.4GHz ISM Band

Communication Distance: 10M

Payment & Security
American Express
Apple Pay
Bancontact
Google Pay
Mastercard
PayPal
Shop Pay
Union Pay
Visa

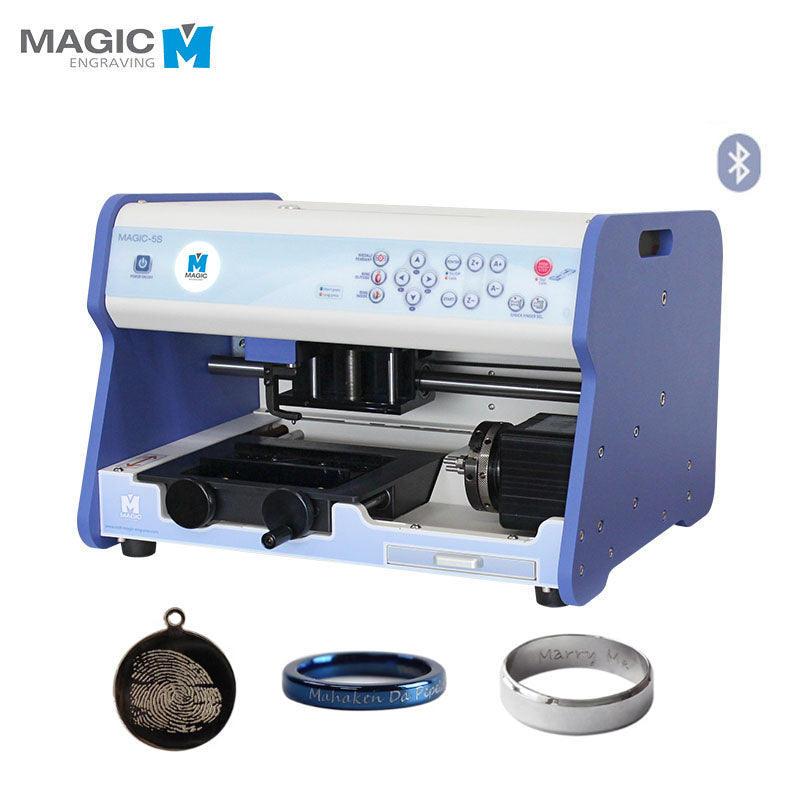

Magic-5S is a multi purpose engraver that engraves pendants and rings both on inner and outer in a fast process. It's light sophisticated, less noise, portable and easy to use for anyoneAlso, it has wireless controlled Blutooth, compatible with tablet.

Feature:

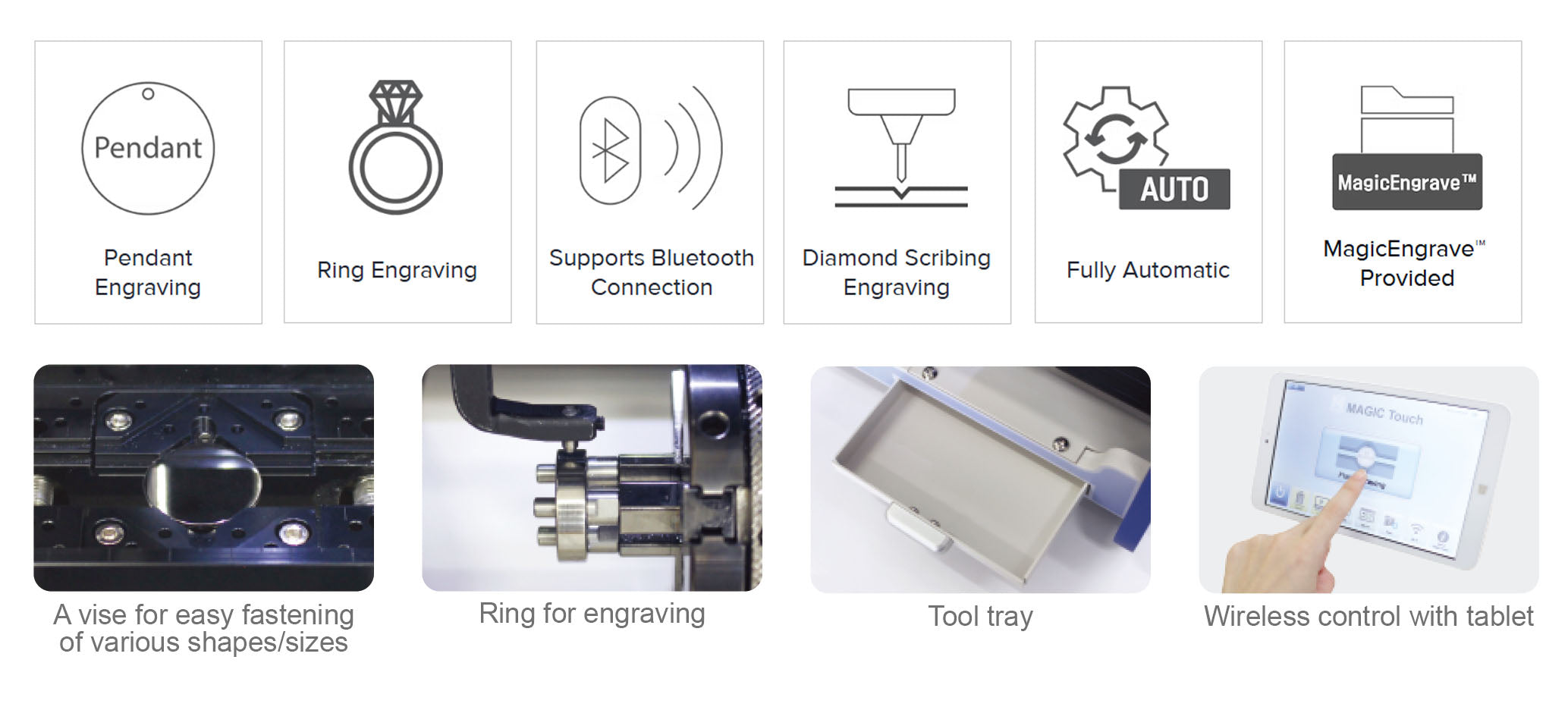

1. Advanced Connectivity & Control

  • Wireless Freedom: Controlled via Bluetooth for a cable-free workspace.

  • Tablet Compatibility: Fully supports touch-interface operation (tablet purchased separately).

  • User-Centric Design: Empowers customers to create and design their own patterns directly on the tablet.

  • Upgraded Software: Powered by the latest Magic Art-5 program for enhanced performance.

2. Versatile Engraving Capabilities

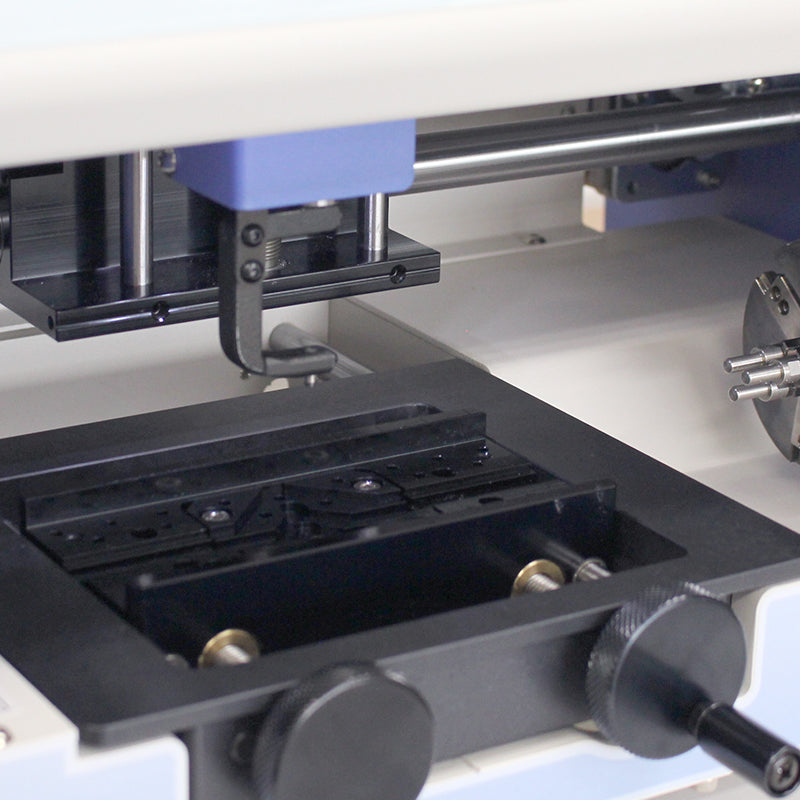

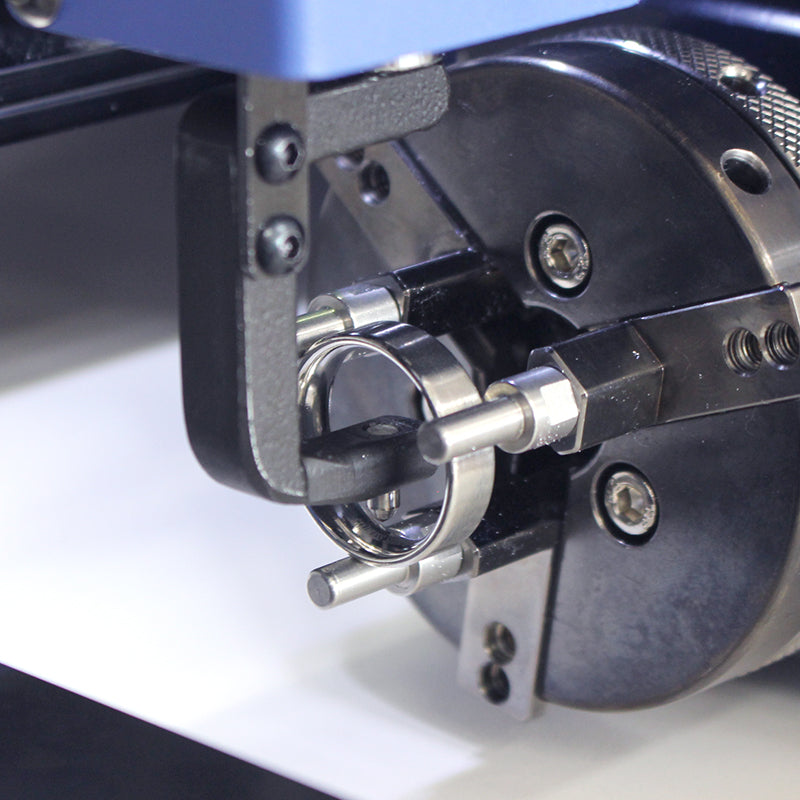

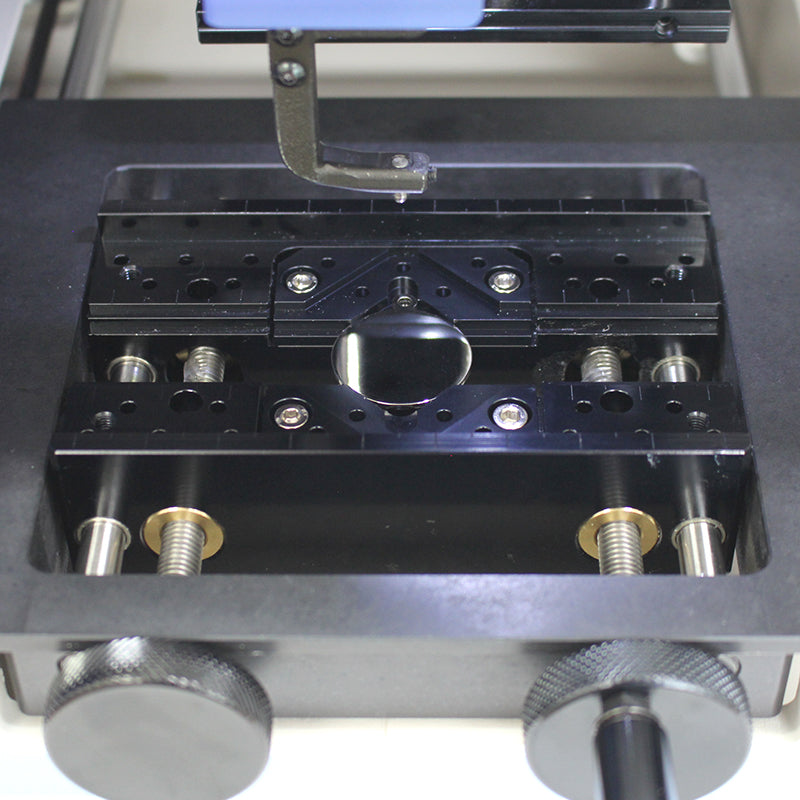

  • Multi-Functionality: Engraves pendants (flat) and rings (both inner and outer diameters).

  • Material Versatility: Supports almost every metal, including gold, silver, bronze, jewelry, and stainless steel.

  • Dimensional Marking: Features a newly applied dimensional marking system for precision.

3. Enhanced Hardware & Portability

  • Lightweight Design: Constructed with an aluminum body for improved portability without sacrificing durability.

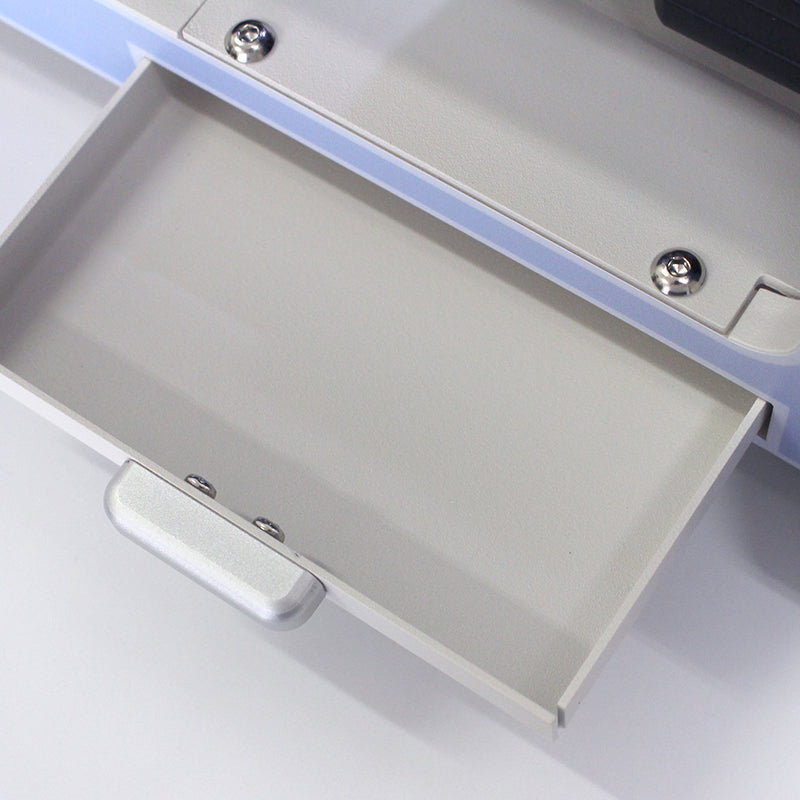

  • Optimized Workspace: Includes a convenient storage tray for organized tool and part management.
  • Internal Components: Equipped with an internal electric switch for a streamlined aesthetic and safety.

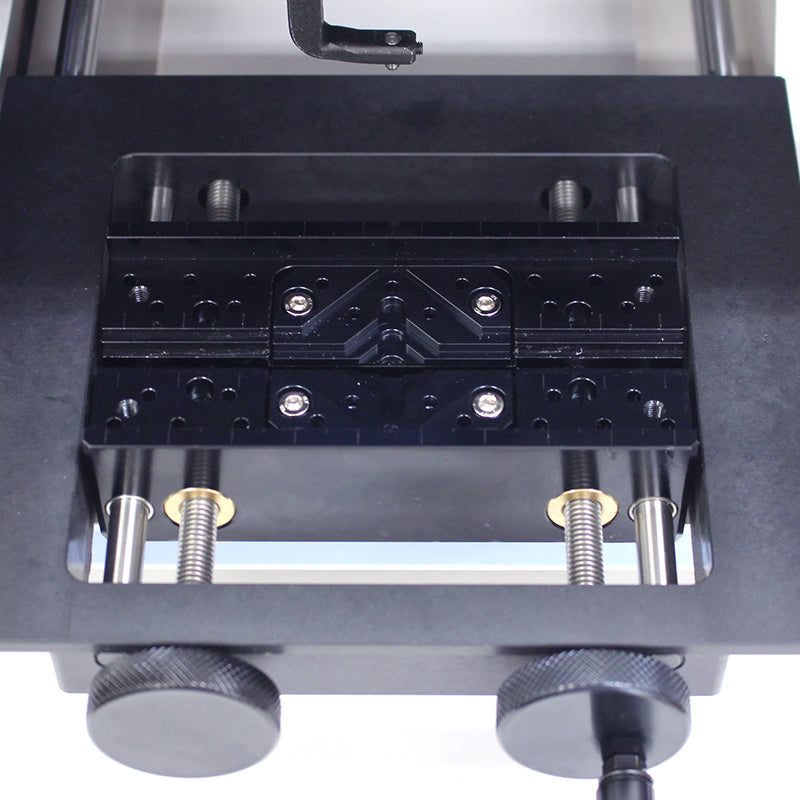

  • Universal Utility: Compatible with various jig types, significantly improving multi-purpose utilization.
