Foredom® P-DP30 Drill Press

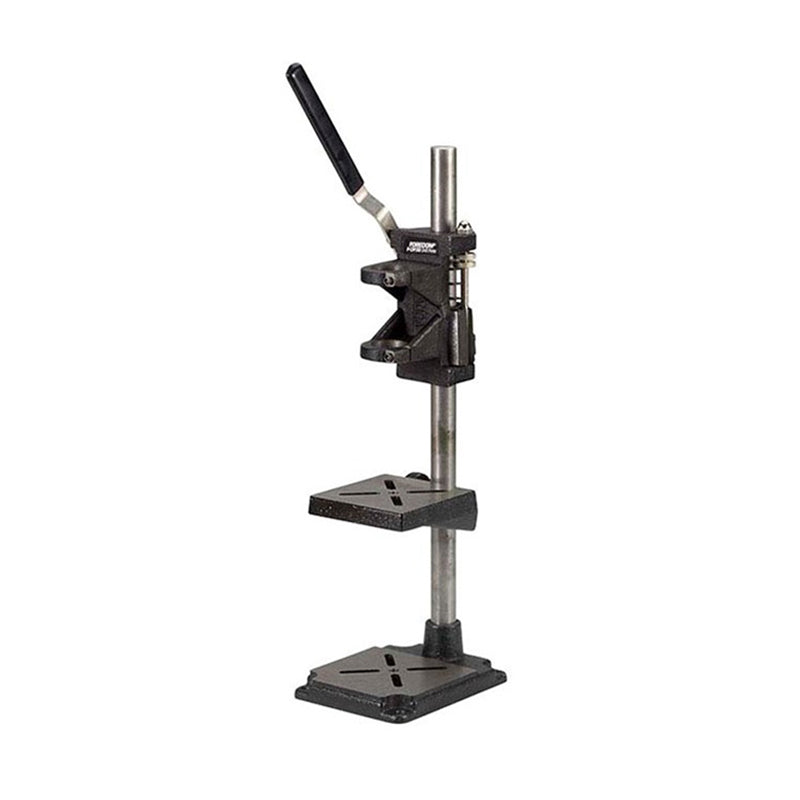

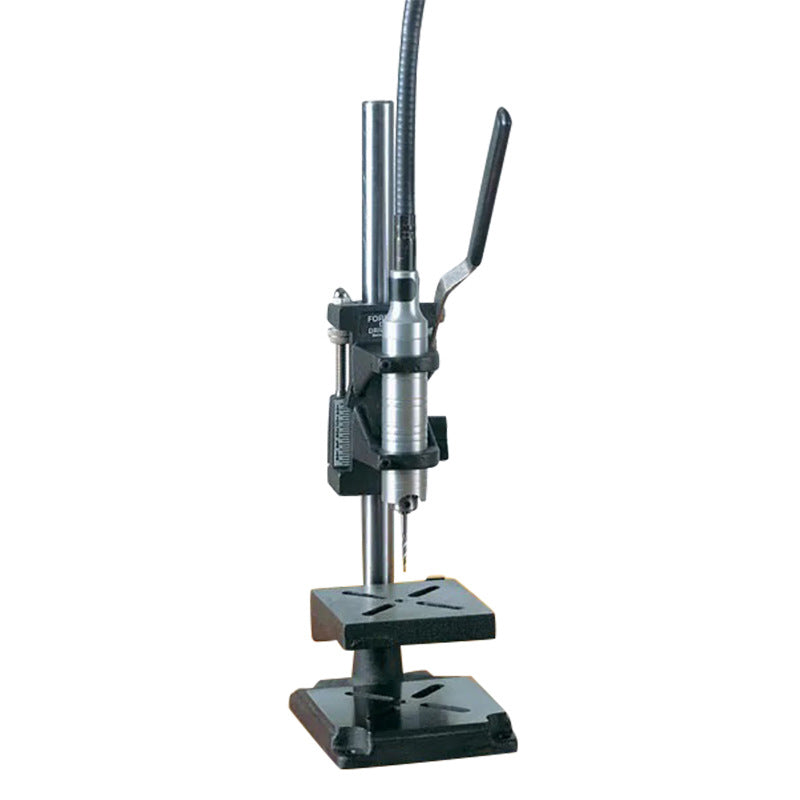

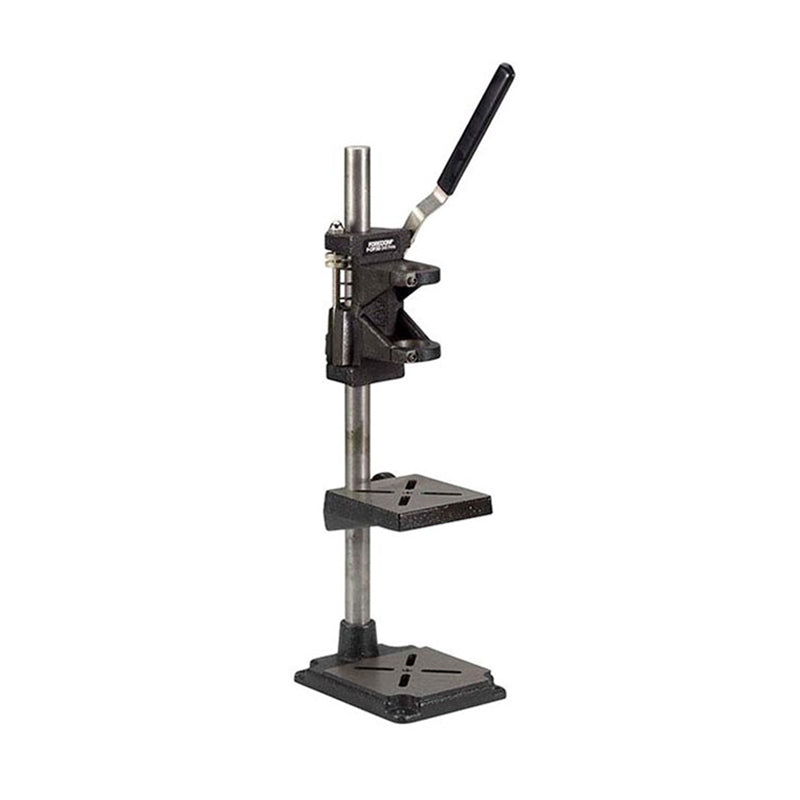

Eliminate hand deflection and drill perfectly square, depth-controlled holes every time. The Foredom® P-DP30 Drill Press Stand converts your compatible Foredom flexible shaft handpiece into a rugged, highly accurate vertical drilling workstation, providing the structural stability and fine leverage needed for delicate bench operations.



Why Choose the Foredom® P-DP30 Drill Press Stand

• Unmatched Drilling Precision: Replaces freehand instability with a rigid, vertical plunge mechanism, ensuring clean, straight, and accurately positioned holes in metal, wood, and synthetics.

• Heavy-Duty All-Metal Stability: Cast from high-strength iron and steel components to absorb vibration and chatter, keeping your workpiece perfectly steady during detailed drilling runs.

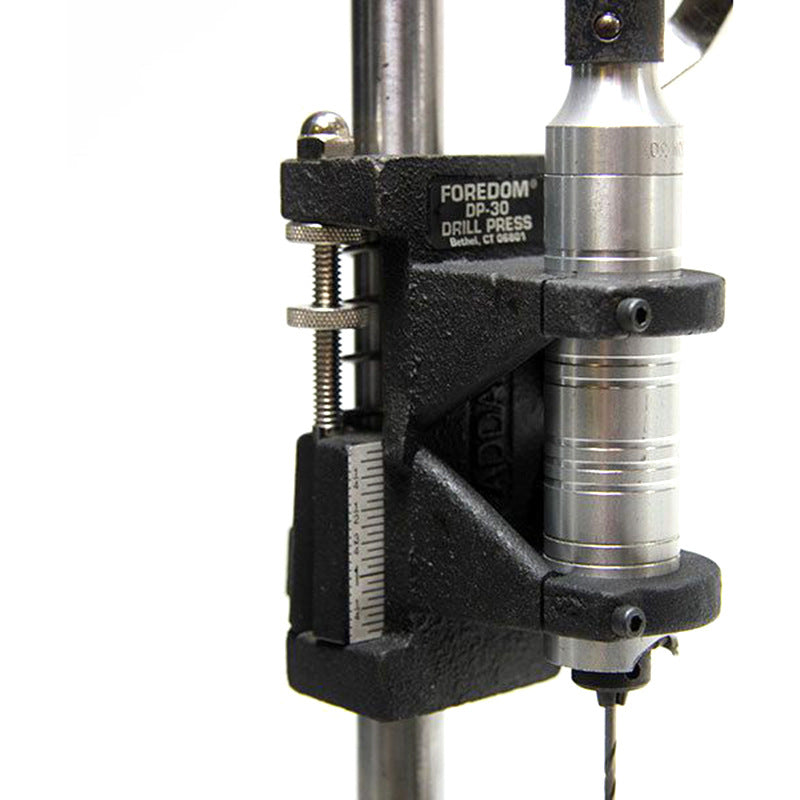

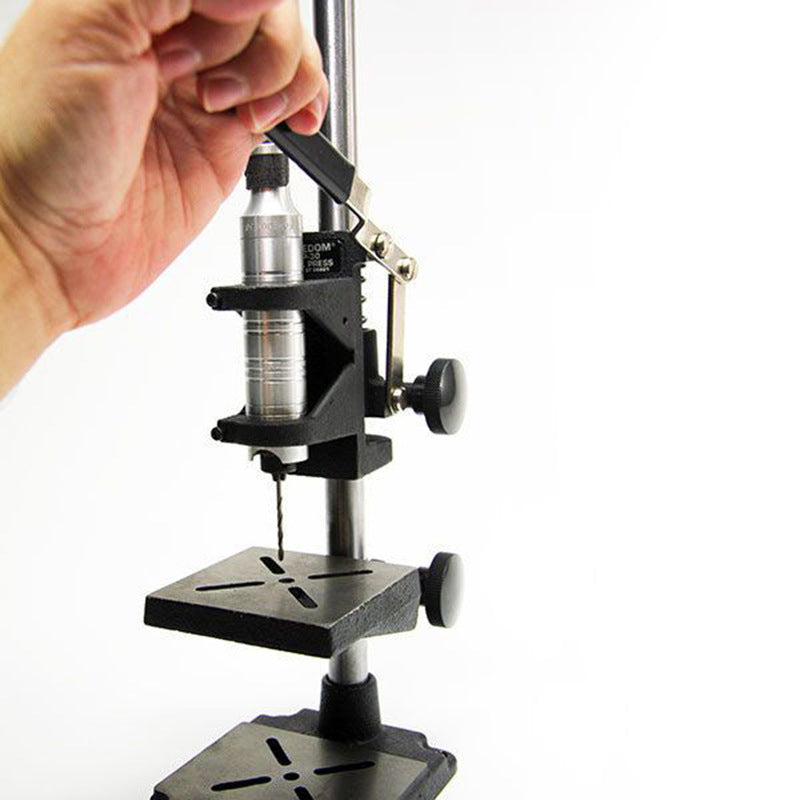

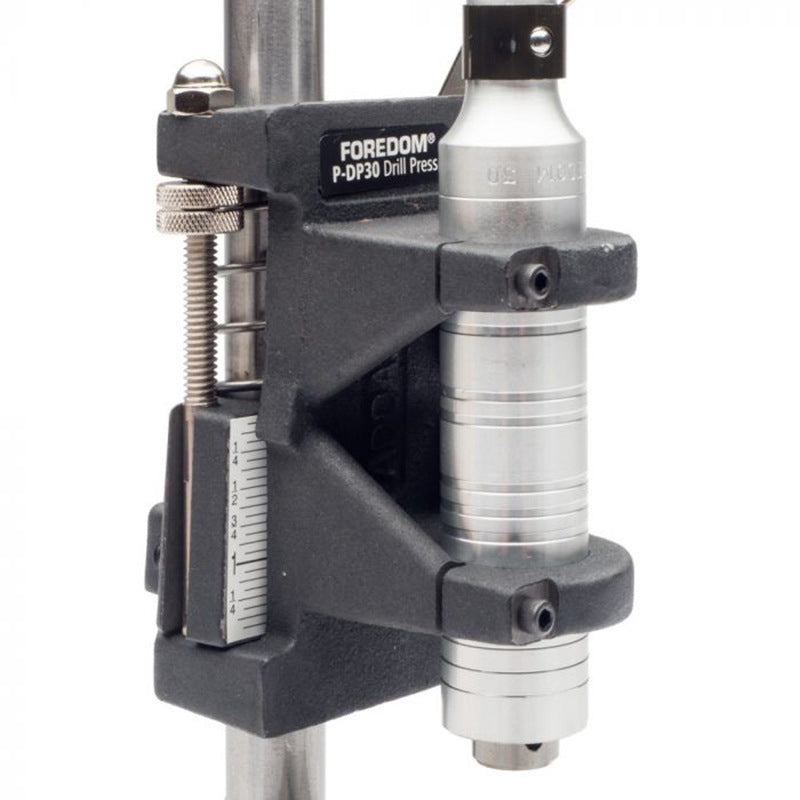

• Fluid 1-1/4″ Spring-Returned Plunge: Features a smooth rack-and-pinion lever mechanism with up to 1-1/4″ stroke length, allowing exact, repeatable depth control with minimal hand effort.

• Flexible Swing-Away Table Design: The intermediate work table moves smoothly along the main column and swings completely out of the way, giving you the clearance needed to drill larger items directly on the base plate.

• Broad Handpiece Compatibility: Specifically calibrated to dock securely with popular Foredom key-tip handpieces, including the H.30, H.30H, H.44, H.44T, and H.44HT.



Technical Specifications

Model Designation	P-DP30
Plunge Stroke Length	Up to 1-1/4″ Lever-Driven Stroke
Throat Depth Capacity	2″ Clearance (Column Center to Handpiece Center)
Structure Material	High-Strength Cast Iron and Steel
Compatible Handpiece Models	Foredom® H.30, H.30H, H.44, H.44T, and H.44HT
Compatible Motor Systems	Universal Flex Shaft Motor Compatibility
Overall Dimensions	17.25 X 7.25 X 10 in
Gross Shipping Weight	4.45 lbs
