Product name
|
ORCA® MAÇARICO ORCA M75 M75CPL KIT
|
|
Includes
|

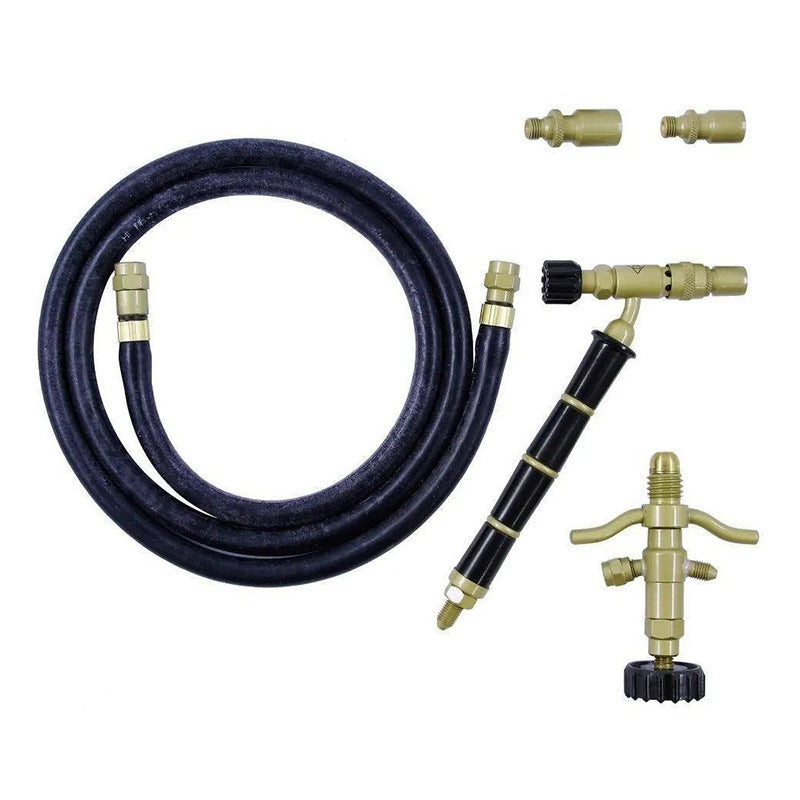

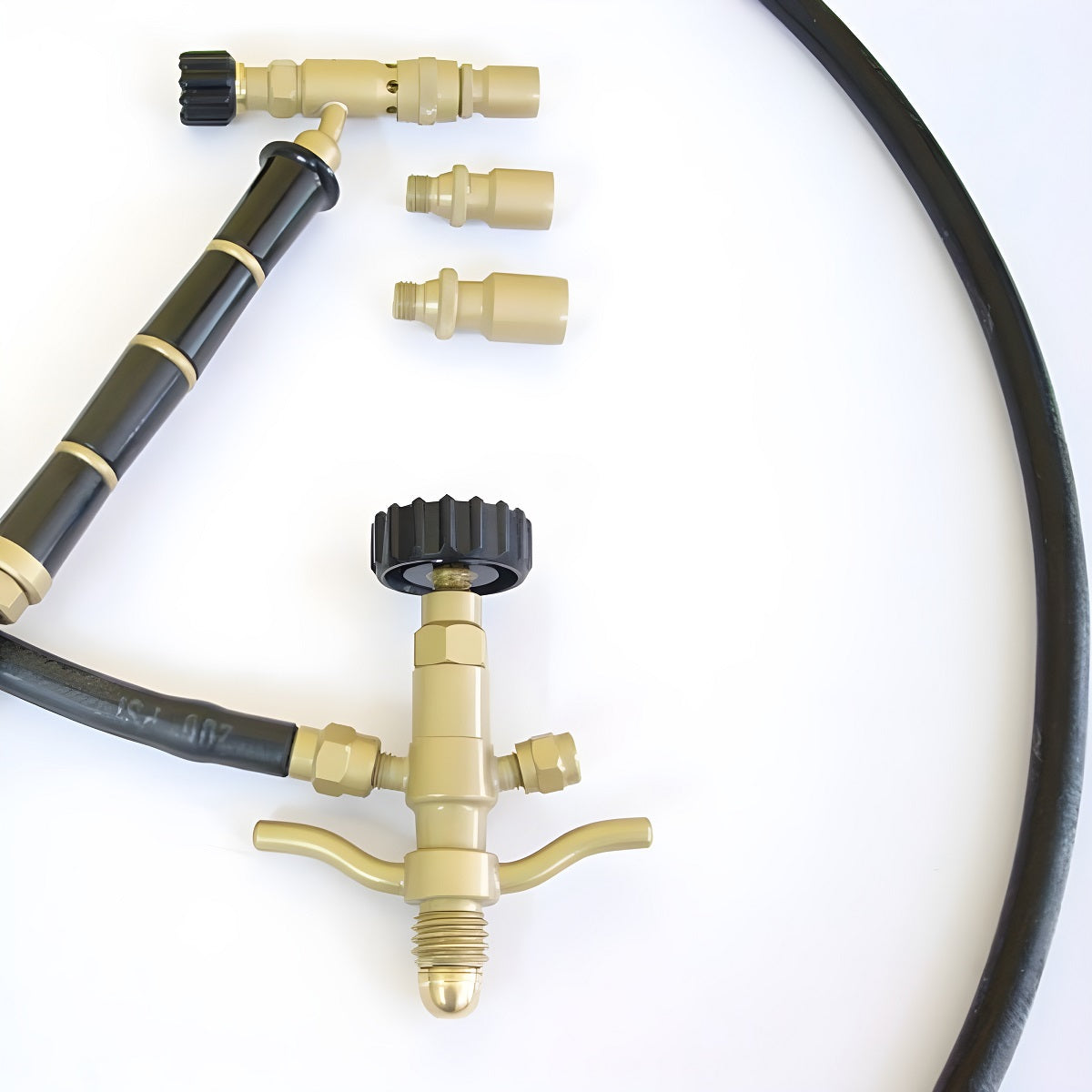

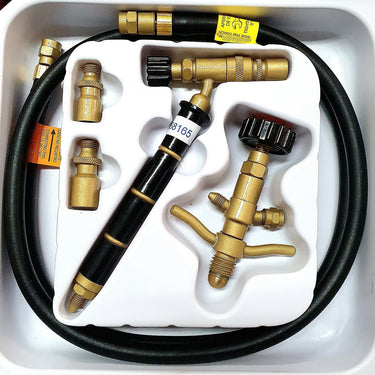

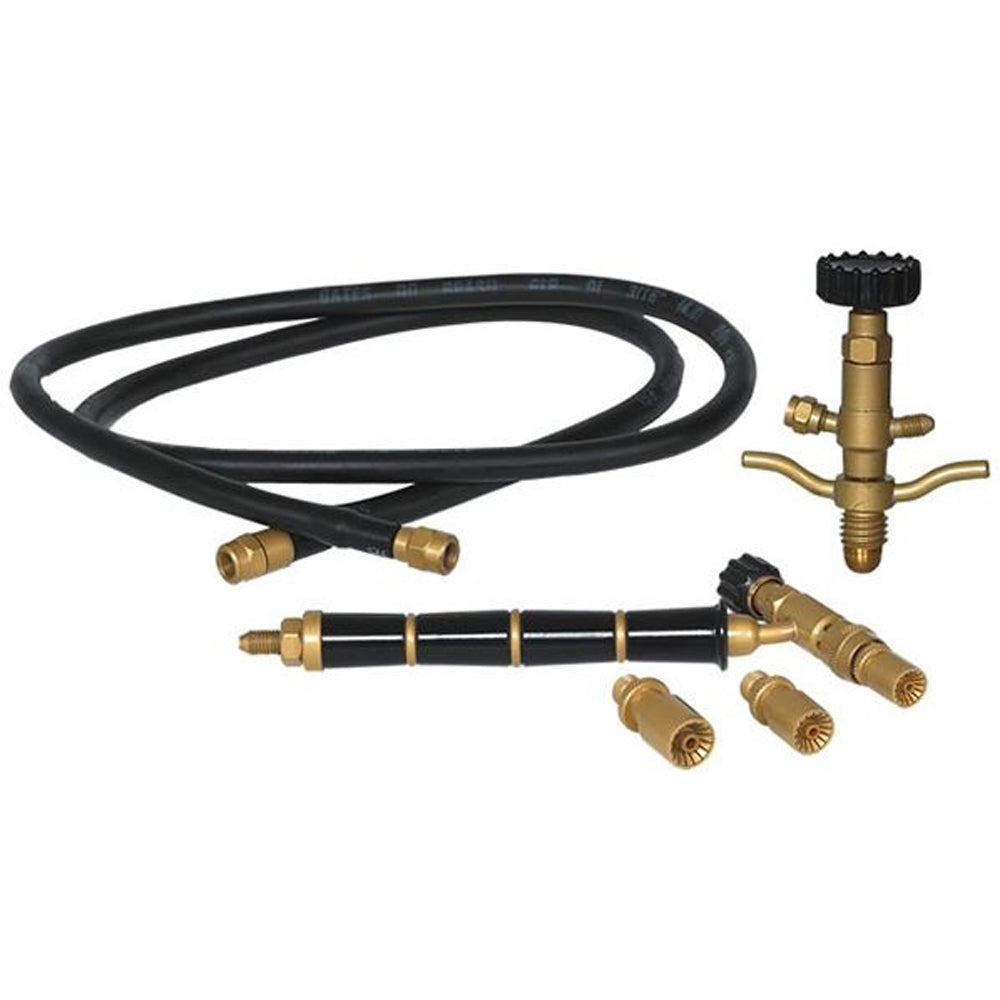

M75 TORCH WITH 3 NOZZLES AND 1.25MT HOSE AND REGULATOR
|
|
Regulator
|
Fits on BBQ style refillable propane tanks and has 2 outputs allowing 2 devices to be run at the same time.
|
|
Item code
|
HWAC00281
|
|
Model
|
M75 CPL
|
|
Brand
|
ORCA
|
|
Place of origin
|
Brazil
|
|
Material
|
Brass + Bakelite
|
|
Nozzle diameter
|
2 mm /2.6 mm /3.8 mm
|
|
Maximum temperature
|
1200 – 1300 ºC
|
The ORCA® MOD-75 is a high-efficiency atmospheric torch designed for jewelers and glass artists. It delivers a powerful 1300°C flame using only LPG (Propane/Butane)—no oxygen tanks or compressors required.
Top Advantages
-
Precision Needle System: Maintains high flame intensity even at the lowest gas settings.
-
Plug & Play: Works with direct pressure. No complex installation or regulators needed.
-
360° Movement: Specialized hose with a swivel connector prevents tangling during work.
-
Professional Build: Solid brass body with a heat-insulated Bakelite handle.

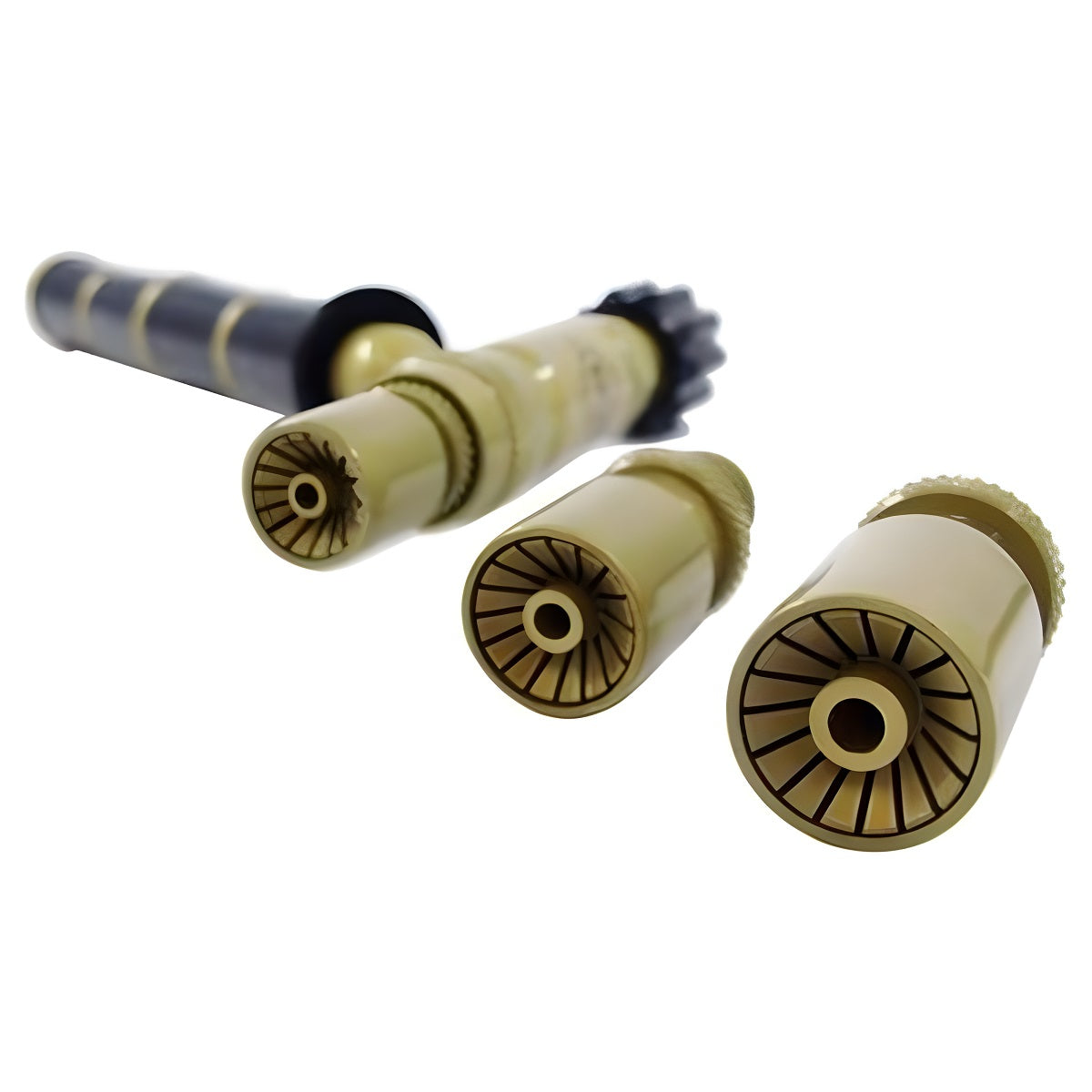

Tip Specifications
| Tip Size | Flame Ø | Max Temp | Ideal For |
| Small | 2.0 mm | 1200°C | Fine chains & delicate tasks |
| Medium | 2.6 mm | 1250°C | Standard repairs & resizing |
| Large | 3.8 mm | 1300°C | Small melts & annealing |
★ NEW: 2-Output Regulator
Run two devices simultaneously from a single BBQ-style propane tank. Fits perfectly with the ORCA system for maximum workshop efficiency.
