Product name
|
ORCA® MAÇARICO ORCA M75 M75CMB KIT
|
|
Includes
|

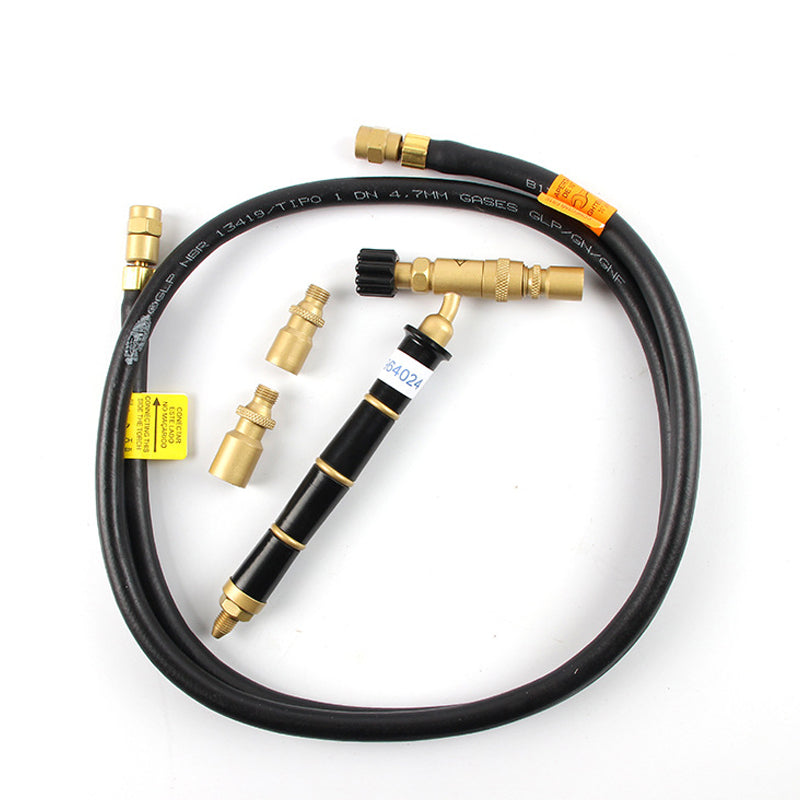

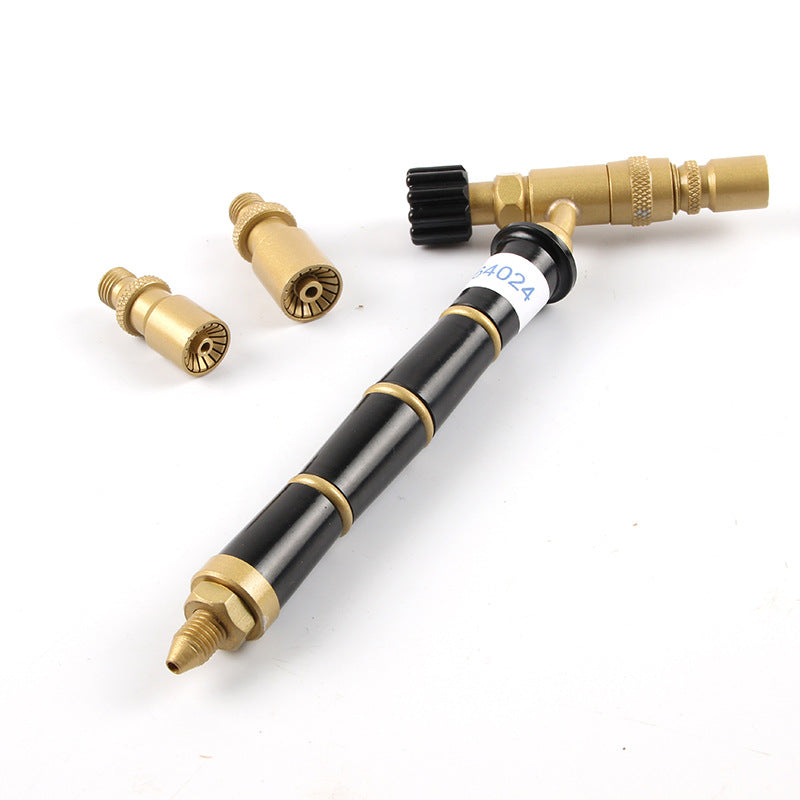

M75 TORCH WITH 3 NOZZLES AND 1.25MT HOSE
|
|
Application
|
Applicable to M75CPL/CPA/CPR/CRD, can be used with Tank Connector RELH2S/RELH1S/REBT1S
|
|
Item code
|
HWAC00285
|
|
Model
|
M75 CMB
|
|
Brand
|
ORCA
|
|
Place of origin
|
Brazil
|
|
Material
|
Brass + Bakelite
|
|
Nozzle diameter
|
2 mm /2.6 mm /3.8 mm
|
|
Maximum temperature
|
1200 – 1300 ºC
|
Key Features
-
Universal Compatibility: The M75 CMB is designed as a versatile core kit. It is fully compatible with various ORCA tank connectors, making it an ideal choice for users who already have a gas setup or need a replacement torch body and hose.
-
No Compressed Air Required: Like all ORCA torches, this atmospheric system draws air naturally. Enjoy a high-heat flame without the need for bulky oxygen tanks or air compressors.
- Precision Flame Control: Features ORCA’s exclusive needle-injector assembly. This system allows you to maintain high gas velocity even at low flow, giving you a sharp, intense flame for the most delicate jewelry soldering.
- Professional 1.25m Hose: Comes with a specialized 1.25-meter LPG hose featuring a rotatable connection. This ensures your torch moves freely without the hose kinking or tangling during intricate work.
- Built for the Workshop: The solid brass body provides excellent impact resistance, while the ergonomic Bakelite handle offers superior thermal insulation for comfortable, long-term use.

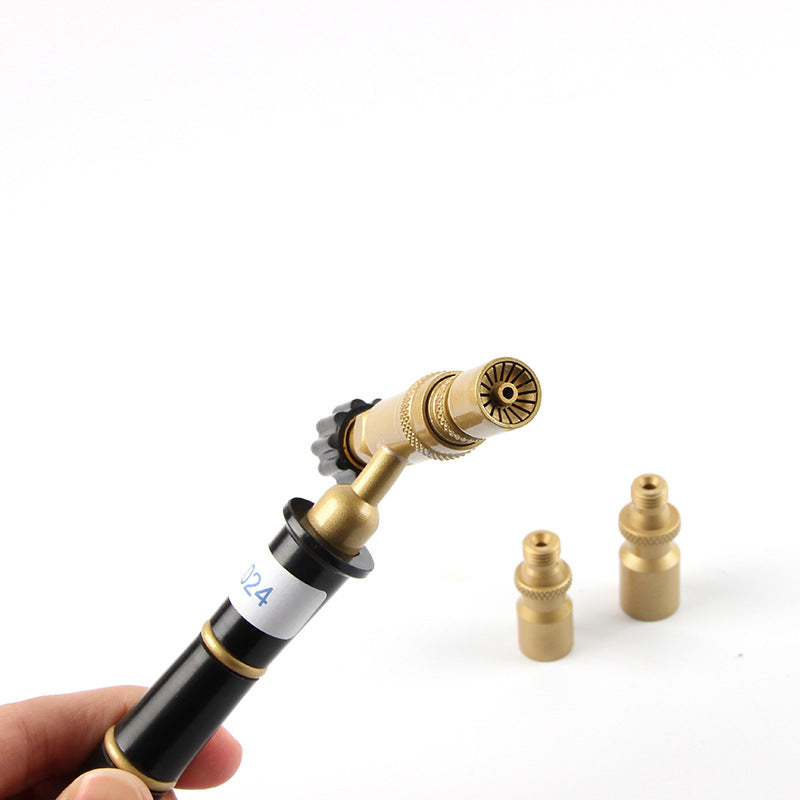

Tip & Flame Selection
| Tip Size | Flame Ø | Flame Length | Max Temp | Best For |
| Small | 2.0 mm | 15 – 50 mm | 1200 ºC | Fine chains & micro-soldering |
| Medium | 2.6 mm | 20 – 60 mm | 1250 ºC | General soldering & ring resizing |
| Large | 3.8 mm | 25 – 70 mm | 1300 ºC | Small casting & heavy annealing |
