Product name
|
ORCA® MAÇARICO ORCA M75 M75CPA KIT
|
|
Includes
|

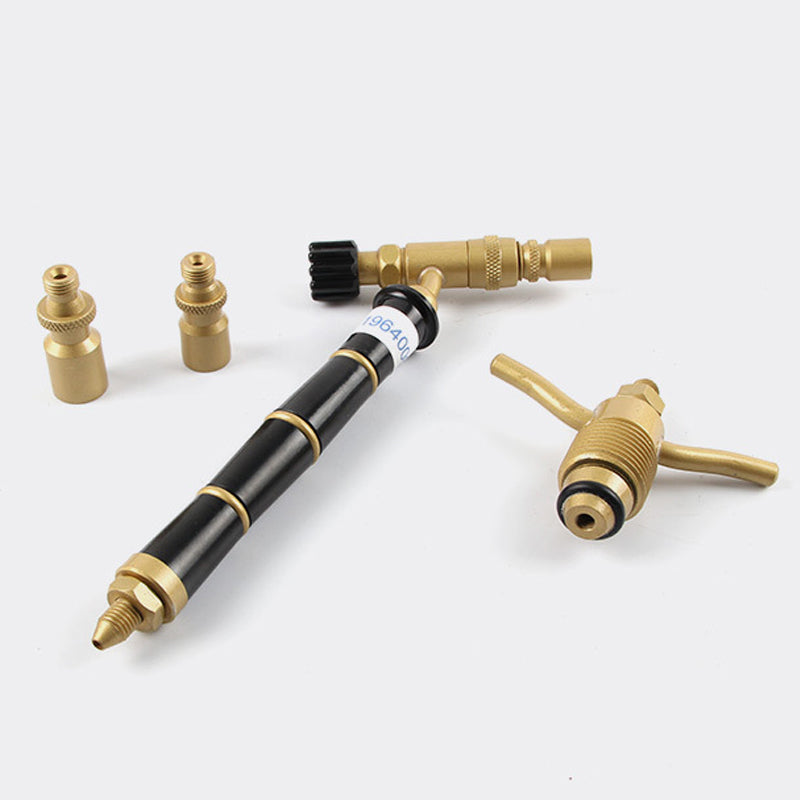

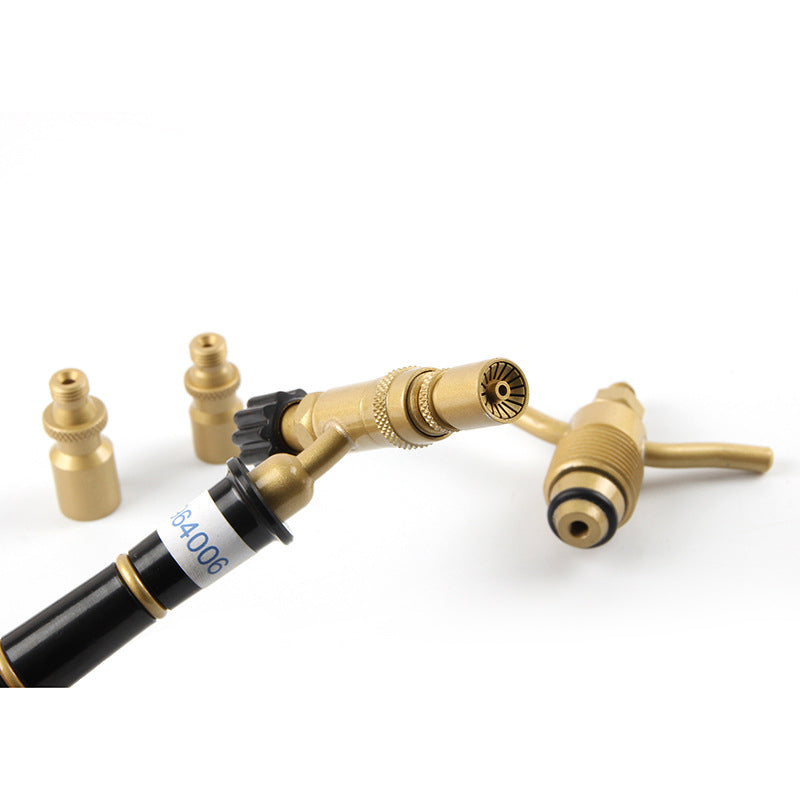

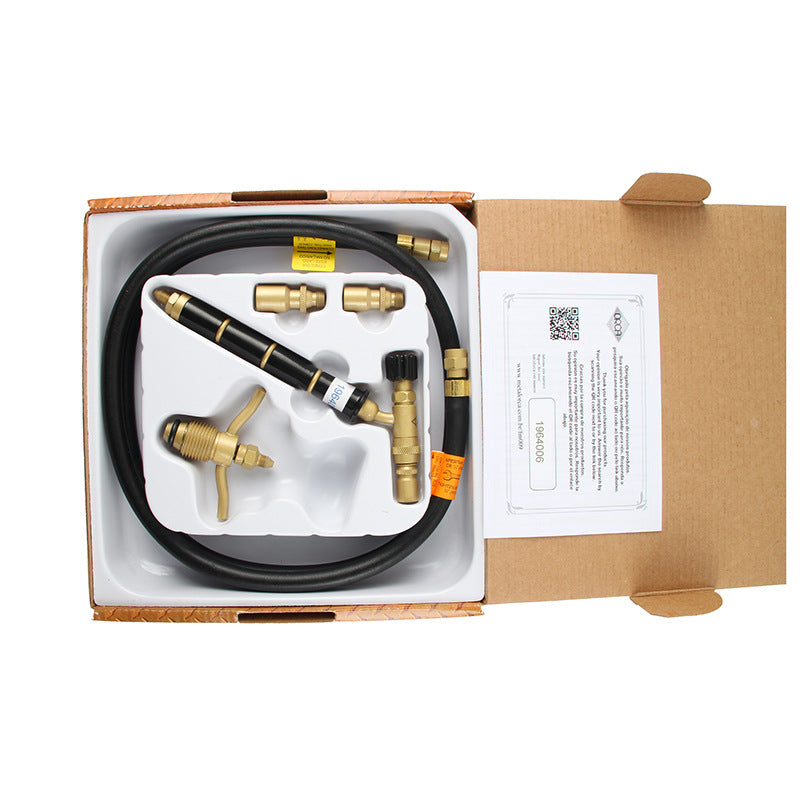

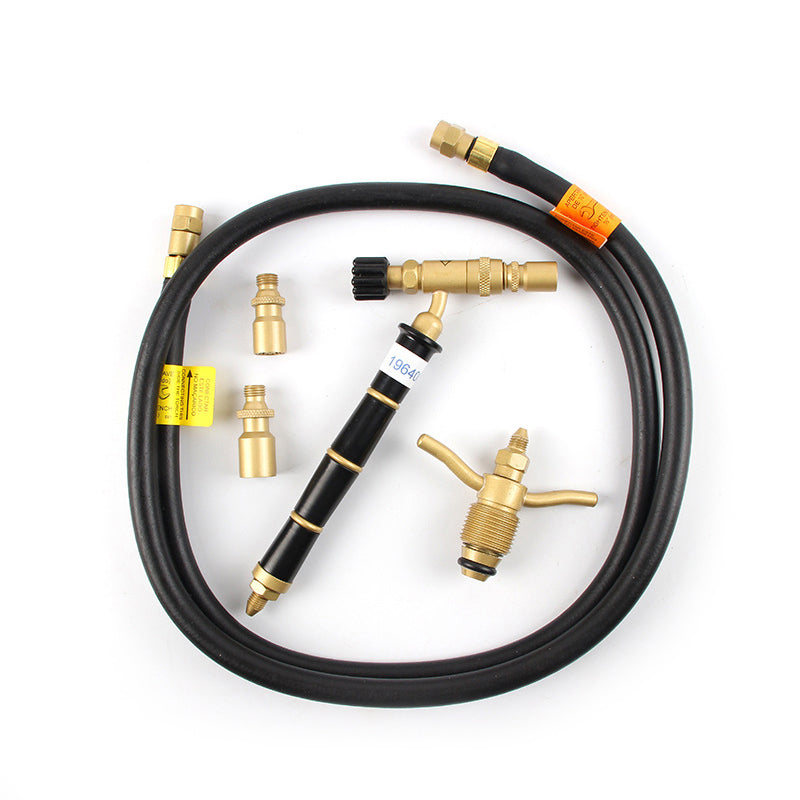

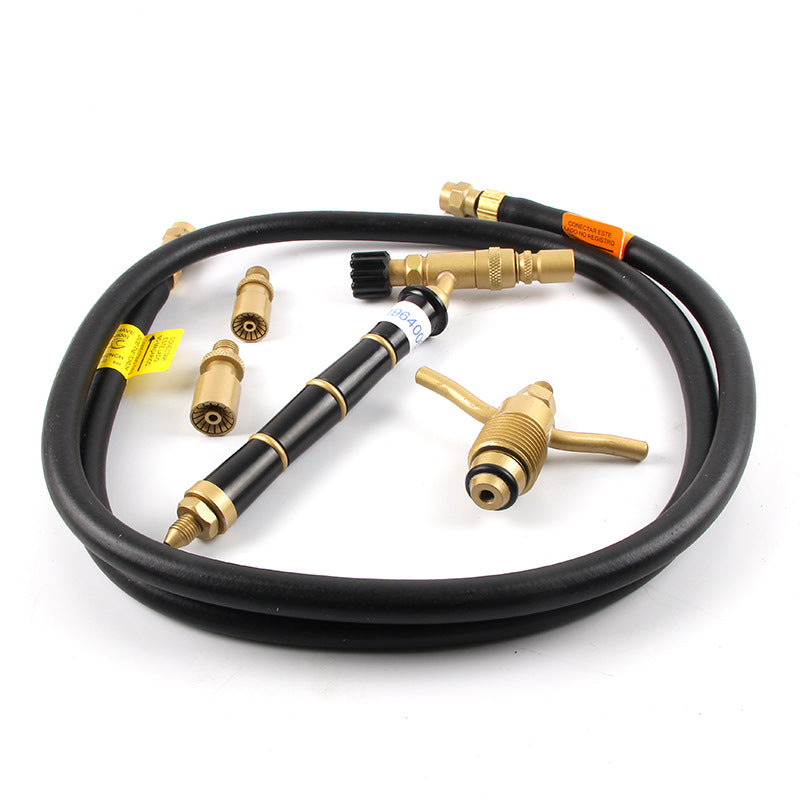

M75 TORCH WITH 3 NOZZLES AND 1.25MT HOSE AND REGULATOR
|
|
Regulator
|
Fits on BBQ style refillable propane tanks
|
|
Item code
|
HWAC00282
|
|
Model
|
M75 CPA
|
|
Brand
|
ORCA
|
|
Place of origin
|
Brazil
|
|
Material
|
Brass + Bakelite
|
|
Nozzle diameter
|
2 mm /2.6 mm /3.8 mm
|
|
Maximum temperature
|
1200 – 1300 ºC
|
Key Features
-
No Compressed Air Needed: Ideal for portable work and easy storage. This atmospheric torch draws air naturally, saving you the cost of oxygen tanks or compressors.
-
Exclusive Needle-Injector System: Unlike conventional torches, the ORCA system maintains high gas exit speeds even at low flow. This allows for a tiny but intense flame perfect for precise jewelry work.
-
High Thermal Efficiency: Specifically designed to maximize the calorific potential of LPG (Propane), making the heating of work materials quick and consistent.
-
Anti-Tangle Maneuverability: The included 1.25m hose features a rotatable terminal, giving you total freedom of movement without the hose twisting or kinking.
-
Built to Last: Constructed with a solid brass body for impact resistance and a Bakelite handle for superior thermal insulation.
Tip & Flame Selection
| Tip Size | Flame Ø | Flame Length | Max Temp | Best For |
| Small | 2.0 mm | 15 – 50 mm | 1200 ºC | Fine chains & delicate soldering |
| Medium | 2.6 mm | 20 – 60 mm | 1250 ºC | Standard repairs & ring resizing |
| Large | 3.8 mm | 25 – 70 mm | 1300 ºC | Small melts & annealing |
