Product name
|
ORCA® MAÇARICO ORCA M75 M75CPR KIT
|
|
Includes
|

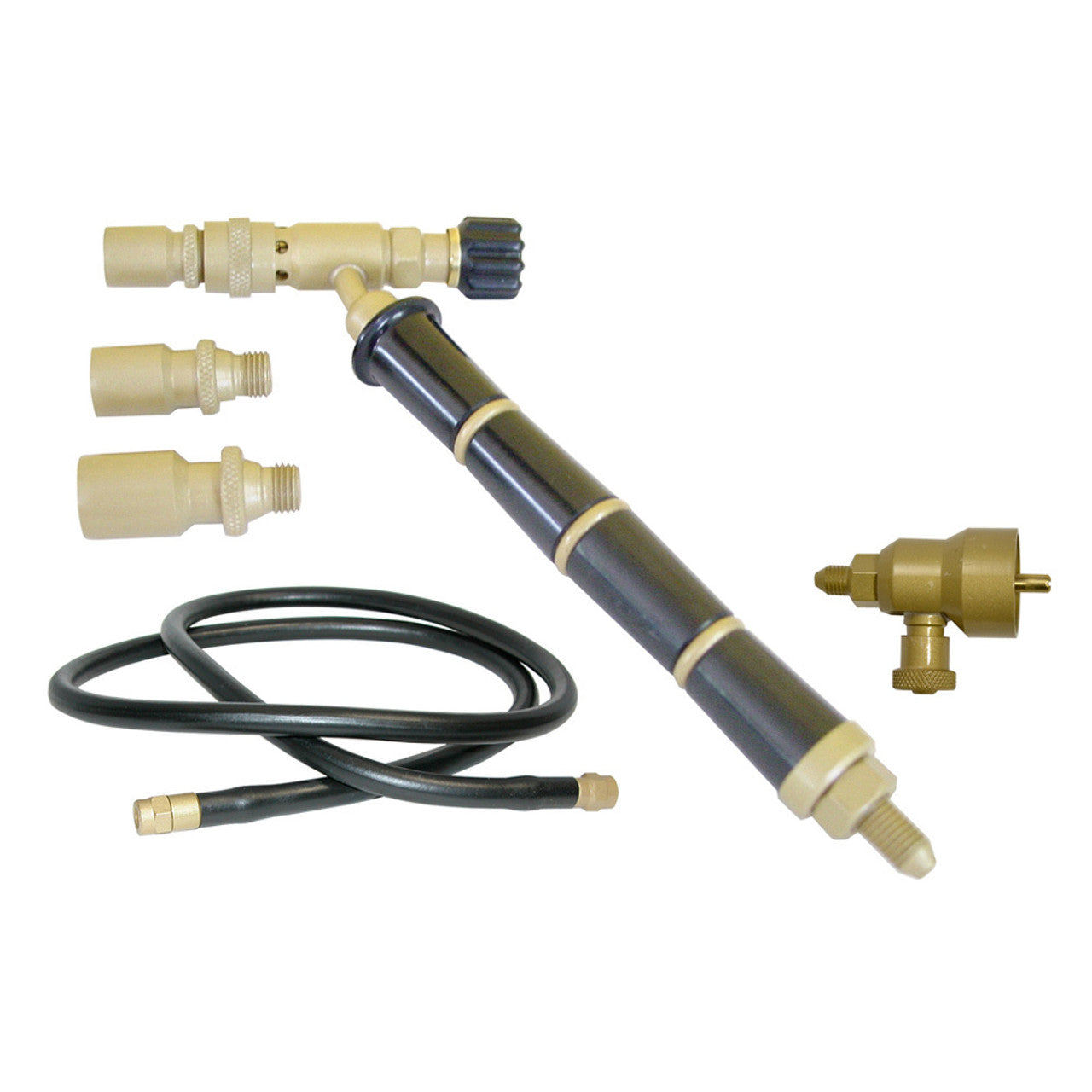

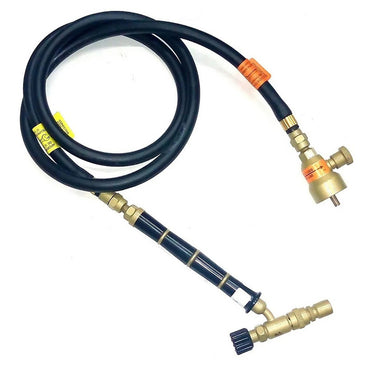

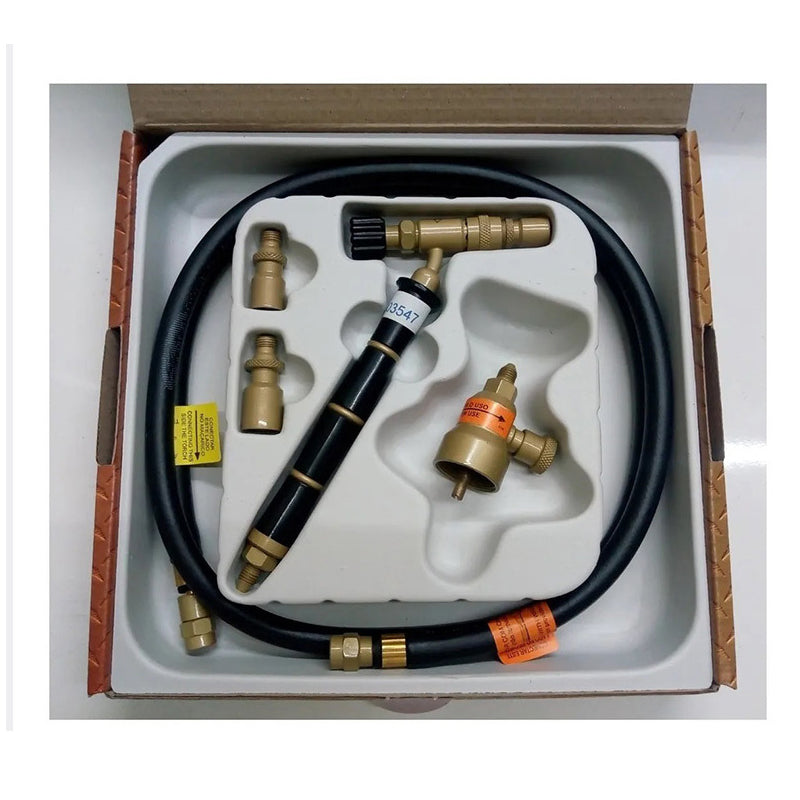

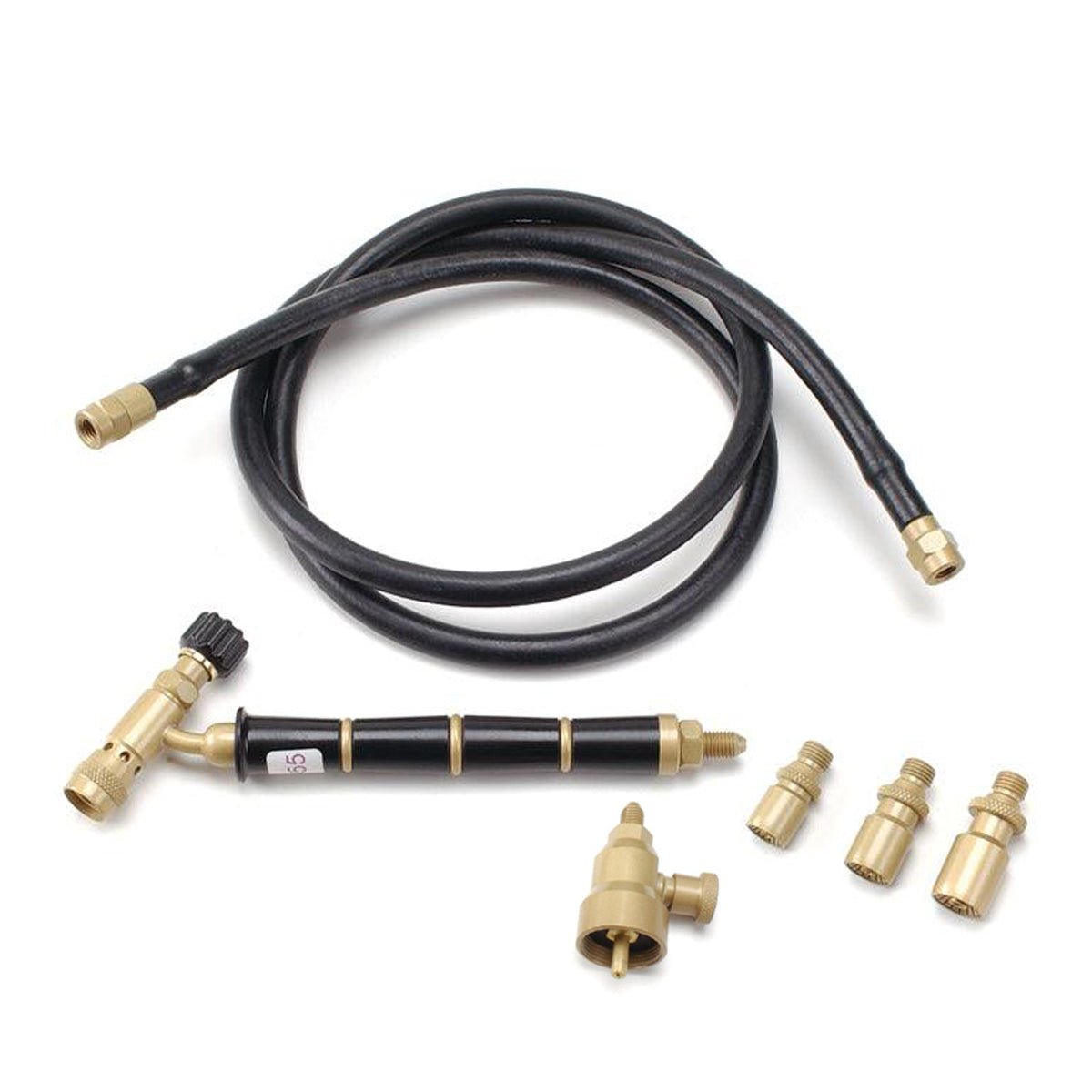

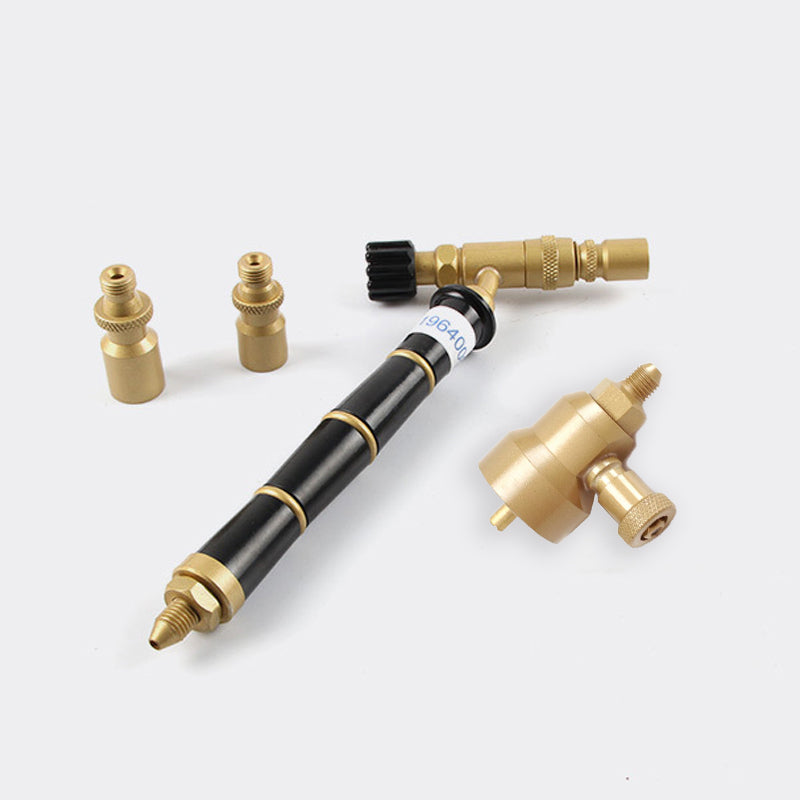

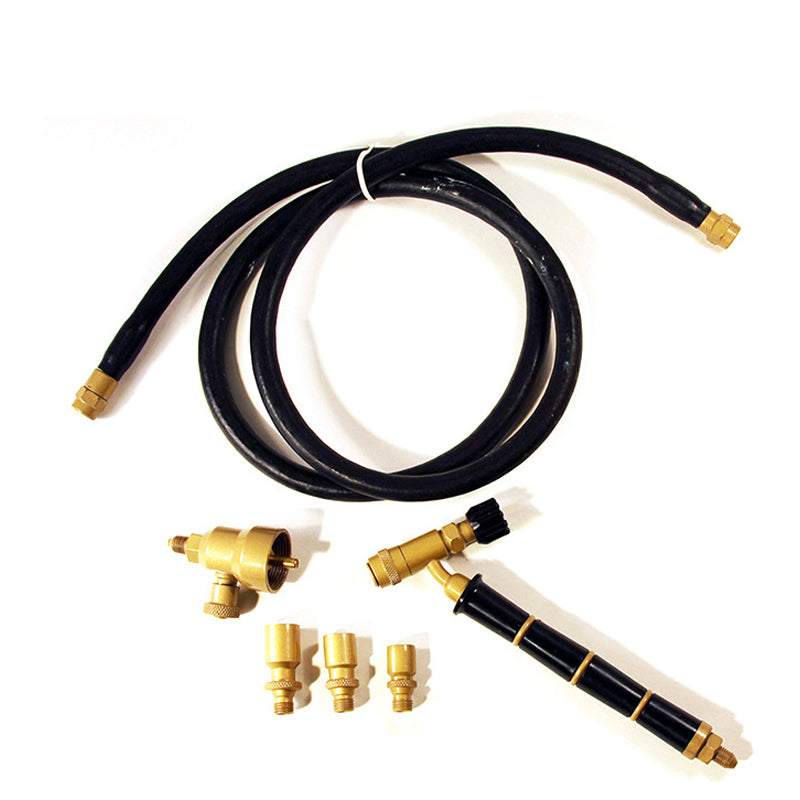

M75 TORCH WITH 3 NOZZLES AND 1.25MT HOSE AND REGULATOR
|
|

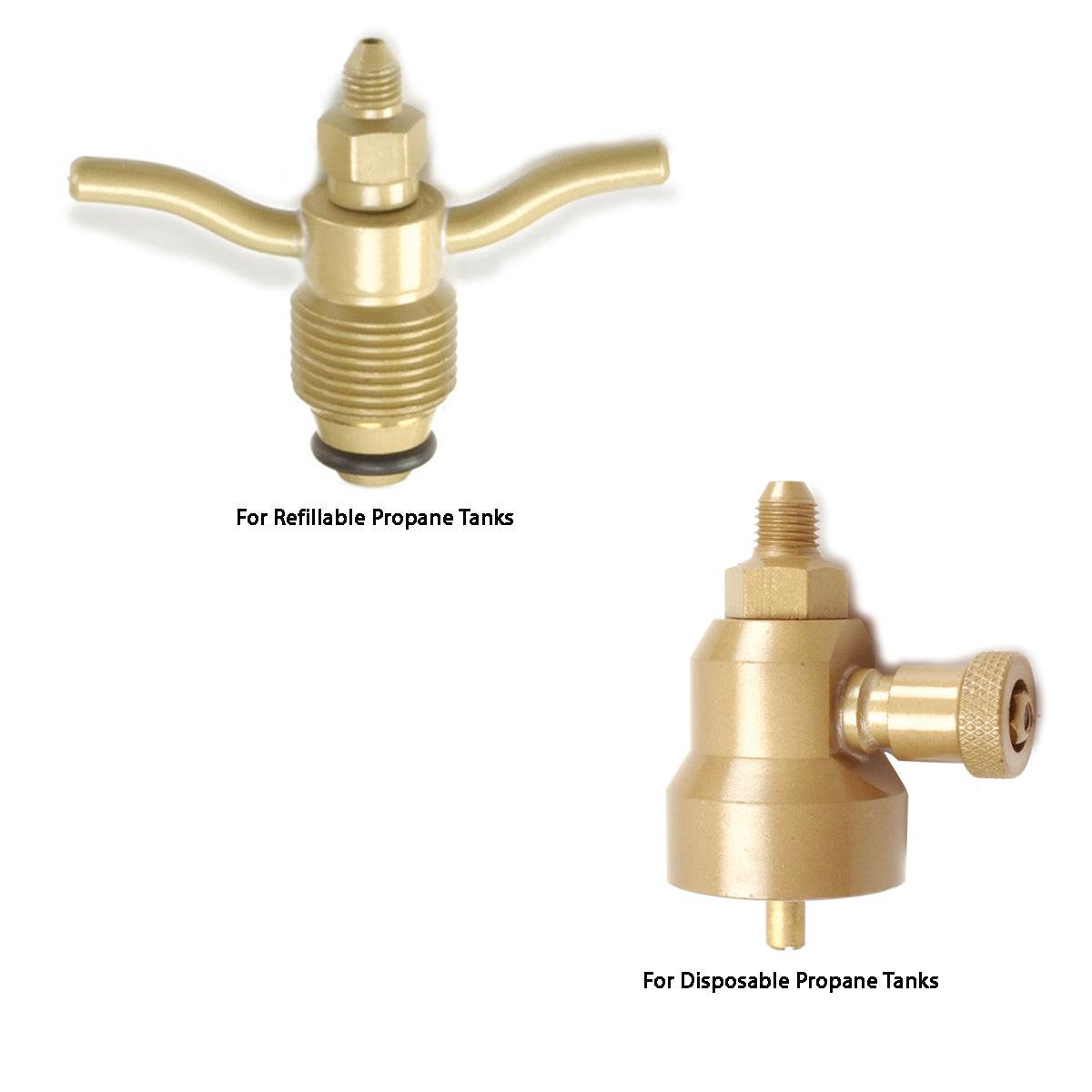

Regulator
|
Fits on Disposable Propane Tanks
|
|
Item code
|
HWAC00283
|
|
Model
|
M75 CPR
|
|
Brand
|
ORCA
|
|
Place of origin
|
Brazil
|
|
Material
|
Brass + Bakelite
|
|
Nozzle diameter
|
2 mm /2.6 mm /3.8 mm
|
|
Maximum temperature
|
1200 – 1300 ºC
|
Key Features
-
Designed for Portability: The M75 CPR kit comes with a regulator specifically designed for small disposable propane tanks. It is the perfect choice for jewelers who need a high-performance setup that is easy to transport and store.
- No Compressed Air Required: This atmospheric torch naturally draws in oxygen from the air, eliminating the need for bulky oxygen cylinders or noisy compressors.
- Patented Needle-Injector System: Achieves a concentrated and intense flame even at the lowest gas settings. This allows for extreme precision, making it ideal for delicate soldering without losing flame velocity.
- Enhanced Freedom of Movement: Includes a 1.25m specialized LPG hose with a rotatable connection terminal. The hose moves with you, preventing kinks and ensuring comfort during long working sessions.
- Premium Materials: Features a heavy-duty brass body and a Bakelite handle for superior heat insulation and impact resistance.
Tip & Flame Selection
| Tip Size | Flame Ø | Flame Length | Max Temp | Best For |
| Small | 2.0 mm | 15 – 50 mm | 1200 ºC | Fine chains & micro-soldering |
| Medium | 2.6 mm | 20 – 60 mm | 1250 ºC | Standard ring sizing & jewelry repair |
| Large | 3.8 mm | 25 – 70 mm | 1300 ºC | Small casting & annealing |
