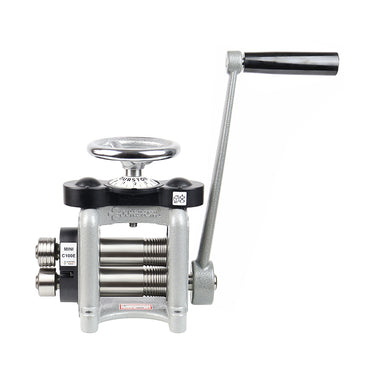

Durston® Mini Rolling Mills C100E

Technical Specifications

Parameter Metric	Certified Factory Specification
Product Model	Durston® Mini C100E (Combination Type)
Roller Dimensions	100mm Length x 45mm Diameter
Maximum Sheet Capacity	5mm Thickness
Maximum Wire Capacity	6.5mm Diameter
Number of Wire Grooves	9 Progressive Square Grooves
Drive Architecture	High-Torque Direct Drive System
Bearing System	Sealed Self-Lubricating (Maintenance-Free)
Machine Footprint	280mm (Length) $\times$ 170mm (Width) $\times$ 270mm (Height)
Net Equipment Weight	15.5 kg

The Durston® Mini C100E is a professional, high-performance benchtop combination rolling mill engineered specifically for independent jewelry makers and boutique metalsmiths. Positioned as the definitive, expanded version of the entry-level Mini 80 model, the C100E provides 25% more milling area to handle broader sheet projects without breaking your studio budget.

By combining Durston’s legendary metallurgical build quality with a highly efficient design, this economic powerhouse allows individual creators to reduce metal sheet thickness, draw down custom wire sizes, and shape half-round profiles with total structural accuracy and minimal physical effort.

Key Product Features

• Expanded 100mm Milling Width: Features high-quality induction-hardened rollers providing a wide combination workspace that accommodates broader sheets compared to smaller bench mills.

• One-Piece Cast Iron Frame Construction: Forged from a solid single-cast iron housing for maximum rigidity, entirely eliminating structural flexing or frame twist under high crushing pressures.

• High-Efficiency Direct Drive System: Built with an optimized direct drive assembly paired with an extended hand crank handle to deliver smooth, effortless manual reduction.

• Maintenance-Free Bearing Assemblies: Equipped with advanced self-lubricating, completely maintenance-free internal bearings to ensure silent, smooth rotation over a lifetime of bench service.

• Micro-Calibrated Precision Dial: Outfitted with an easy-to-read top-mounted calibrated disc and a polished center handwheel for micro-adjustments, ensuring uniform thickness across the entire sheet width.
