100A Pulse Argon Welder

Execute precise, oxidation-free fusion welds, prong tipping, porosity repair, and delicate wire joining across precious metals and reactive alloys. The 100A Automatic Argon-Shielded Pulse Spot Welder is a benchtop digital micro-arc TIG welding console delivering 50–600A output current. Designed with pre-programmed material settings for Gold (Au), Cobalt-Chromium (Co-Cr), Titanium (Titan), Hybrid, and Orthodontic alloys, it features digital power percentage display, millisecond pulse-time tuning, and an automatic argon gas shielding pre/post-flow system to produce clean, bright weld spots without discoloration or pitting.

Why Choose the 100A Argon Pulse Spot Welder

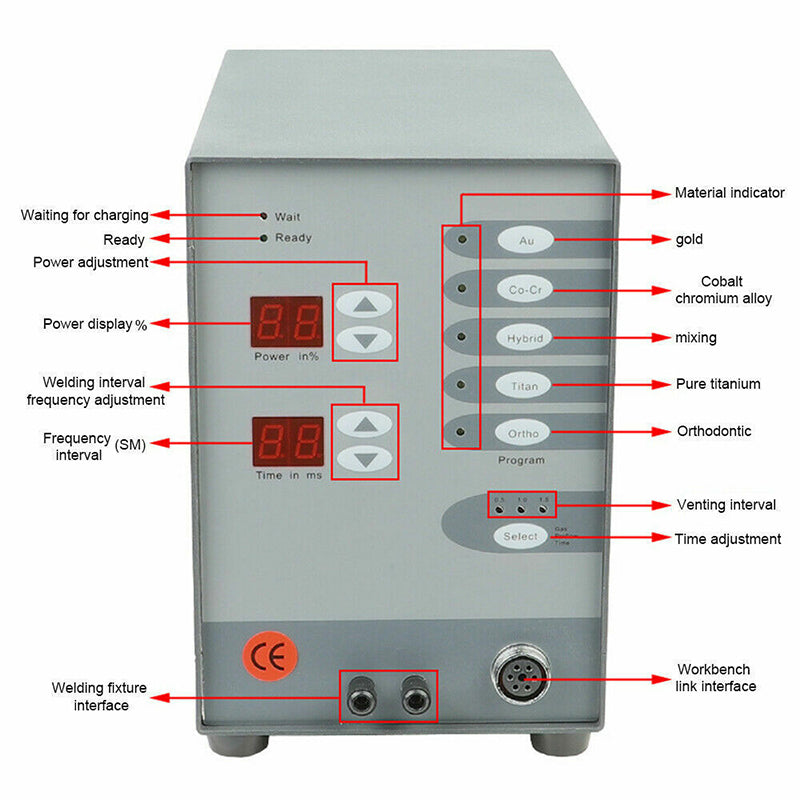

• Digital Preset Material Programs: Equipped with dedicated one-touch mode selection for Au (Gold), Co‑Cr (Cobalt‑Chromium), Hybrid, Titan (Pure Titanium), and Ortho (Orthodontic Wires) to automatically optimize discharge characteristics.

• Dual Digital LED Displays: Dual digital readouts with push-button controls allow independent regulation of Power Output Percentage (Power in %) and Pulse Duration (Time in ms) for repeatable micro-welds.

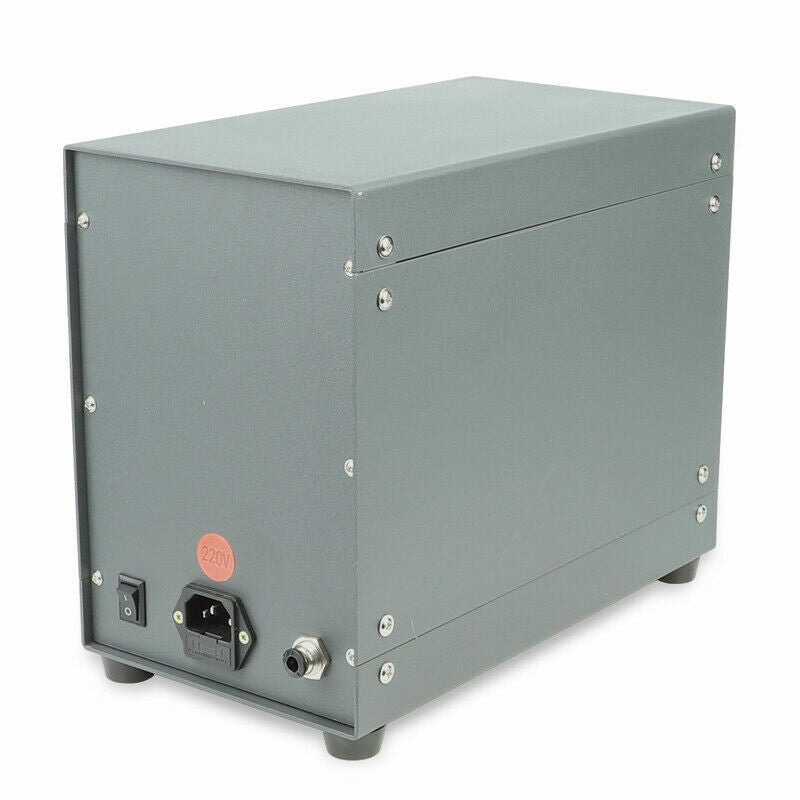

• Integrated Argon Shielding System: Rear gas inlet and adjustable pre/post-flow venting interval timing (0.5 s / 1.0 s / 1.5 s) prevent oxidation, scale, and blackening around platinum, gold, and titanium joints.

• High-Current Pulse Range (50–600A): Robust power core welds sheet stock and wire gauges from 0.5 mm up to 1.8 mm with deep penetration and smooth surface fusion.

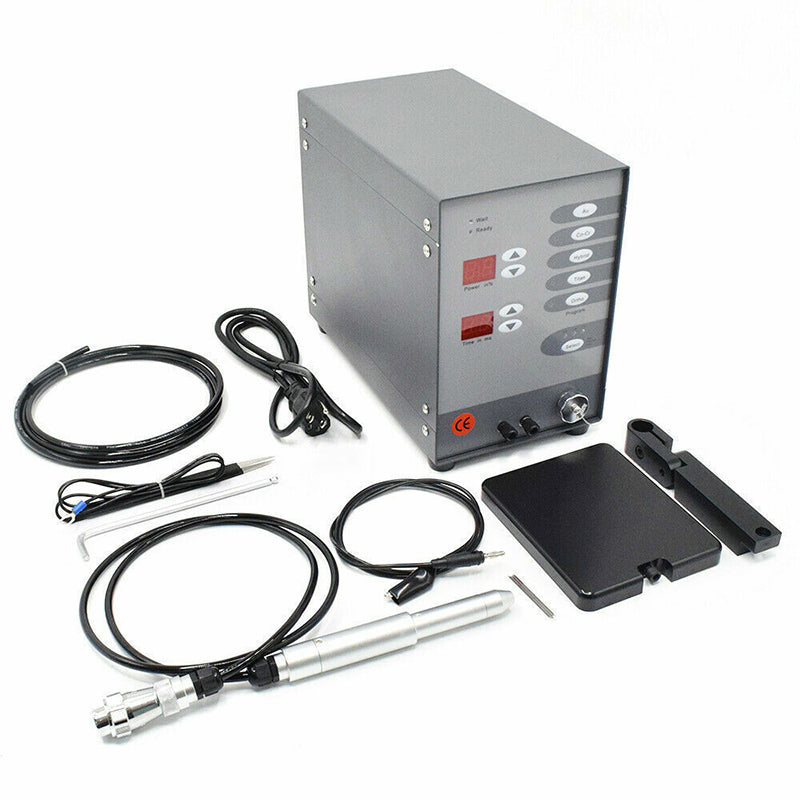

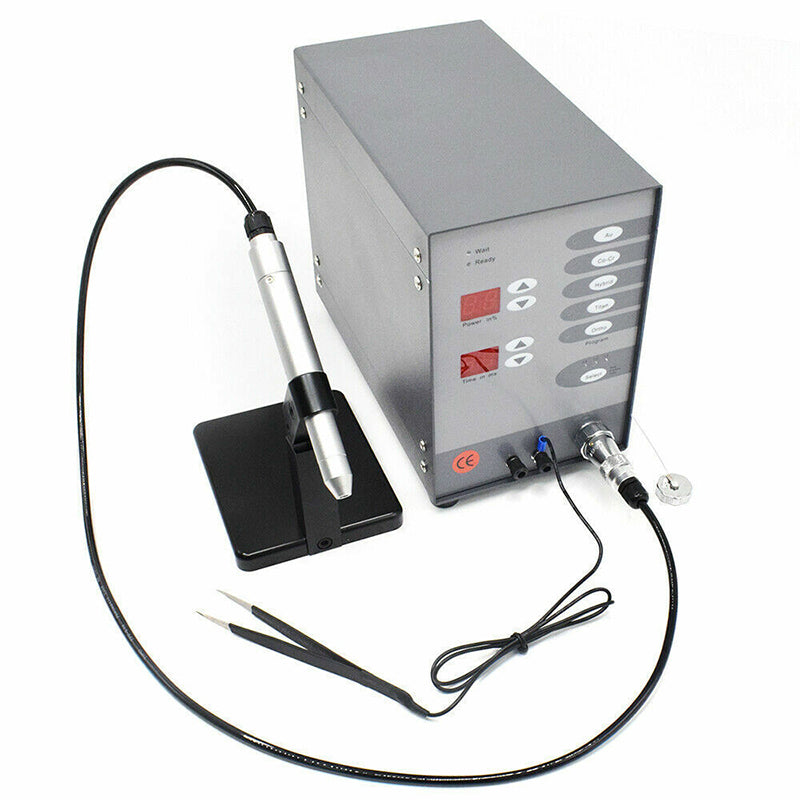

• Complete Benchtop System Kit: Includes a precision handpiece welding torch with stand, workpiece ground clamp, insulated tweezers, a 2-meter argon hose, and 5 replacement pointed tungsten electrode rods.

Technical Specifications & Component Matrix

Parameter Metric	Certified Factory Specification
Product Designation	100A Automatic Argon-Shielded Pulse Spot Welder
Input Operating Voltage	AC 110 V / 220 V (50 Hz / 60 Hz)
Rated Power Input	100W
Output Pulse Current	50 to 600 A
Working Output Voltage	40V
Welding Thickness Capacity	0.5 to 1.8 mm
Gas Supply Pressure	≥ 0.1 MPa (1.0 bar)
Max Argon Gas Consumption	5 L/min
Gas Venting Interval Settings	0.5 s / 1.0 s / 1.5 s Adjustable Pre/Post‑Flow
Console Dimensions	280 × 155 × 235 mm (11.0 × 6.1 × 9.3 in)
Gross Unit Net Weight	12.0 kg (26.5 lbs)
Packaging Dimensions	385 × 210 × 300 mm

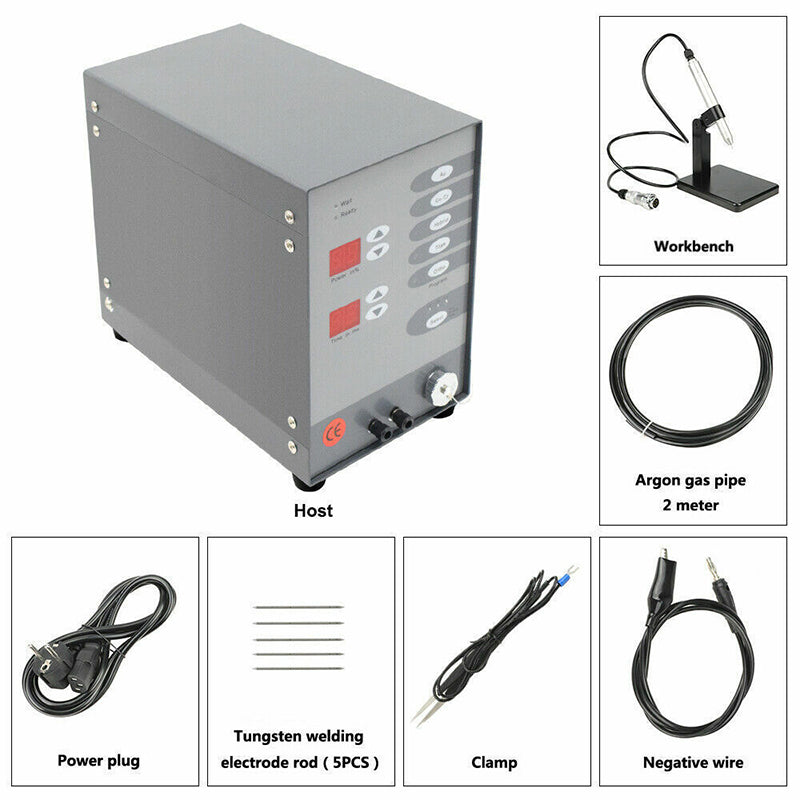

Included System Package	Main Console Host • Precision Handpiece Torch & Stand • Ground Clamp Cable • Insulated Clamping Tweezers • 2 m Argon Gas Hose • 5× Tungsten Electrodes • Power Cord • Hex Key
