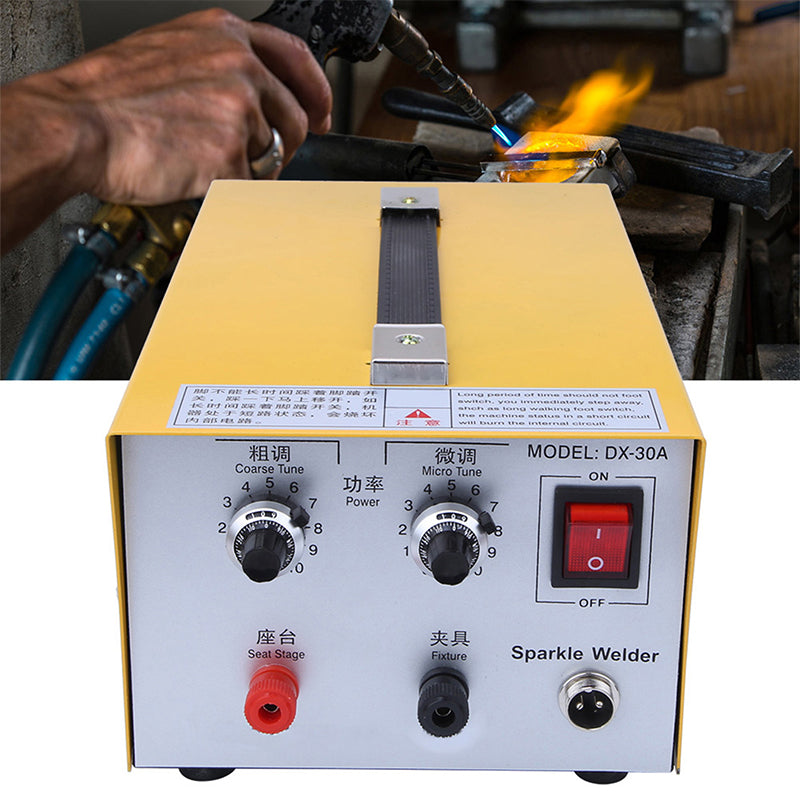

30A Sparkle Welder

Achieve rapid, clean, flux-free fusion welds on precious metal wires, chain links, jump rings, and delicate jewelry findings without discoloration or solder flow. The 30A Sparkle Welder (Model: DX-30A) uses high-frequency plasma tip-discharge arc technology to instantly create a localized molten pool at the joint seam. Powered by a 380W motor with dual coarse and fine current adjustment dials, it delivers precise pulse micro-welding up to 2.0 mm metal thickness on gold, silver, platinum, K-gold, and steel.

Why Choose the DX-30A 30A Sparkle Spot Welder

• High-Frequency Plasma Discharge Arc: Operates on the principle of needle-tip electrical discharge, creating instantaneous micro-arc heat that melts and bonds seam edges cleanly without solder powder or messy flux.

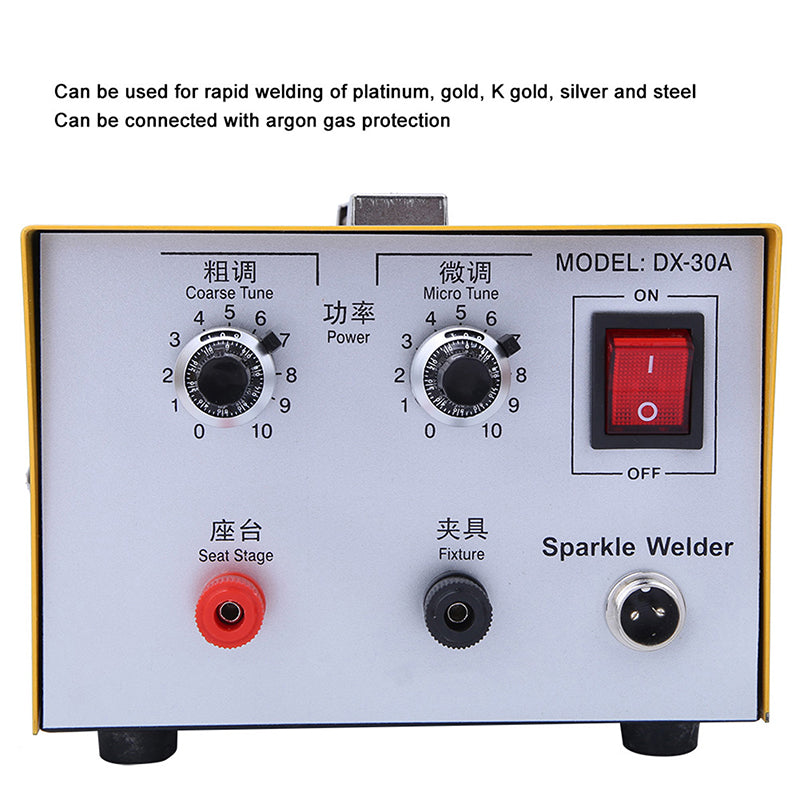

• Dual Power Adjustment Dials (Coarse & Micro Tune): Independent coarse and micro-tuning current regulation knobs allow precise energy calibration to match fine chain links (0.2 mm) up to heavier 2.0 mm wire gauges.

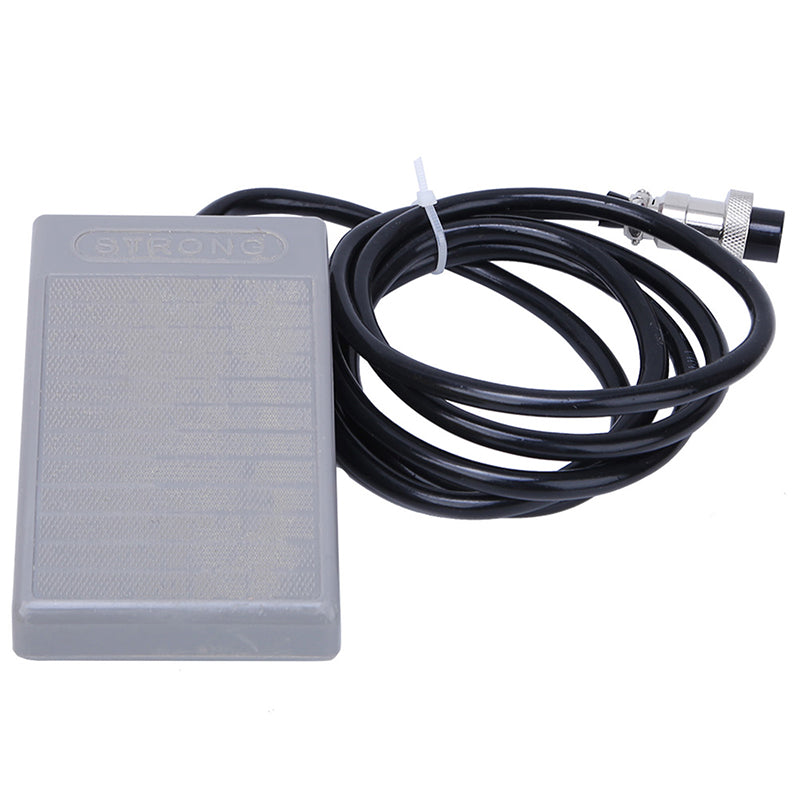

• Hands-Free Instant Foot Switch Control: Momentary foot pedal activation initiates the pulse spark instantly while keeping both hands steady on the tweezers and workpiece.

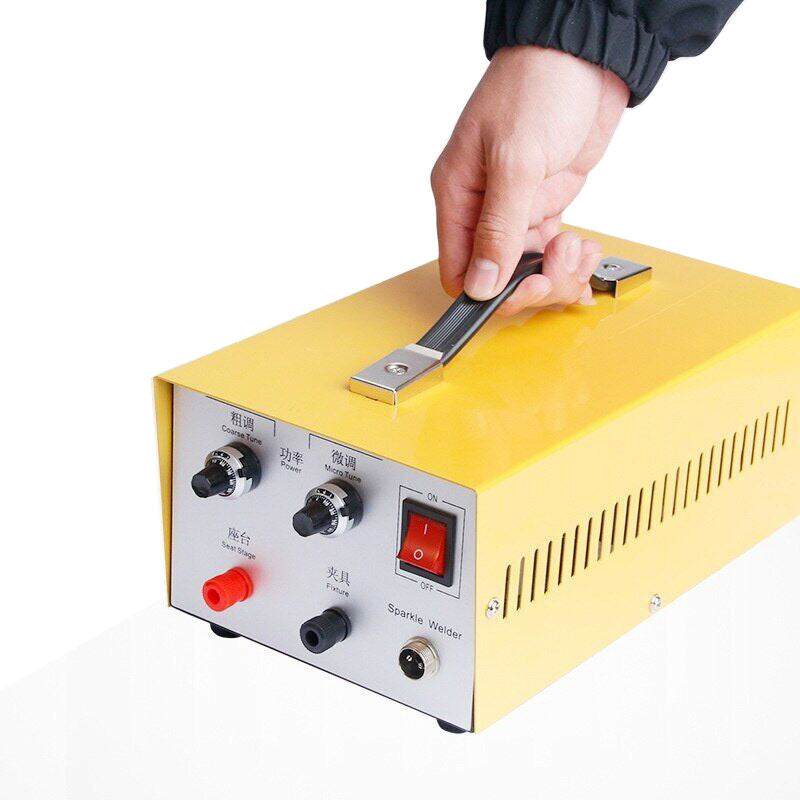

• Top Carrying Handle & Portable Build: Features a sturdy top-mounted carrying handle and compact footprint for easy transport between studio benches.

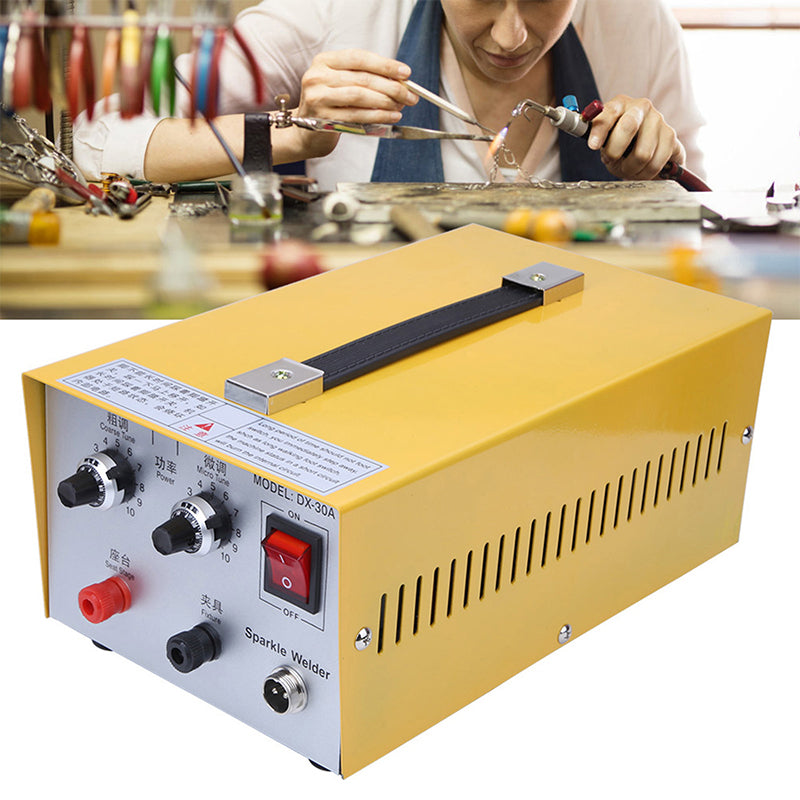

• Heavy-Duty Steel Casing with Active Cooling: Durable sheet metal construction in bright yellow with dual side cooling slots to maintain safe internal operating temperatures during long bench sessions.

Technical Specifications & Component Matrix

Parameter Metric	Certified Factory Specification
Product Designation	30A Sparkle Welder / Jewelry Pulse Spot Welder
Model Number	DX-30A
Rated Output Current	30A
Rated Power Input	380W
Operating Voltage	AC 220V, 50Hz / 60Hz
Maximum Welding Thickness	Up to 2.0 mm
Current Regulation	Dual Dial Controls (Coarse Tune + Micro Tune)
Chassis Dimensions	300 × 180 × 140 mm (11.81 × 7.08 × 5.51 in)
Net Unit Weight	4.85 kg (10.7 lbs)
Color Profile	Industrial Powder-Coated Yellow with Black Handle
Tungsten Needle Spec	Ø 1.0 mm Pointed Tungsten Electrode

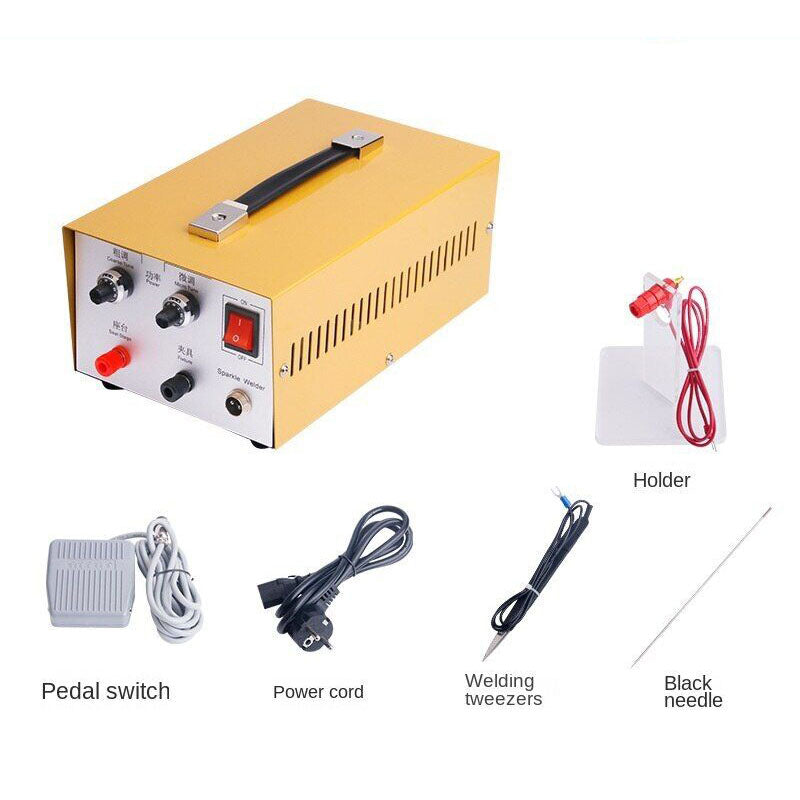

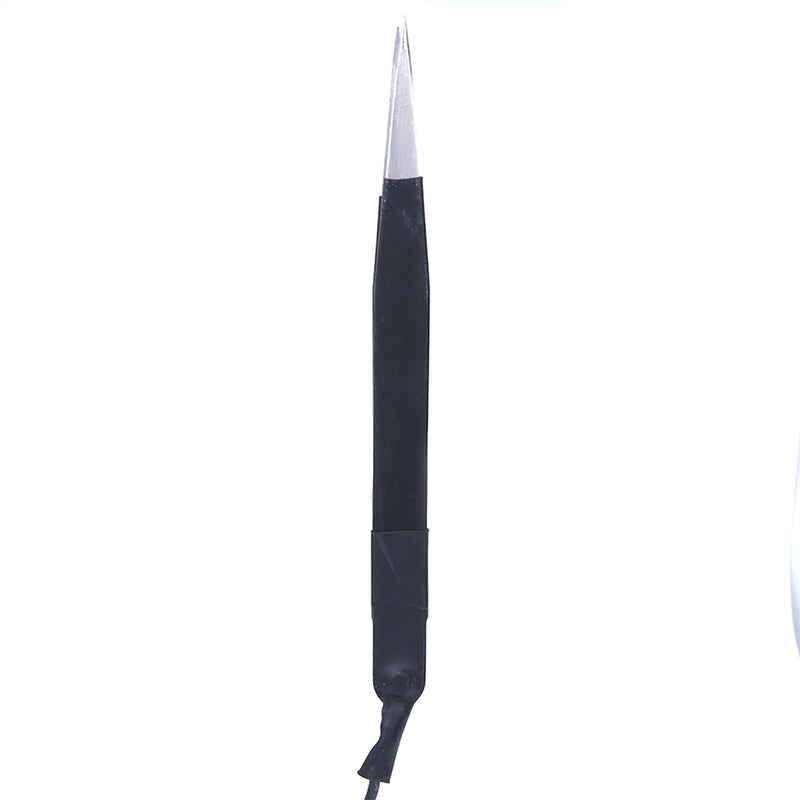

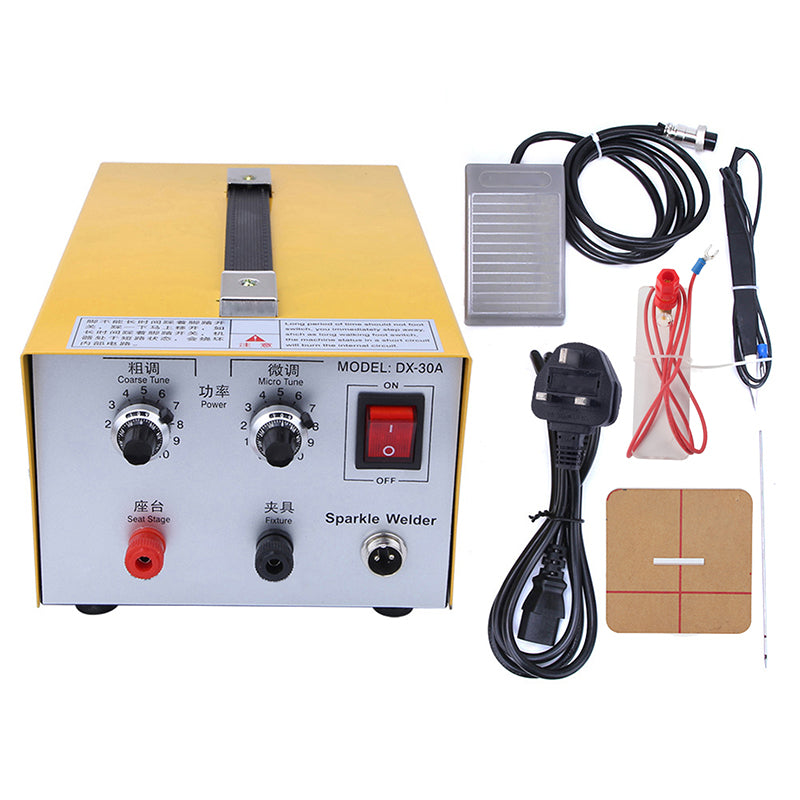

Included Kit Components	1× DX‑30A Main Console • 1× Momentary Foot Switch • 1× Welding Tweezers • 1× Needle Holder & Acrylic Stand • 1× Tungsten Needle • 1× Power Cord

Installation & Operating Instructions

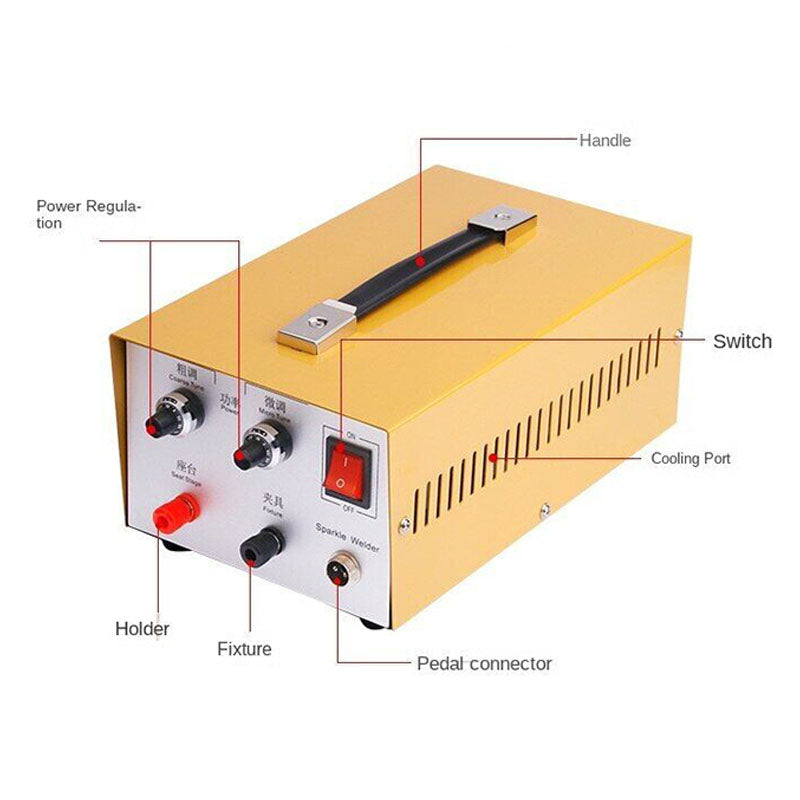

1. Terminal Connections: Connect the tungsten needle holder cable into the red output terminal (Seat Stage / Negative). Plug the clamping tweezers into the black output terminal (Fixture / Positive).

2. Electrode Setup: Sharpen the tip of the Ø 1.0 mm tungsten needle on a diamond lap/grinder. Insert the needle into the holder with approximately 50 mm extension.

3. Power & Current Calibration: Turn on the main illuminated power rocker switch. Set the coarse and micro-tuning knobs according to metal thickness and alloy conductivity.

4. Positioning: Securely grip the workpiece with the tweezers. Align the joint interface precisely opposite the tungsten needle point at an optimal air gap of approximately 0.5 mm to 1.0 mm (never let the workpiece touch the needle directly).

5. Trigger Weld: Tap and immediately release the foot switch to trigger the micro-arc discharge.

Important Safety Precautions

• Momentary Pedal Tap Only: Tap the foot switch and release your foot immediately. Holding the pedal down continuously can short-circuit internal components and burn out the circuit board.

• Eye Protection: Always wear UV/tinted protective goggles or an eye shield to protect against arc flash rays.

• Electrical Isolation: Avoid touching the bare metal parts of the tweezers and the tungsten needle simultaneously while tapping the foot pedal.

• High-Voltage Internal Circuit: Do not open or dismantle the outer chassis casing; servicing should be performed by qualified technicians only.
