Diamond Tip For Air Scibers - GH694

Execute crisp, high-contrast scribing, fine stippling, and permanent identification marking on hardened materials. The Diamond Tip for Air Scribers (Model: GH694) is a precision-machined replacement point pin designed for pneumatic scribing pens and hammer handpieces. Featuring a multi-faceted diamond point pin (4, 8, 16, 24, or 32 sides) mounted on a durable steel shank, it delivers exceptional wear resistance when scoring hardened steel, glass, stone, ceramics, and precious metals.

Why Choose the GH694 Diamond Air Scriber Tip

• Multi-Faceted Diamond Point Geometry: Available in 4, 8, 16, 24, or 32-sided diamond configurations, ensuring razor-sharp facet contact and superior light-reflective scribe lines.

• Exceptional Wear & Abrasion Resistance: Hard diamond point prevents tip rounding and premature blunting during continuous high-frequency impact on hard substrates.

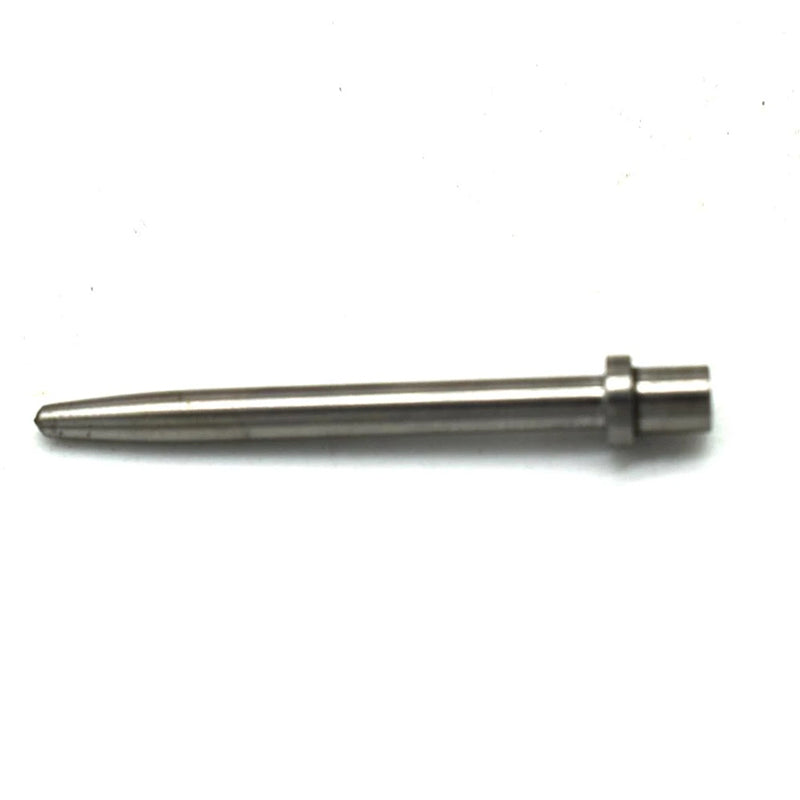

• Precision Stepped Shank Fit: Features a 3.95 mm base shank with an integrated stop collar and a 3.2 mm upper body for secure, slip-free retention in pneumatic scriber chucks.

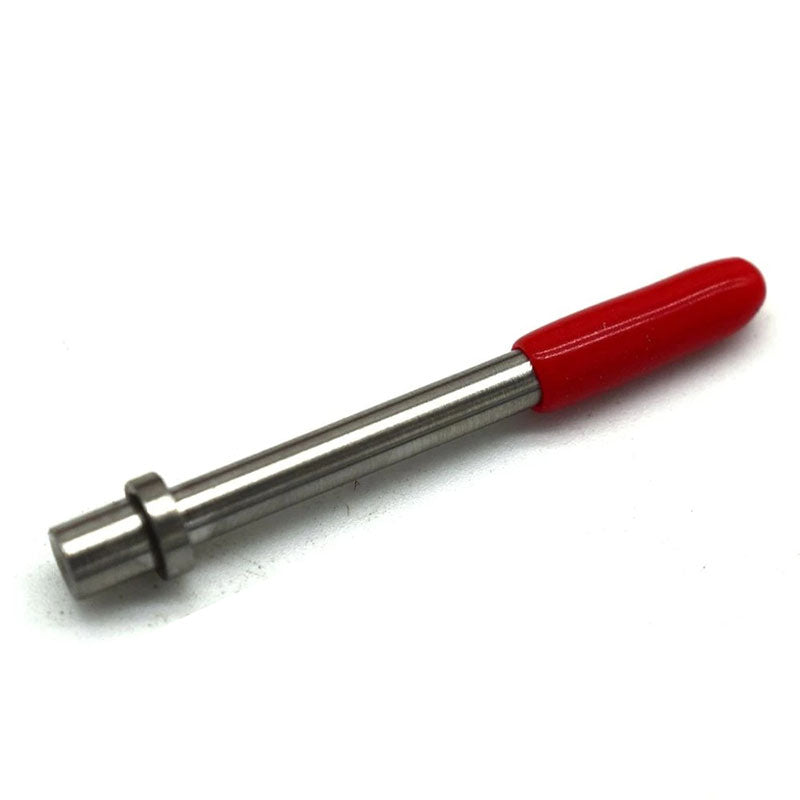

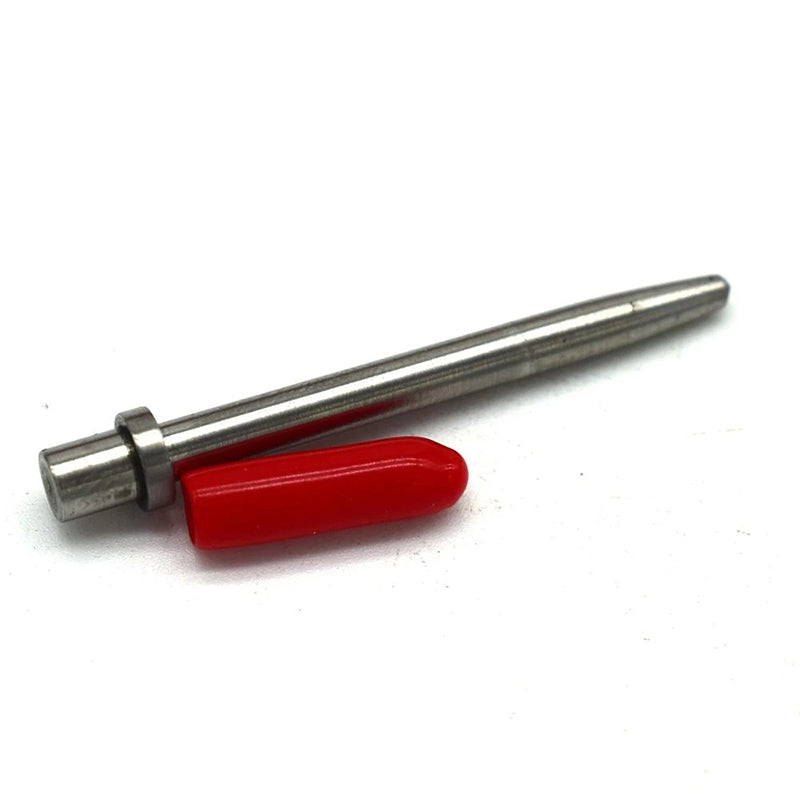

• Protective Silicone Tip Cap Included: Ships with a protective red sleeve cap to prevent tip chipping and protect hands during storage and tool handling.

• Multi-Material Engraving Performance: Scores metals, stainless steel, glass, jade, porcelain, stone, and hardened tooling fixtures with clean line definition.

Technical Specifications & Dimensional Profile

Parameter Metric	Certified Factory Specification
Product Designation	Diamond Tip Replacement Pin for Air Scribers
Model Number	GH694
Tip Feature	Multi-Faceted Diamond Point Pin
Faceted Style Options	4 / 8 / 16 / 24 / 32 Sides

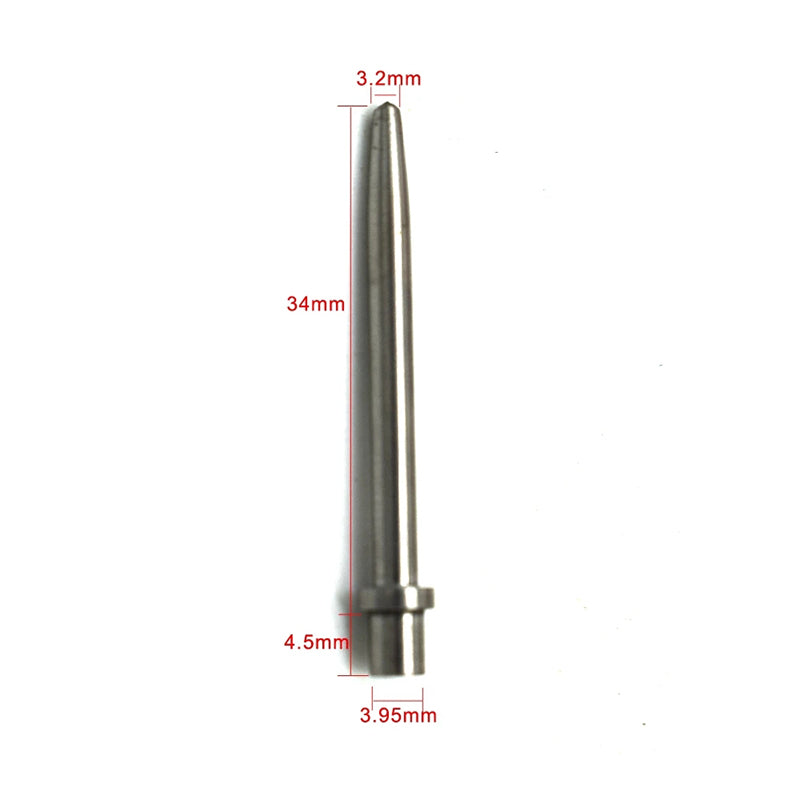

Total Tool Length	38.5 mm (3.85 cm)
Tip Body Diameter	3.2 mm (Upper Taper Body Length: 34 mm)
Base Shank Diameter	3.95 mm (Base Collar Extension Length: 4.5 mm)
Unit Weight	2.8 g
Included Accessories	Protective Red Silicone Safety Cap
