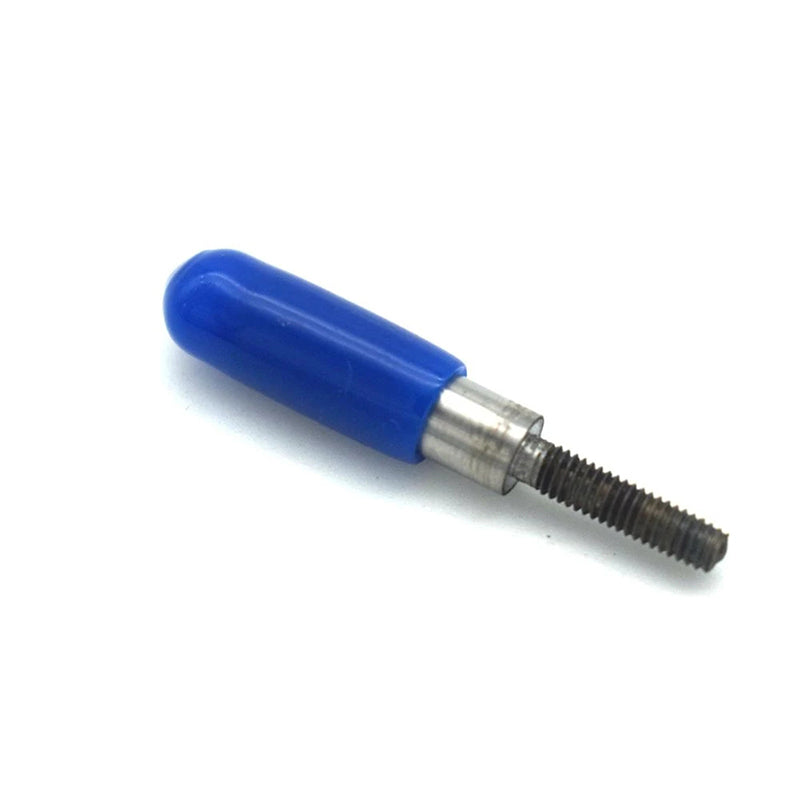

Diamond replacement tip GH697 with threaded shank and blue protective end cap.

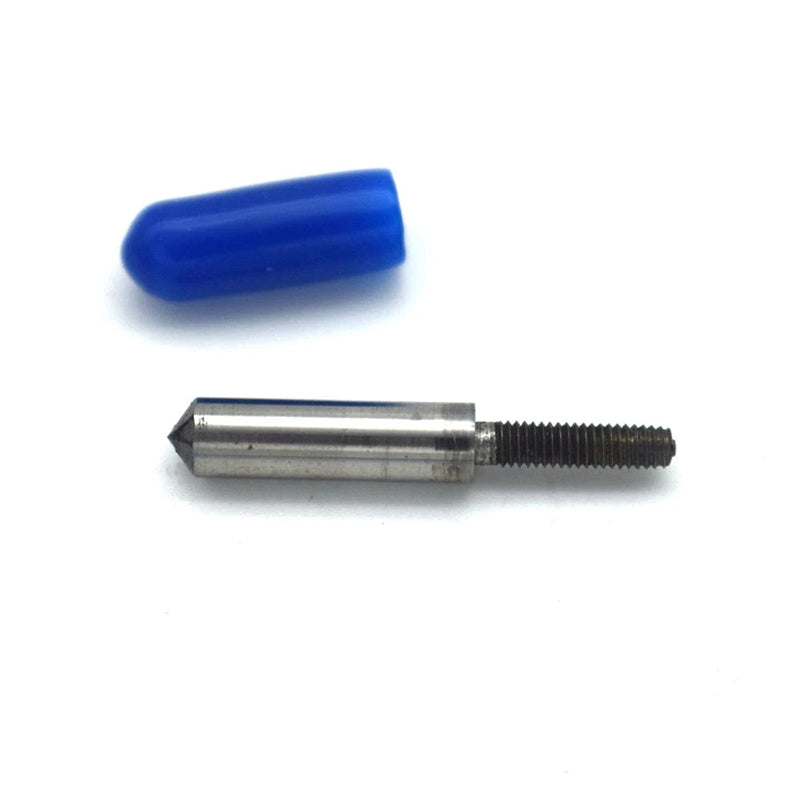

Threaded diamond engraving tip GH697 shown alongside removed blue protective cover.

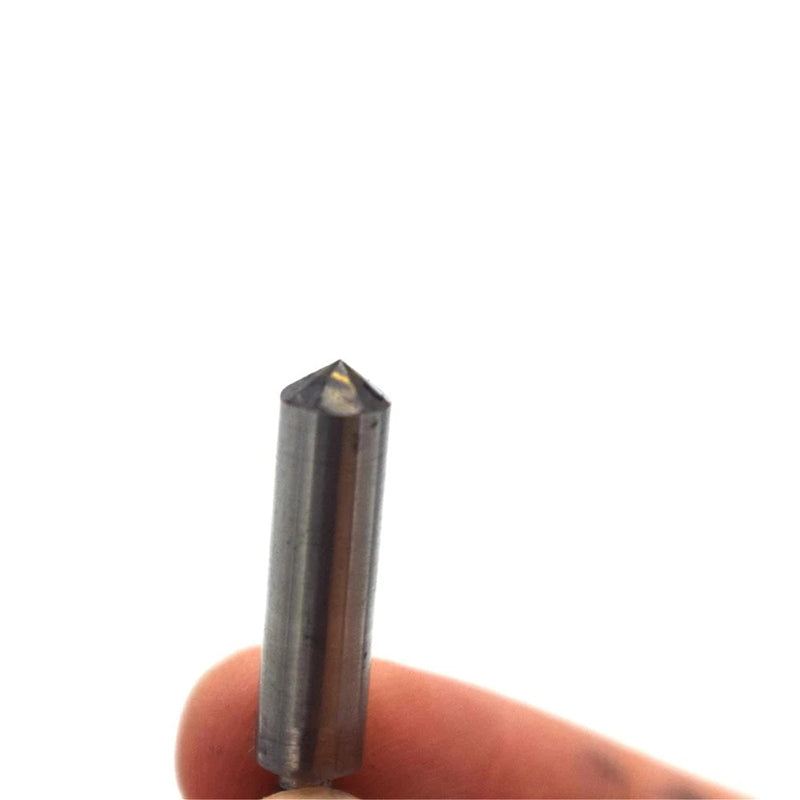

Close-up view of the sharp conical diamond point on the GH697 engraving stylus.

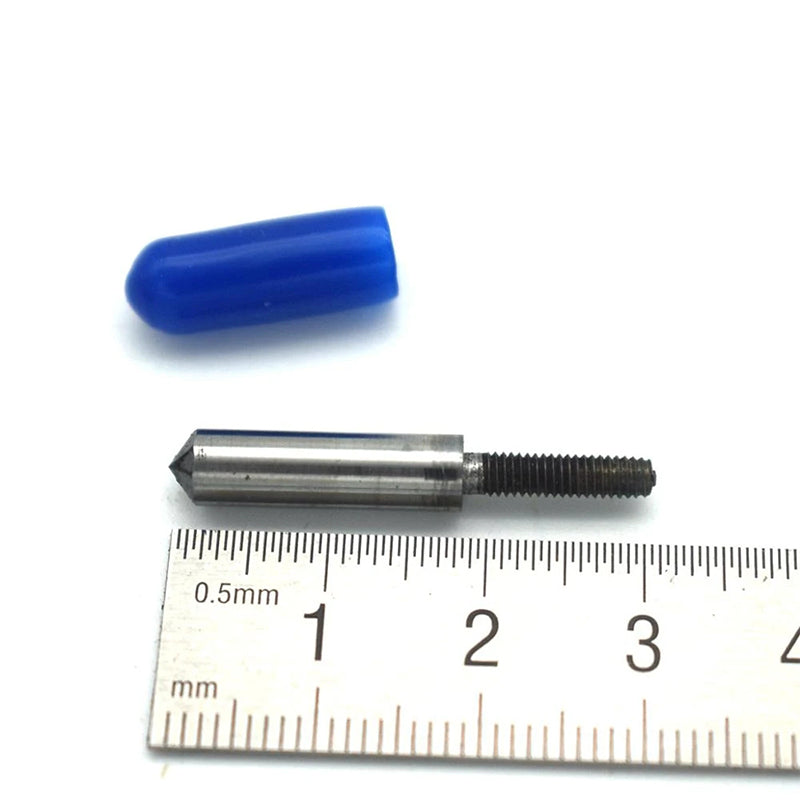

GH697 diamond tip measured next to a millimeter scale ruler showing total length.

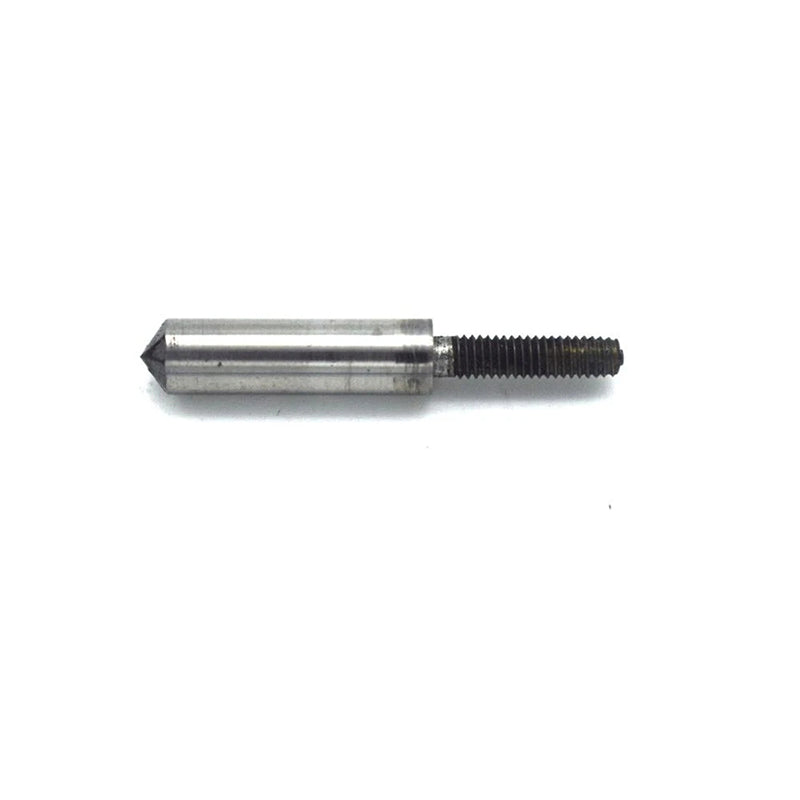

Horizontal profile view of the GH697 diamond stylus with threaded mounting shank.

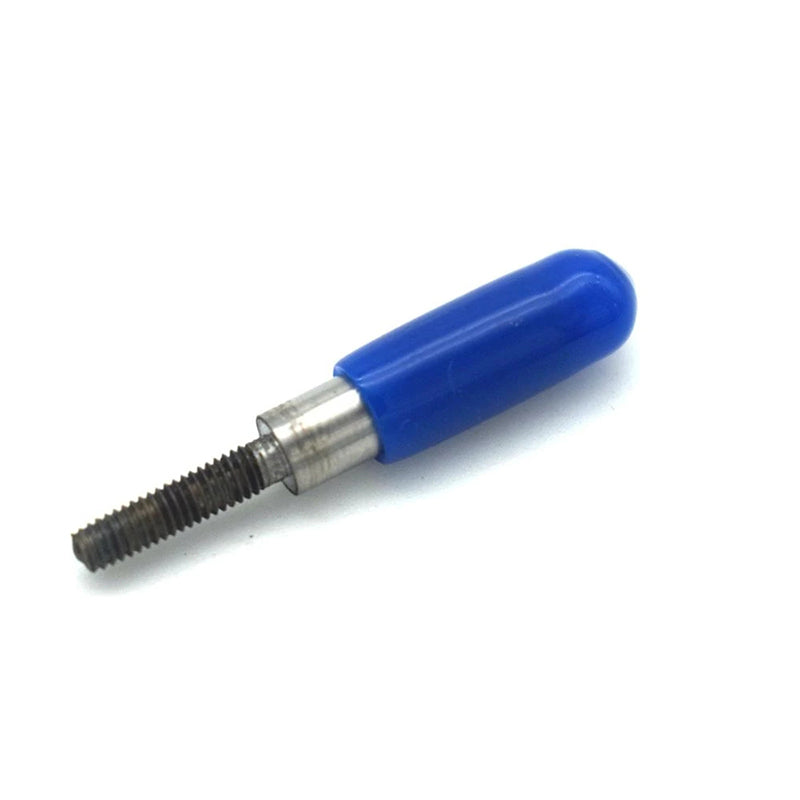

Angled view of GH697 threaded diamond engraving stylus fitted with blue safety cap.
Diamond replacement tip GH697 with threaded shank and blue protective end cap.
Threaded diamond engraving tip GH697 shown alongside removed blue protective cover.
Close-up view of the sharp conical diamond point on the GH697 engraving stylus.
GH697 diamond tip measured next to a millimeter scale ruler showing total length.
Horizontal profile view of the GH697 diamond stylus with threaded mounting shank.
Angled view of GH697 threaded diamond engraving stylus fitted with blue safety cap.
LUXGOLDTOOLSSKU: ENJC0060

Diamond Tip - GH697

$22.15
Shipping calculated at checkout.
Model: 8
Diamond replacement tip GH697 with threaded shank and blue protective end cap.
Diamond Tip - GH697
$22.15
Model: 8
Low Stock (10)

Model Number: ENJC0059-ENJC0063

Material: Metal

Style: 4/8/12/16/24/32 Sides

Length: 3.2cm

Height: 1cm

Width: 1cm

Element Diameter: 1inch

Payment & Security
American Express
Apple Pay
Bancontact
Google Pay
Mastercard
PayPal
Shop Pay
Union Pay
Visa

Related categories
Magic desktop engraving machine, pneumatic handpiece with hose, and five wooden-handled gravers on a light grey background.Engraving Machines & Accessories

Execute bright, light-reflective inside-ring inscriptions, crisp serial numbers, and precision pantograph engravings. The Threaded Diamond Tip Stylus (Model: GH697) is a replacement diamond point bit designed for manual inside-ring engraving machines, mechanical pantographs, and rotary engraving attachments. Featuring a multi-faceted diamond point pin (4, 8, 12, 16, 24, or 32 sides) fused to a precision-threaded steel body, it scores precious metals without burning or metal burring.

Why Choose the GH697 Threaded Diamond Engraving Tip

  • Threaded Base Shank Design: Features a threaded rear shank that screws directly and securely into inside-ring engraving arms and pantograph spindle holders, eliminating stylus play or slippage.

  • Multi-Faceted Diamond Point Geometry: Available in 4, 8, 12, 16, 24, or 32-sided facet configurations, creating ultra-bright, mirror-reflective cut grooves on curved inner shanks.

  • Superior Hardness & Edge Retention: Natural/industrial diamond point resists wear, chipping, and deformation when scoring gold, silver, platinum, titanium, and stainless steel.

  • Protective Blue Silicone Cap Included: Comes equipped with a durable blue silicone safety cap to safeguard the precision-ground diamond point during storage and tool swaps.

Technical Specifications & Dimensional Profile

Parameter Metric Certified Factory Specification
Product Designation Threaded Diamond Tip Stylus / Replacement Engraver Bit
Model Number GH697
Tip Construction Precision Multi-Faceted Diamond Point
Faceted Configuration Options 4 / 8 / 12 / 16 / 24 / 32 Sides
Mounting / Shank Type Male Threaded Shank Connection
Total Tool Length 3.2 cm (32 mm)
Diameter / Profile Dimensions 1.0 × 1.0 cm
Unit Weight 20 g
Included Accessories Protective Blue Silicone Safety Sleeve Cap

Retail Jewelers & Engraving Boutiques: Ideal for replacing worn diamond points on inside-ring engravers to maintain crisp wedding date and initial inscriptions.

Bench Jewelers & Goldsmiths: Perfect for applying bright-cut trademarks, metal purity hallmarks, and custom personalization inside rings and bangles.

Trophy & Precision Instrument Engravers: Great for pantograph scribing, plaque lettering, and serialized metal tag marking.
