Economic Jeweler's Adjustable Saw Frame
Economic Jeweler's Adjustable Saw Frame
$13.88
/

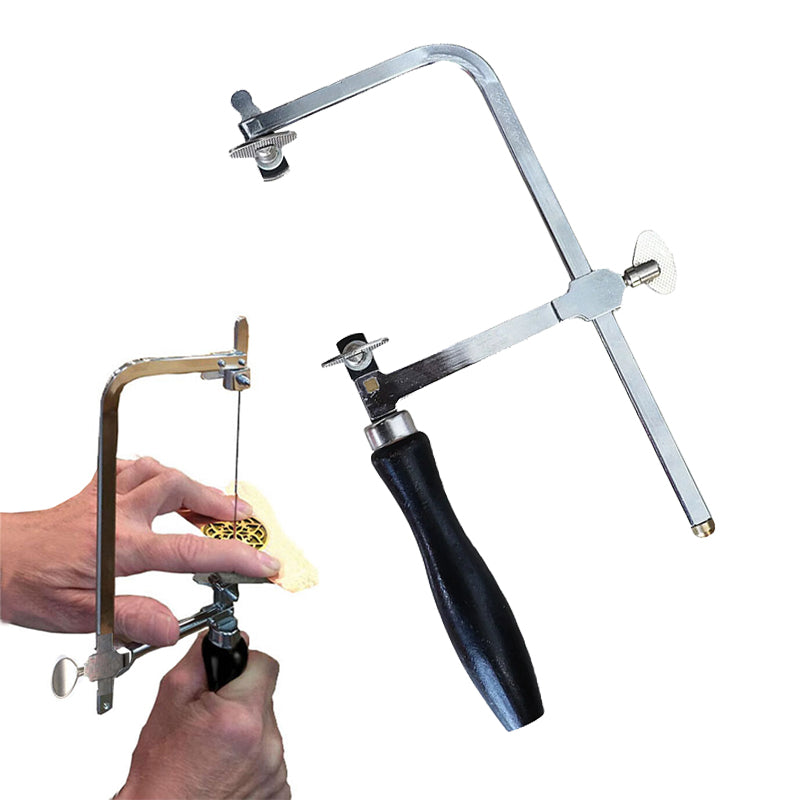

Execute clean, accurate cuts, intricate pierced fretwork, and smooth scroll profiles in sheet metals, wires, plastics, and wax. The Economic Jeweler's Adjustable Saw Frame features a telescoping steel spine that adjusts to fit different saw blade lengths—allowing craftsmen to use standard blades as well as salvage broken blade sections. Paired with a comfortable black wooden handle (11.1 cm) and textured thumbscrew clamps, it provides reliable blade tension for everyday jewelry benchwork.
Why Choose the Adjustable Jeweler's Saw Frame
-

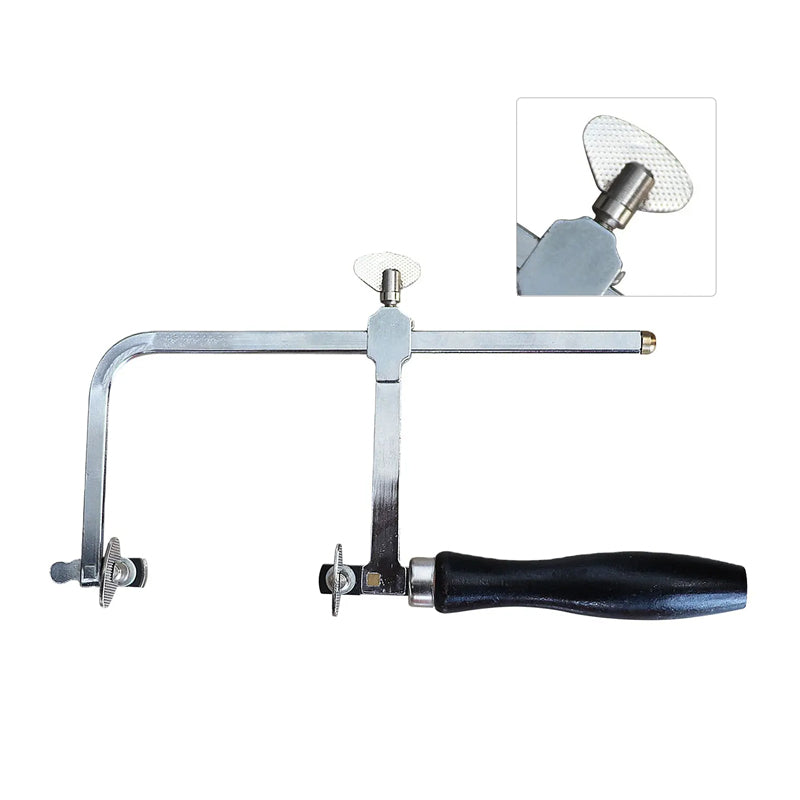

Telescoping Adjustable Spine: The upper frame arm slides smoothly along the main beam and locks securely with a top thumbscrew, accommodating various blade lengths and letting you clamp broken blades to reduce workshop waste.
-
90mm (3.5") Standard Working Depth: Provides a versatile balance between deep clearance for sheet metal work and rigid stability to prevent frame flex during tight turns.
-
Ergonomic Black Wooden Handle (11.1 cm): Contoured hardwood handle fits comfortably in the palm, minimizing fatigue during extended sawing, piercing, and hollow-out detailing.
-

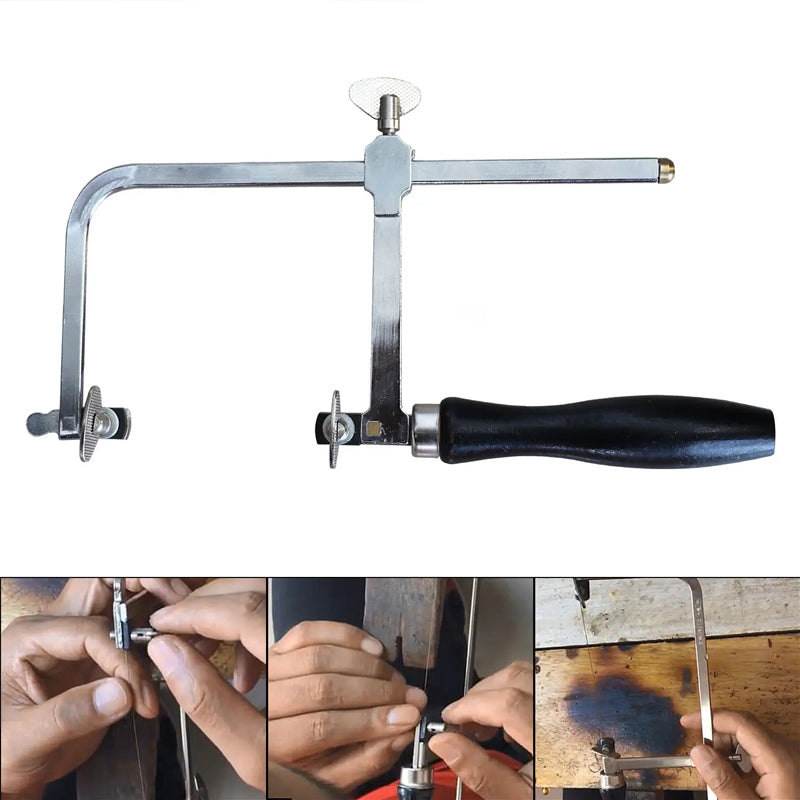

Textured Dual Thumbscrew Clamps: Serrated clamping plates hold fine piercing blades firmly in place to prevent blade slippage under tension.
-

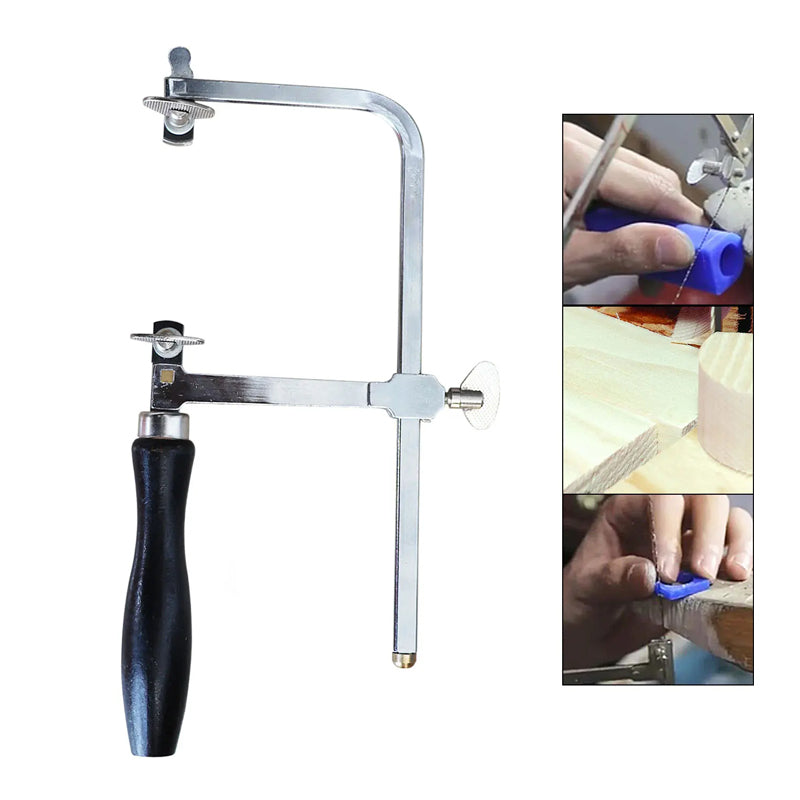

Multi-Material Compatibility: Ideal for piercing precious metals (gold, silver, platinum), base metals (brass, copper), acrylics, bone, and carving wax tubes.
Technical Specifications
| Parameter Metric | Certified Factory Specification |
| Product Designation | Economic Jeweler's Adjustable Saw Frame |
| Frame Type | Telescoping Adjustable U-Bow |
| Throat Depth (Working Depth) | 90 mm (88 mm clearance) |

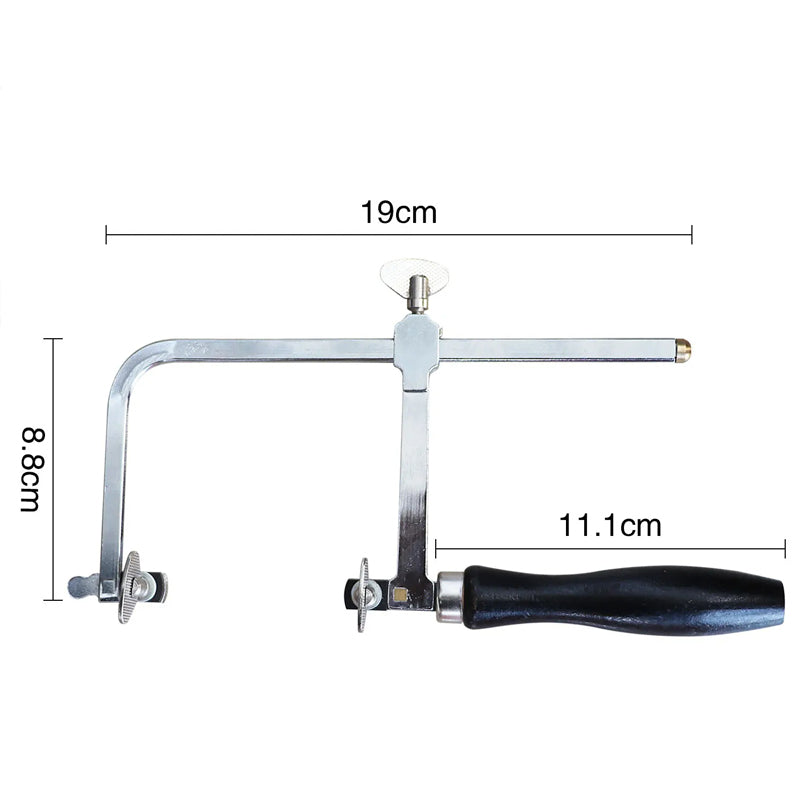

| Overall Frame Dimensions | 190 × 88 × 111 mm |
| Handle Length & Material | 11.1 cm (111 mm) Contoured Hardwood (Black Finish) |
| Frame Material | Chrome-Plated Spring Steel with Knurled Brass End Cap |
| Locking Mechanism | 3 × Textured Wing Thumbscrews (Top Extension + Dual Blade Clamps) |
| Blade Compatibility | Fits all standard 130‑150 mm jeweler's saw blades (#8/0 to #6) & broken blade segments |
