Economical Jeweler's Saw Frame

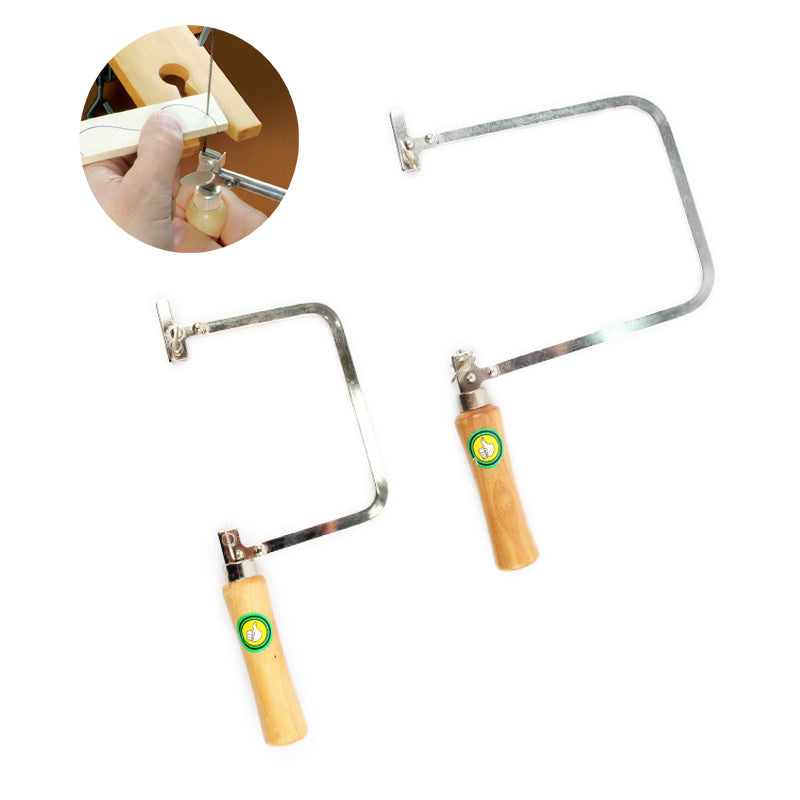

Achieve clean, accurate cuts, intricate piercing, and detailed cutout shapes in sheet metals, wires, plastics, and carving wax. The Fixed Jeweler's Saw Frame is a classic metal sawing tool engineered for steady tension and smooth tracking along bench pins. Built with a rigid tempered steel frame and an ergonomically contoured natural wooden handle, it holds standard 130‑150 mm jeweler's saw blades firmly under tension, available in both 90mm (standard) and 160mm (deep throat) configurations to suit different sheet dimensions.

Why Choose the Fixed Jeweler's Saw Frame

• Rigid Tempered Steel Frame: Fixed U-frame structure maintains consistent blade tension and prevents frame twist or deflection during delicate curve cutting and tight scroll piercing.

• Two Throat Depth Configurations (90 mm & 160 mm):

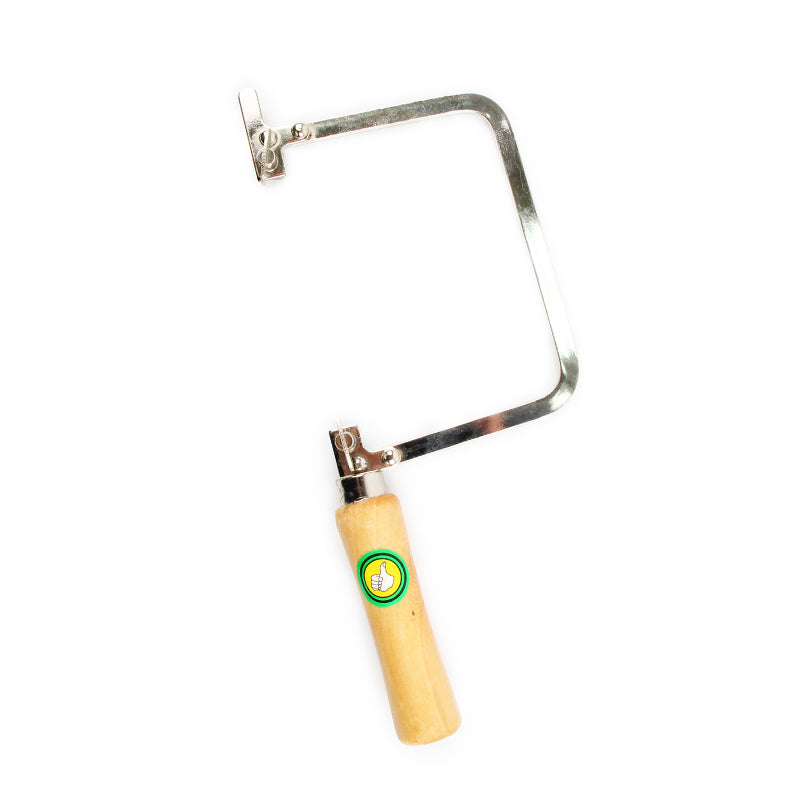

  • 90mm Standard Throat: Compact and agile for ring sizing, small component piercing, and close-quarter bench pin control.

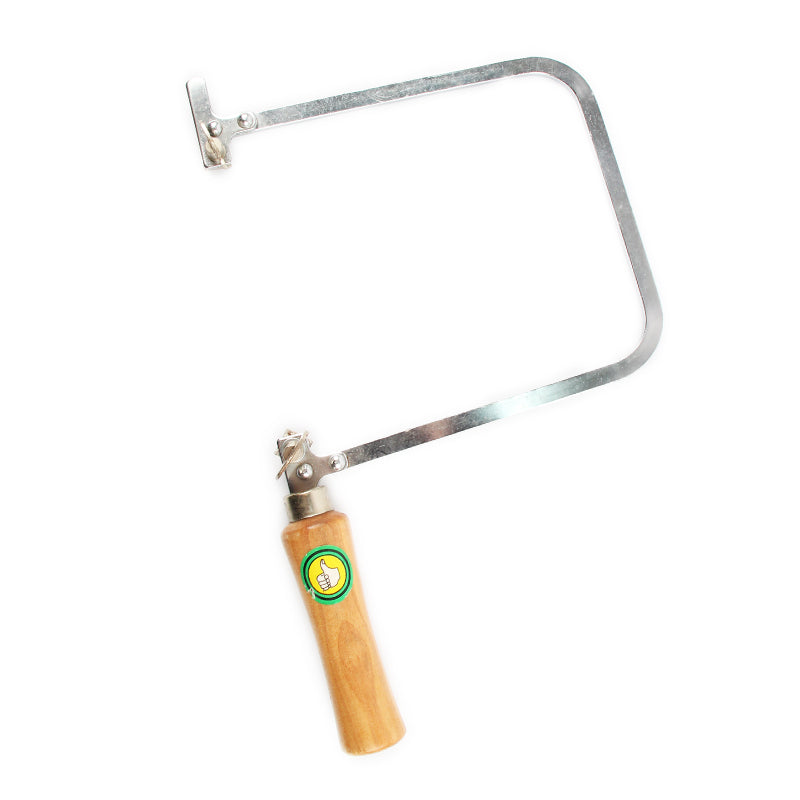

  • 160mm Deep Throat: Extended clearance for cutting wide metal sheets, large plate layouts, and long continuous contours without frame interference.

• Ergonomic Contoured Wooden Handle (10.5 cm): Natural hardwood handle is ergonomically shaped to reduce grip fatigue during prolonged piercing and fretwork sessions.

• Secure Dual Thumbscrew Clamping: Sturdy wing screws clamp blade ends securely, ensuring even grip without premature blade slippage or snap.

• Standard Saw Blade Compatibility: Accommodates standard jeweler's piercing saw blades (up to 150 mm length) across all jeweler blade sizes (#8/0 to #6).

Technical Specifications & Size Comparison

Parameter Metric	Standard 90mm Frame	Deep Throat 160mm Frame
Product Designation	Fixed Jeweler's Saw Frame (Standard)	Fixed Jeweler's Saw Frame (Deep Throat)
Frame Style	Fixed Rigid U-Bow	Fixed Rigid Deep U-Bow

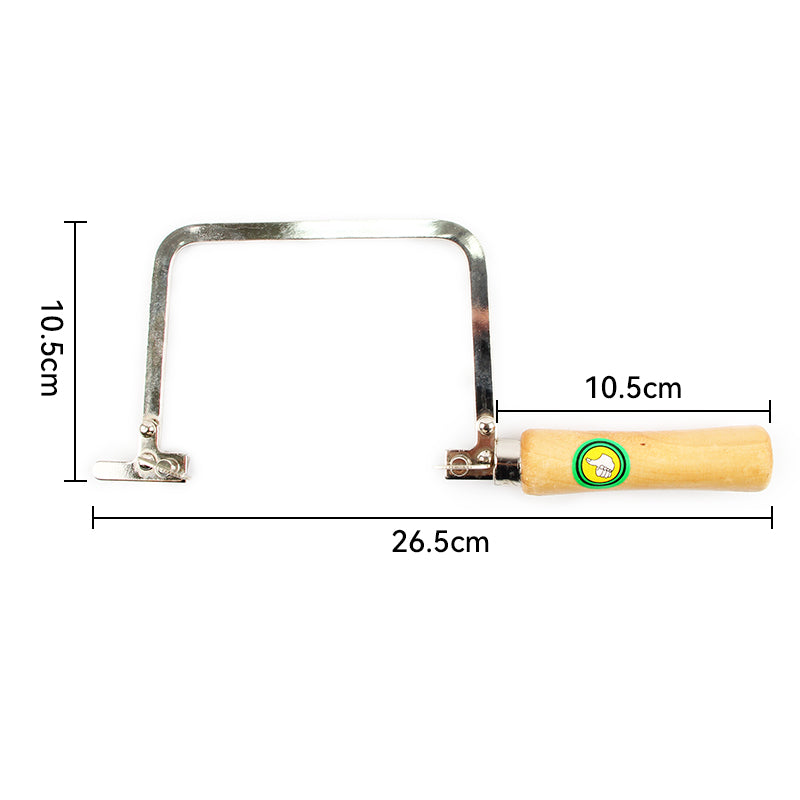

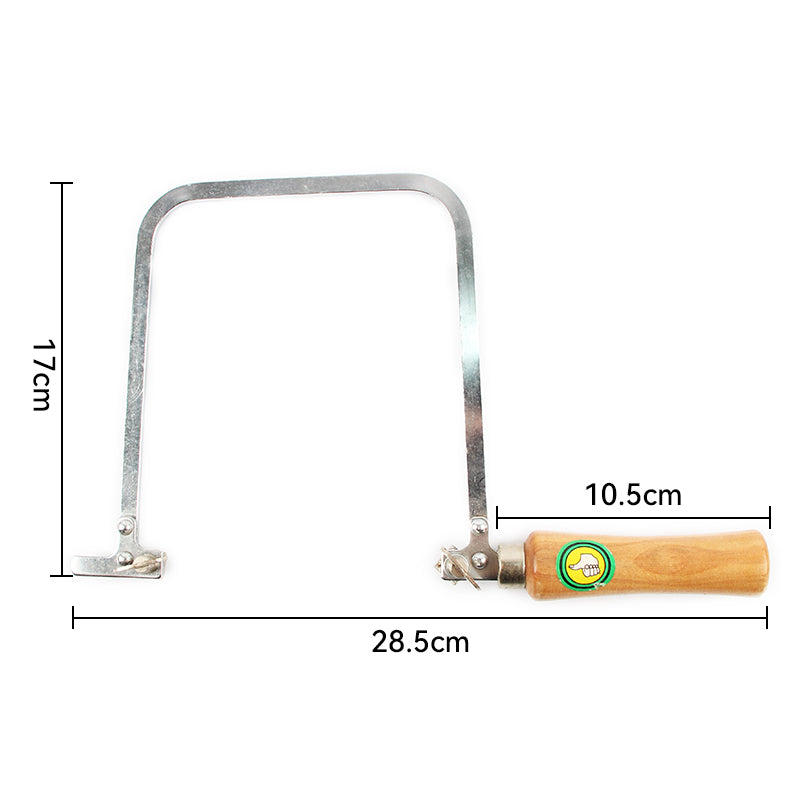

Throat Depth (Working Depth)	90 mm (Overall Frame Height: 10.5 cm)	160 mm (Overall Frame Height: 17 cm)
Maximum Cutting Reach	Up to 75 mm	Up to  160 mm
Overall Tool Length	26.5 cm (10.43 in)	28.5 cm (11.22 in)
Handle Length & Material	10.5 cm Contoured Natural Hardwood	10.5 cm Contoured Natural Hardwood
Frame Material	Chrome-Plated / Polished Spring Steel	Chrome-Plated / Polished Spring Steel
Blade Length Capacity	Standard 130--150 mm Jeweler's Saw Blades	Standard 130‑150 mm Jeweler's Saw Blades
