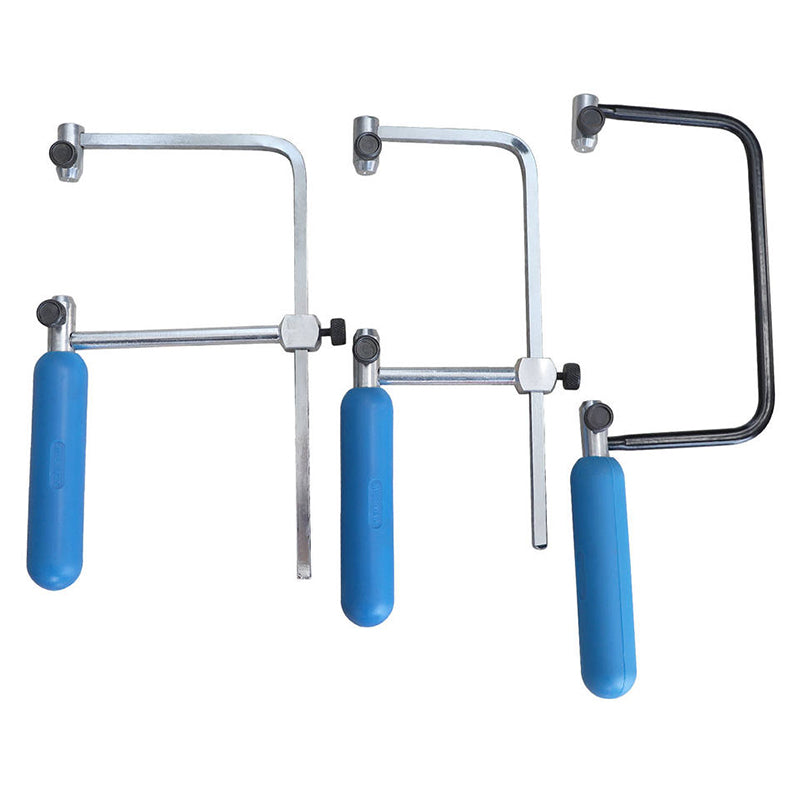

Trio of Swiss style fine jeweler saw frames with ergonomic blue handles in fixed and adjustable models.

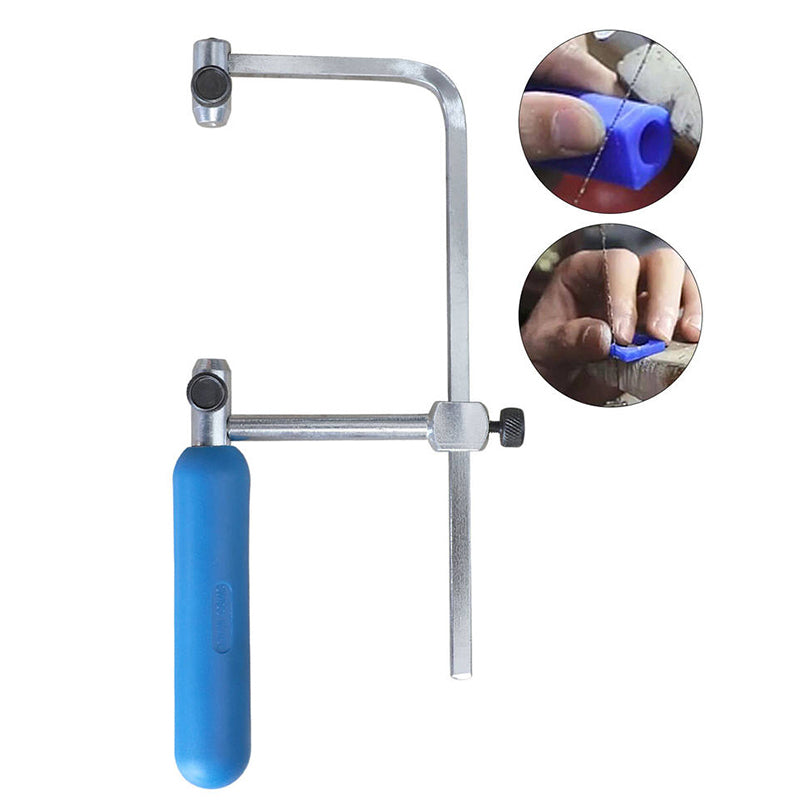

Fine jeweler adjustable saw frame shown with demonstration insets of ring carving wax cutting.

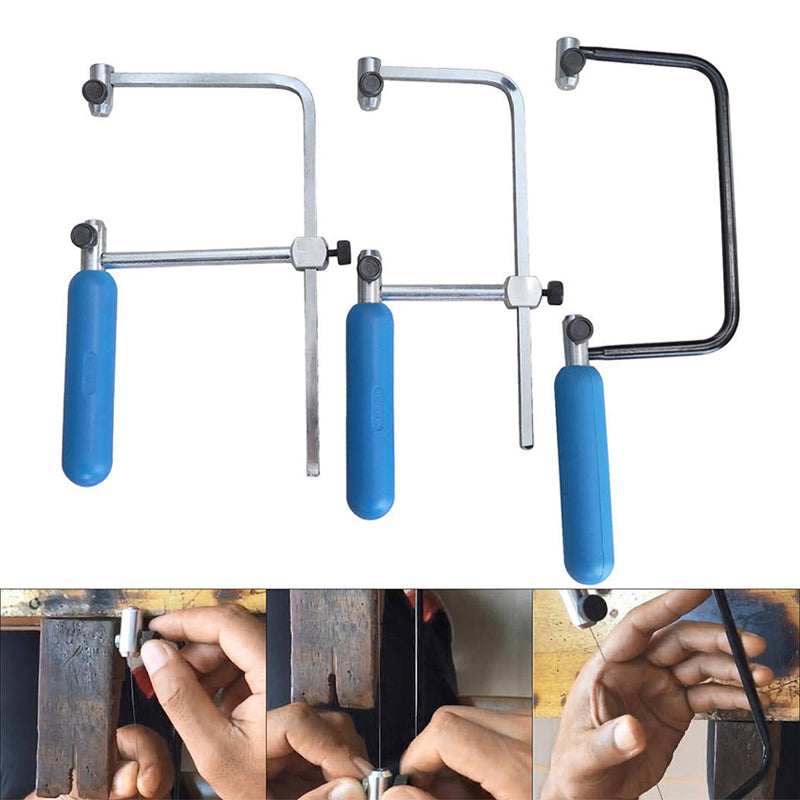

Three fine jeweler saw frame models with bottom panels demonstrating saw blade clamping on a bench pin.

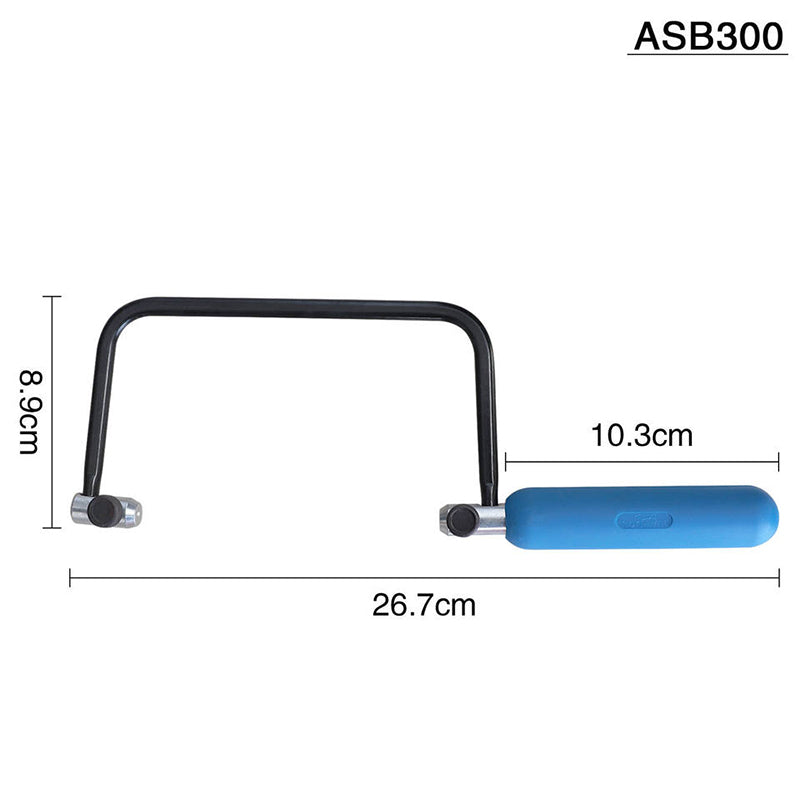

Dimension diagram for ASB300 fixed fine jeweler saw frame showing 8.9cm depth and 26.7cm total length.

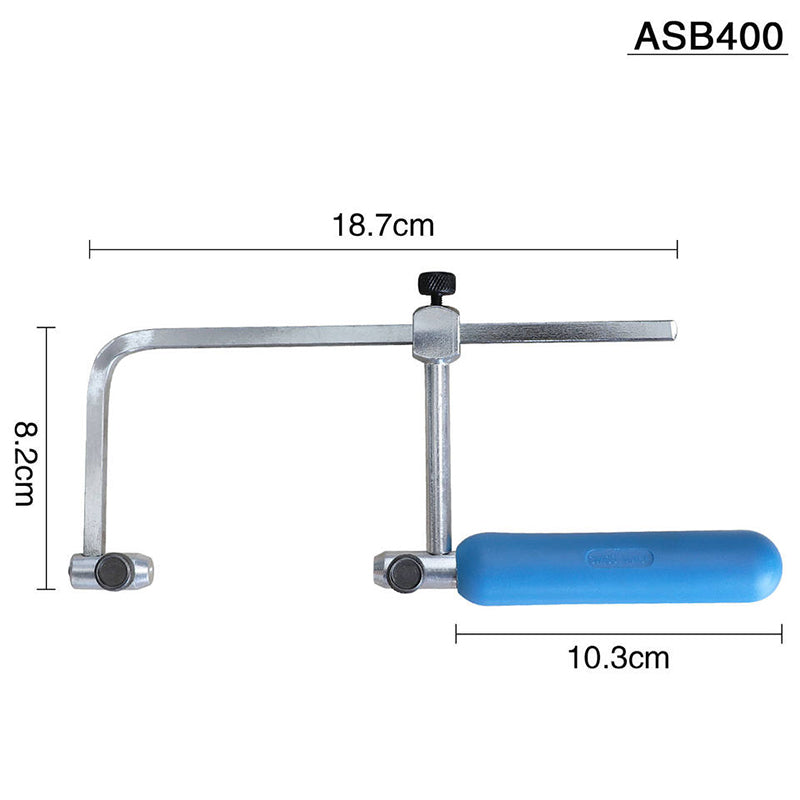

Dimension diagram for ASB400 adjustable fine jeweler saw frame showing 8.2cm depth and 18.7cm span.

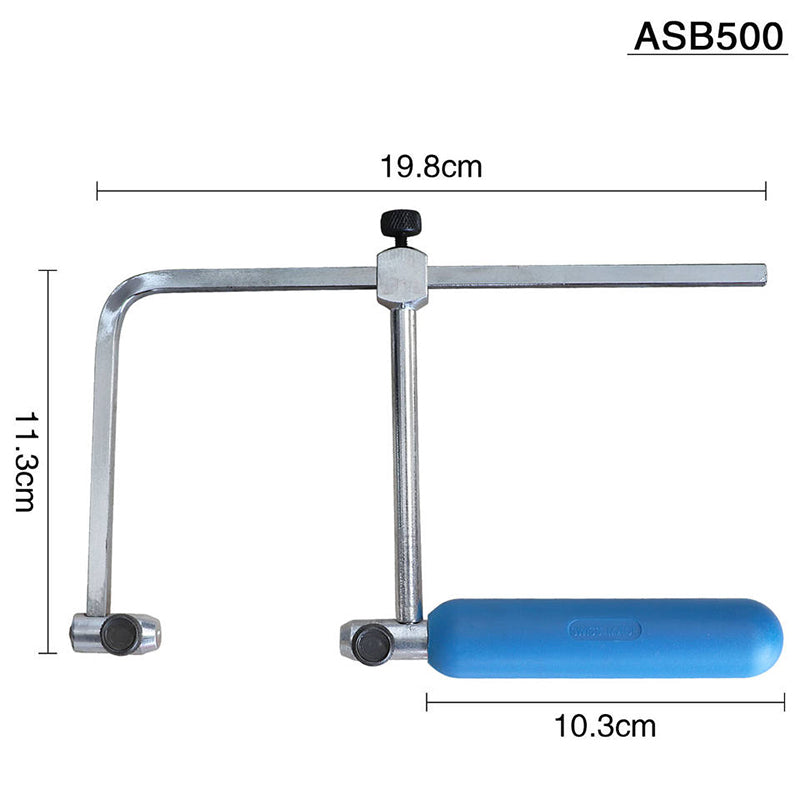

Dimension diagram for ASB500 deep-throat adjustable jeweler saw frame with 11.3cm throat depth.
Trio of Swiss style fine jeweler saw frames with ergonomic blue handles in fixed and adjustable models.
Fine jeweler adjustable saw frame shown with demonstration insets of ring carving wax cutting.
Three fine jeweler saw frame models with bottom panels demonstrating saw blade clamping on a bench pin.
Dimension diagram for ASB300 fixed fine jeweler saw frame showing 8.9cm depth and 26.7cm total length.
Dimension diagram for ASB400 adjustable fine jeweler saw frame showing 8.2cm depth and 18.7cm span.
Dimension diagram for ASB500 deep-throat adjustable jeweler saw frame with 11.3cm throat depth.
LUXGOLDTOOLSSKU: SFBB0008

Fine Jeweler's Saw Frame

$13.78
Shipping calculated at checkout.
Model: ASB300
Trio of Swiss style fine jeweler saw frames with ergonomic blue handles in fixed and adjustable models.
Fine Jeweler's Saw Frame
$13.78
Model: ASB300
Low Stock (10)

Item No.: SFBB0008 - SFBB0010

Type: Fixed / Adjustable

Depth: 76mm, 102mm

SFBB0008 - 76mm - Fixed(ASB300)

SFBB0009 - 76mm - Adjustable(ASB400)

SFBB0010 - 102mm - Adjustable(ASB500)

Payment & Security
American Express
Apple Pay
Bancontact
Google Pay
Mastercard
PayPal
Shop Pay
Union Pay
Visa

Related categories
Jeweler's saw frame and Super Pike saw blades set on a light grey background.Saw Blades & Frames

Execute delicate pierced fretwork, intricate pattern cutting, and smooth contouring across precious metals, craft sheets, and wax blanks. The Fine Jeweler's Saw Frame Series (ASB Series) features an ultra-lightweight, ergonomic design paired with a comfortable blue contoured handle and precision knurled thumb-screw clamps. Available in both fixed (76mm) and telescoping adjustable (76mm / 102mm) configurations, this saw frame delivers stable blade alignment and consistent tension control for delicate bench operations.

Why Choose the Fine Jeweler's Saw Frame Series

  • Precision Tensioning Mechanism: Threaded thumbscrew clamps with knurled round adjustment knobs provide uniform, non-slip locking on fine jeweler's saw blades (#8/0 through #6).

  • Fixed vs. Adjustable Frame Options:

    • Fixed Model (SFBB0008 / ASB300): Solid one-piece coated steel bow provides maximum rigidity and balanced tracking for standard-length saw blades.

    • Adjustable Models (SFBB0009 / SFBB0010): Sliding telescoping spine adjusts easily to fit different blade lengths or hold broken blade pieces to reduce consumable costs.

  • Two Throat Depth Capacities:

    • 76mm (3") Throat Depth: Compact, lightweight, and agile—ideal for ring sizing, fine scroll piercing, and detailed bench-pin fretwork.

    • 102mm (4") Throat Depth: Extended clearance allows continuous sawing across wider metal sheet layouts and large decorative plates.

  • Ergonomic Blue Comfort Grip (10.3 cm): Smooth, contoured polymer handle reduces finger fatigue and improves tactile feedback during prolonged sawing sessions.

Technical Specifications & Model Matrix

Item Code Model Number Frame Type Throat Depth (Working Depth) Frame Height Overall Length Handle Length & Color
SFBB0008 ASB300 Fixed 76 mm (3.0 in) 8.9 cm 26.7 cm 10.3 cm (Blue)
SFBB0009 ASB400 Adjustable 76 mm (3.0 in) 8.2 cm 18.7 cm (Beam) 10.3 cm (Blue)
SFBB0010 ASB500 Adjustable 102 mm (4.0 in) 11.3 cm 19.8 cm (Beam) 10.3 cm (Blue)
Parameter Metric Certified Factory Specification
Product Designation Fine Jeweler's Saw Frame (ASB Series)
Frame Material Hardened Spring Steel (Polished Chrome / Coated Finish)
Handle Material & Color Ergonomic Molded Comfort Polymer (Vibrant Blue)
Locking System Knurled Thumbscrews with Precision Clamp Blocks
Blade Compatibility Standard 130‑150 mm Piercing Saw Blades (#8/0 to #6) & Short Blade Segments

Bench Jewelers & Goldsmiths: Essential for cutting pierced galleries, sizing rings, trimming casting sprues, and trimming sheet metal settings.

Jewelry Artisans & Students: Great for learning fundamental piercing control, curve tracking, and saw blade tensioning.

Model Makers & Craft Technicians: Perfect for sawing acrylics, bone, copper, brass, sterling silver, and carving wax tubes.
