Grinding Machine
Grinding Machine
$896.58
/

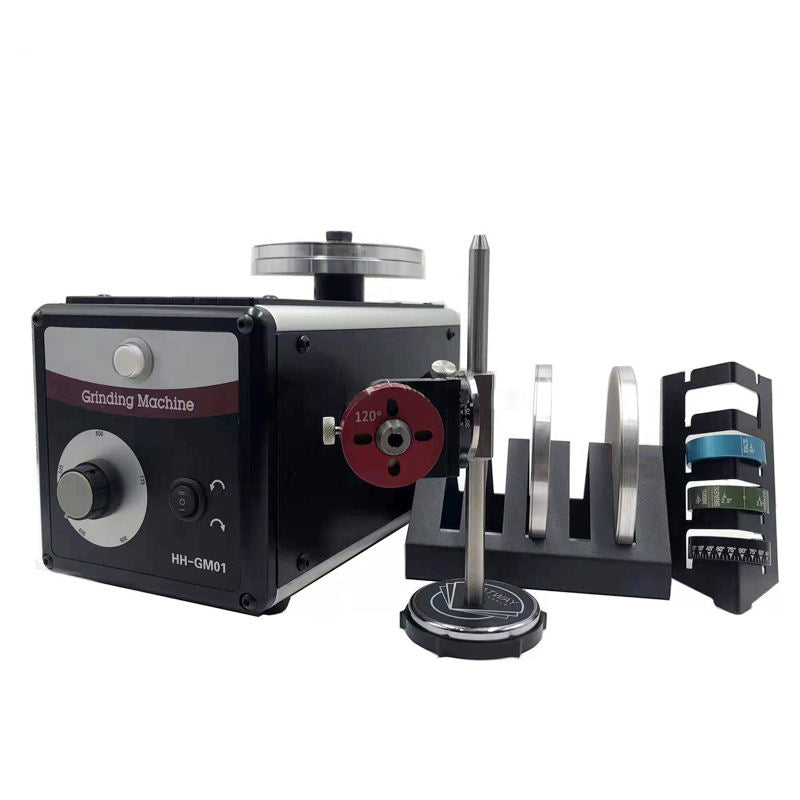

Achieve precise geometric face and heel angles on carbide and high-speed steel gravers. The HH-GM01 Benchtop Graver Grinding & Sharpening Machine is a variable-speed rotary flat lap system paired with a dual-angle sharpening fixture and multi-grit diamond laps. Driven by a 150W high-torque motor with bidirectional rotation control (400–900 RPM), it enables jewelers, stone setters, and hand engravers to shape, sharpen, and mirror-polish graver geometries with exact repeatability.
Key Features & Performance
-

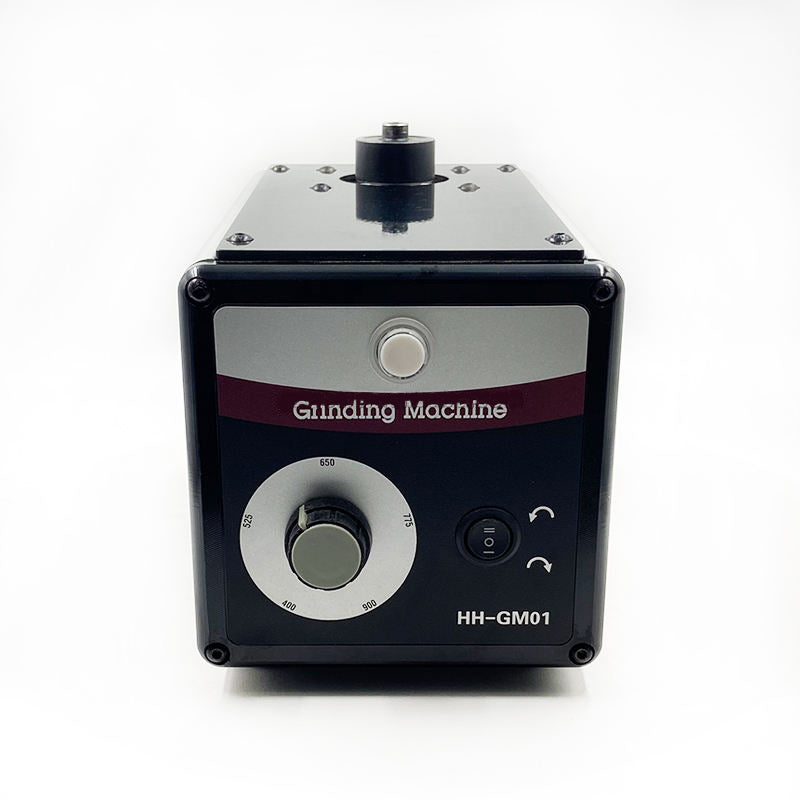

Variable Speed & Bidirectional Rotation (400–900 RPM): Front rotary dial allows fine speed adjustments across 400, 525, 650, 775, and 900 RPM. The forward/reverse toggle switch accommodates both left- and right-handed sharpening techniques.
-

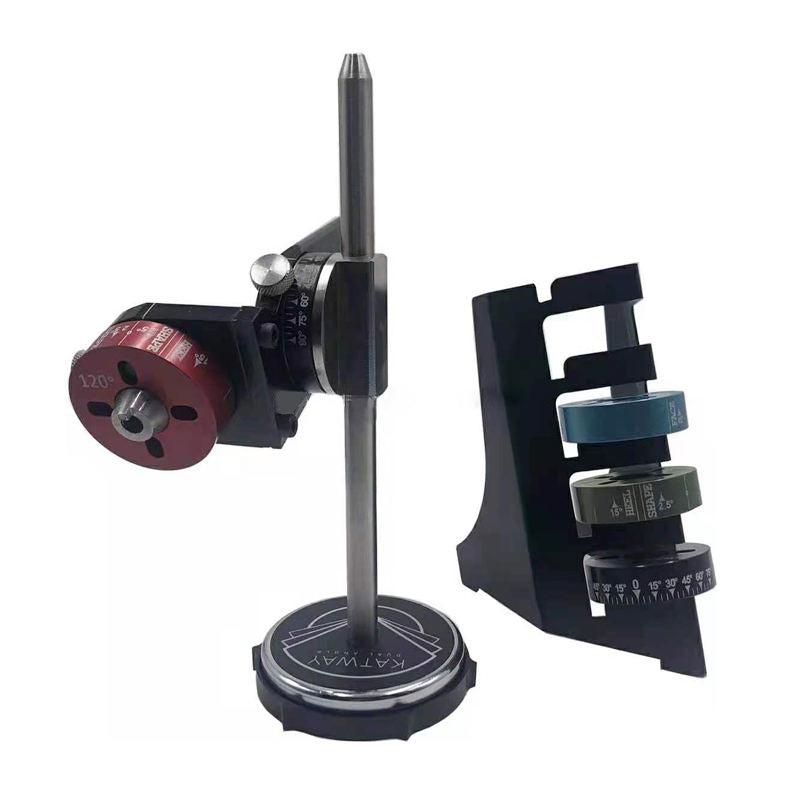

Precision Dual-Angle Sharpening Fixture: Equipped with an adjustable angle indexing post and calibrated degree dials (120° profile indexing, face/heel angle adjustments) to lock in exact cutting angles without manual guesswork.
-
Multi-Stage Diamond Lapping Discs: Includes 240, 600, and 1200 grit diamond grinding wheels to handle rapid stock profiling, intermediate honing, and fine micro-bevel polishing.
-
Heavy-Duty Vibration-Damped Housing: Substantial 12.5 kg chassis eliminates bench chatter and disc wobble, ensuring flat, distortion-free cutting facets on carbide and HSS tool blanks.
-
Universal Voltage Compatibility (80–240V): Wide-voltage electrical architecture (80–240V, 50/60Hz) ensures seamless operation across global workshop setups.
Technical Specifications
| Parameter Metric | Certified Factory Specification |
| Product Designation | Benchtop Graver Grinding & Sharpening System |
| Model Number | HH-GM01 |
| Operating Voltage |
AC 80–240V, 50/60Hz Universal Voltage
|
| Rated Power Input | 150W |
| Rotary Speed Range |
400 to 900 RPM (Variable Speed Control)
|
| Rotation Direction | Bidirectional (Forward / Reverse Switch) |
| Diamond Wheel Grits | 240 Grit (Roughing) / 600 Grit (Honing) / 1200 Grit (Finishing) |

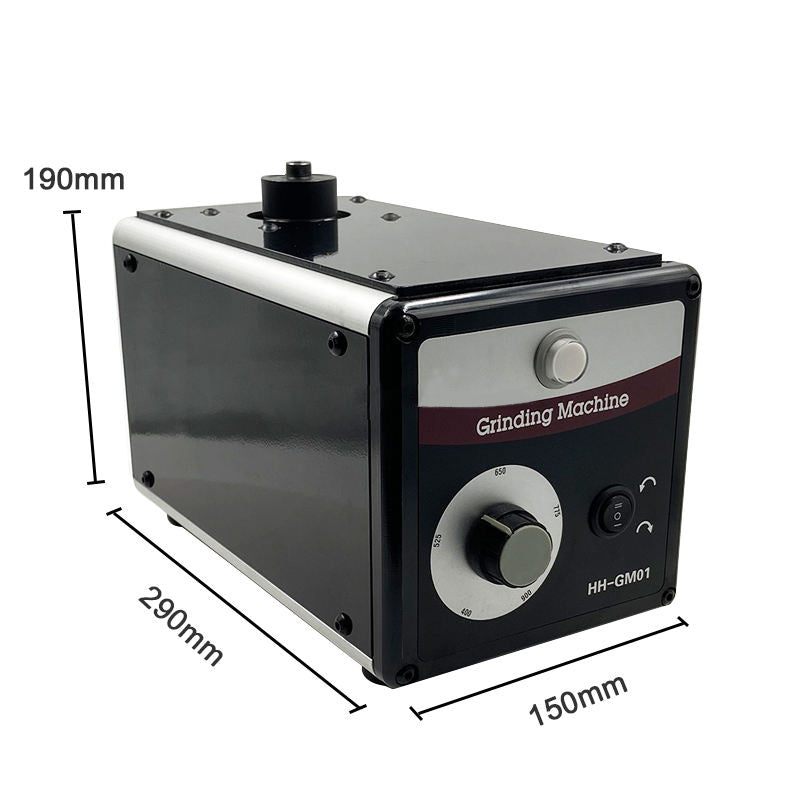

| Machine Dimensions |
290 × 150 × 190 mm (11.4 × 5.9 × 7.5 in)
|
| Shipping Dimensions |
550 × 260 × 320 mm
|
| Net Unit Weight | 12.5 kg (27.5 lbs) |

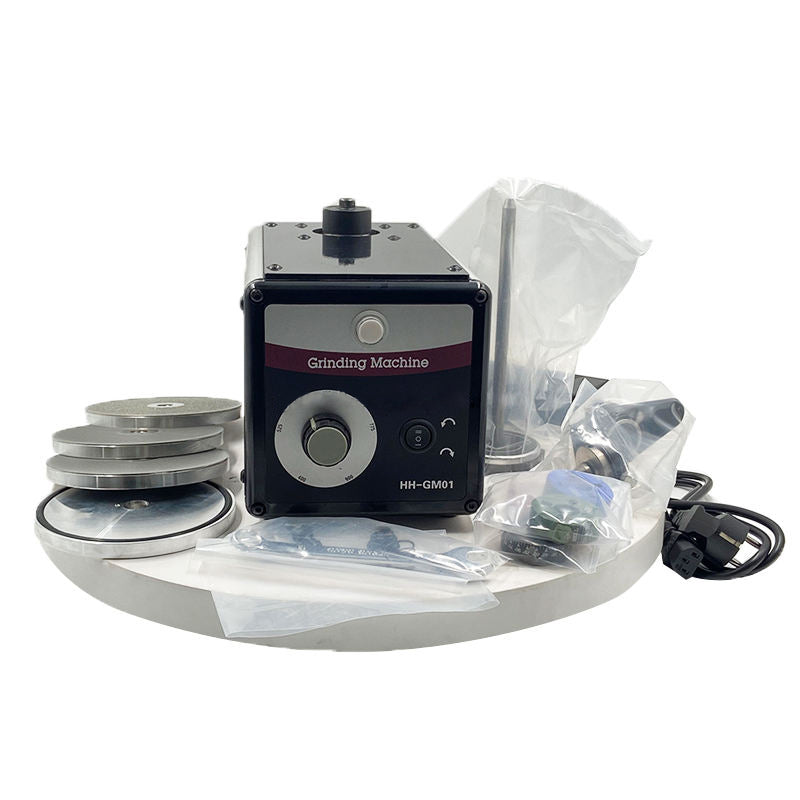

| Included Package Items |
1× HH-GM01 Grinder Console・1× Dual-Angle Sharpening Fixture Post・3× Diamond Lap Discs (240/600/1200)・Angle Indexing Collars & Storage Rack・Power Cord & Wrenches
|
