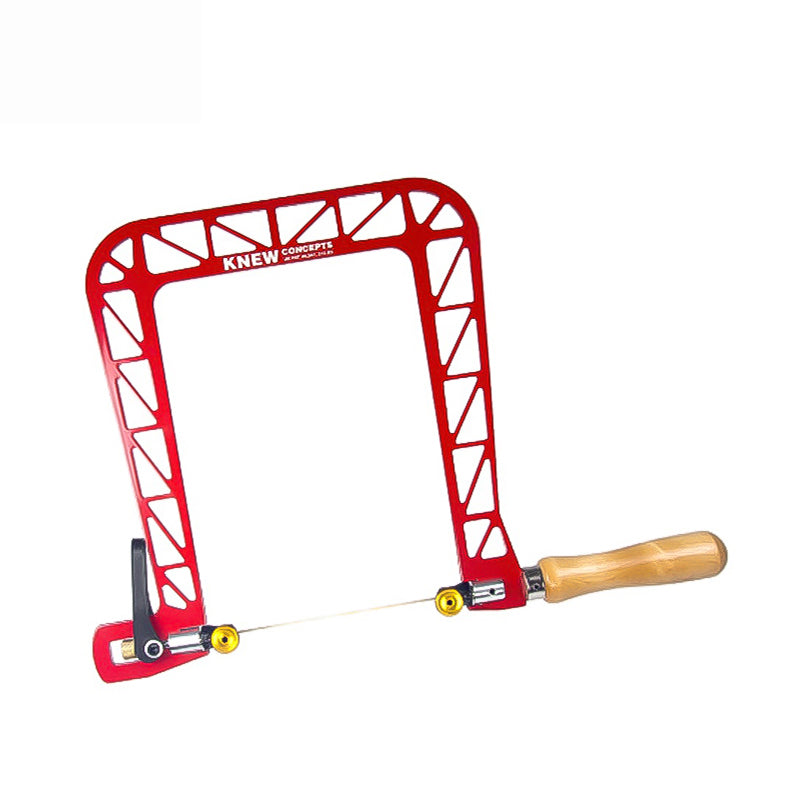

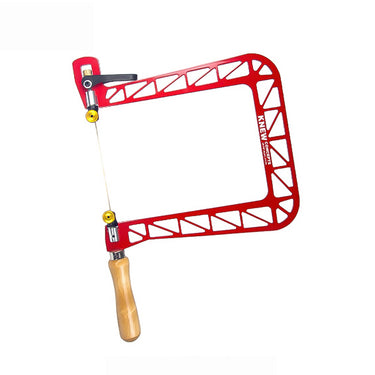

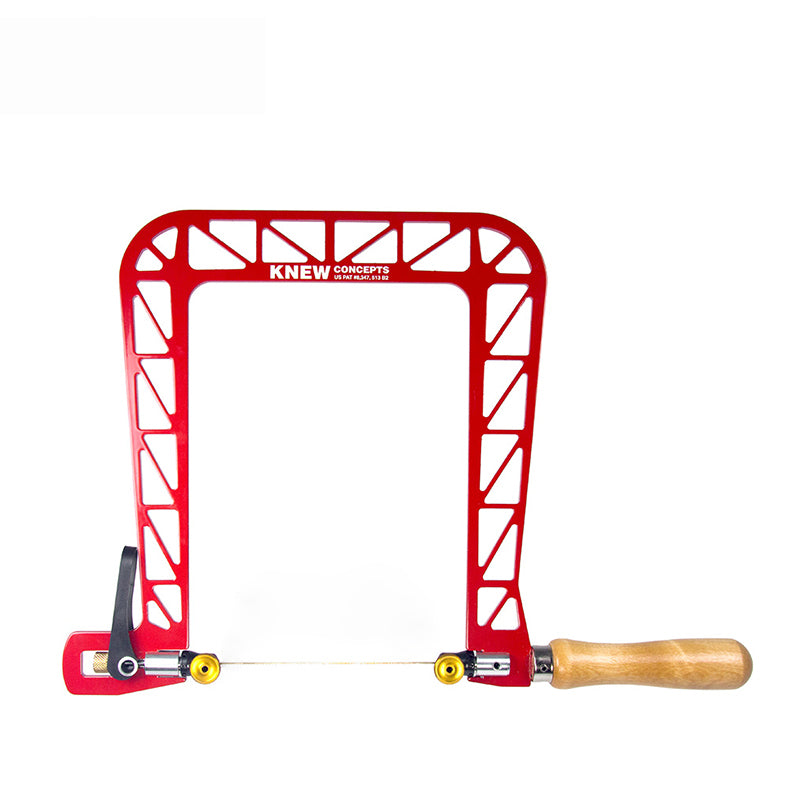

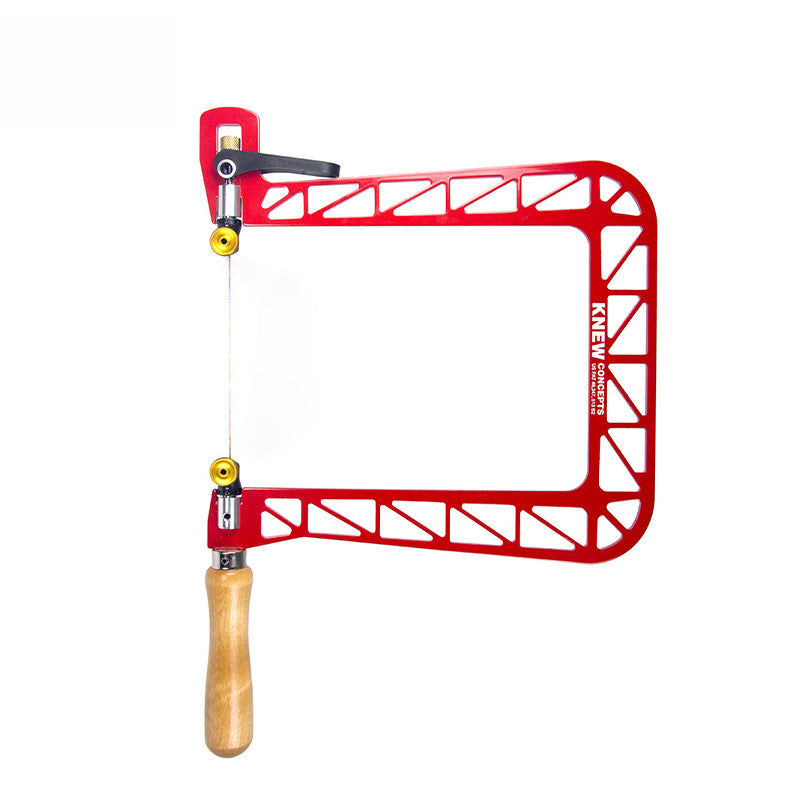

KNEWCONCEPTS® Mk4 8" Heavy Duty Fret Saw with Lever Tension and Swivel Blade Clamps

Pierce deep internal cutouts, saw off-axis curves, and maintain blade tension without blade deflection or premature breakage. The KNEWCONCEPTS® 8" Mk.IV Heavy Duty Fret Saw (#124.008CS) is manufactured in the USA from lightweight, powder-coated aircraft-grade aluminum. Engineered with an ultra-rigid truss frame, this 8-inch deep-throat saw pulls 50 to 60 pounds of tension—up to 6 times more than traditional steel jeweler's saw frames.

The Mk.IV version is built thicker and slightly heavier than earlier Mk3 models to dampen vibrations, yet it weighs just 275 grams to eliminate hand strain during production runs. Featuring an instant Cam-Release Tension Lever for rapid repetitive piercing and 360° Swivel Blade Clamps with 45° click-stops, it allows artisans to cut in any direction without frame interference. Each saw comes ready to cut, equipped with a fine-tension adjustment thumb screw, an integrated 5-1/8″ blade measuring guide, and a premium #7 Fix Blue fret saw blade.

Why Choose the KNEWCONCEPTS® 8" Mk.IV Fret Saw

• High-Tension Truss Architecture (50–60 lbs): Pulls up to 60 pounds of blade tension, virtually eliminating blade flexing, wandering, and harmonics. Blades cut cleaner, track straighter lines, and break far less often.

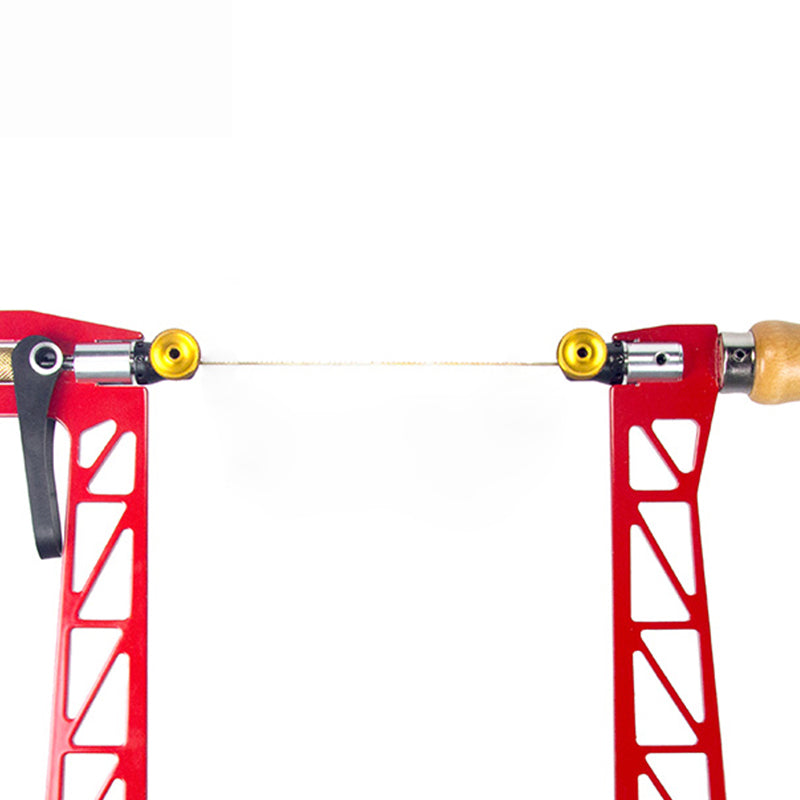

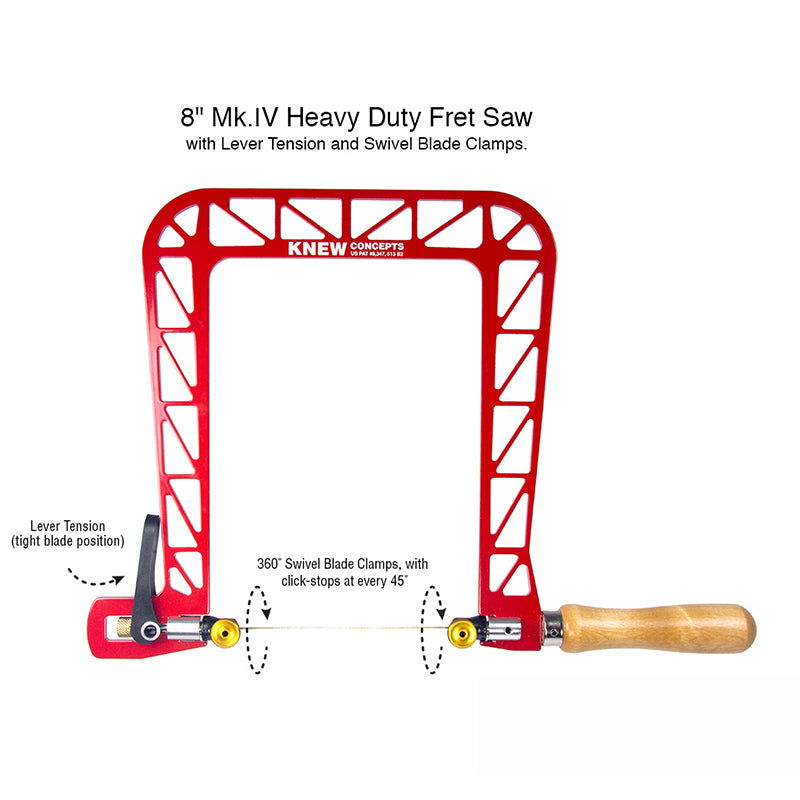

• 360° Rotating Swivel Blade Clamps: Spring-loaded blade clamps rotate a full 360° and click firmly into locking detents every 45°, letting you make long continuous rip cuts down sheet metal or wood without the 8" frame colliding with the material.

• Instant Cam-Release Tension Lever: Speeds up piercing work. Flip the lever forward to release blade tension, thread the blade through a drilled pilot hole, reclamp, and flip the lever back to instantly restore your exact tension setting.

• Fine-Tension Adjustment Screw: Knurled brass fine-tuning thumb screw allows micro-adjustments to blade tension for delicate #8/0 jeweler blades up to heavy fret saw blades.

• Durable Powder-Coated Aircraft Aluminum: Thicker, rigid cross-section provides solid bench feel while remaining light at only 275 grams. The bright red powder-coated finish resists scratches and shop chemicals.

• Integrated 5-1/8″ Blade Ruler: Laser-marked measurement ruler etched directly into the truss spine allows quick length checks before clamping blades.

• Ergonomic Hardwood Handle: Turned wooden handle provides a comfortable, natural grip for controlled vertical sawing strokes.

Technical Specifications & Product Matrix
