Miller® SMITH Little Torch Tip - 6in (153mm) Heating Tips

Expand the thermal capacity of your micro-torch to melt precious metals, pre-heat heavy castings, and anneal large metal plates without purchasing a separate large torch handle. The Miller® SMITH The Little Torch™ 6-Inch (153mm) Rosebud Heating Tip Series features extended copper tubing with multi-port recessed nozzle ends engineered to melt up to 3 ounces of gold or silver. Available in a 4-hole configuration (#13-662) for Acetylene, Hydrogen, and Propylene, and a 6-hole configuration (#13717) for Propane and Natural Gas, these tips provide high BTU heat transfer while maintaining stable, blow-out resistant flames.

Why Choose Genuine Miller® SMITH Little Torch Heating Tips

• High-Capacity Metal Melting (Up to 3 oz): Converts The Little Torch™ into a compact crucible melting torch capable of melting up to 3 oz (approx. 93 g) of gold, sterling silver, or bronze for ingot casting and scrap recycling.

• Extended 6-Inch (153 mm) Reach: Long angled copper extension tube keeps hands safely away from radiant crucible heat, splashing fluxes, and glowing metal stock.

• Specialized Multi-Orifice Flame Pattern:

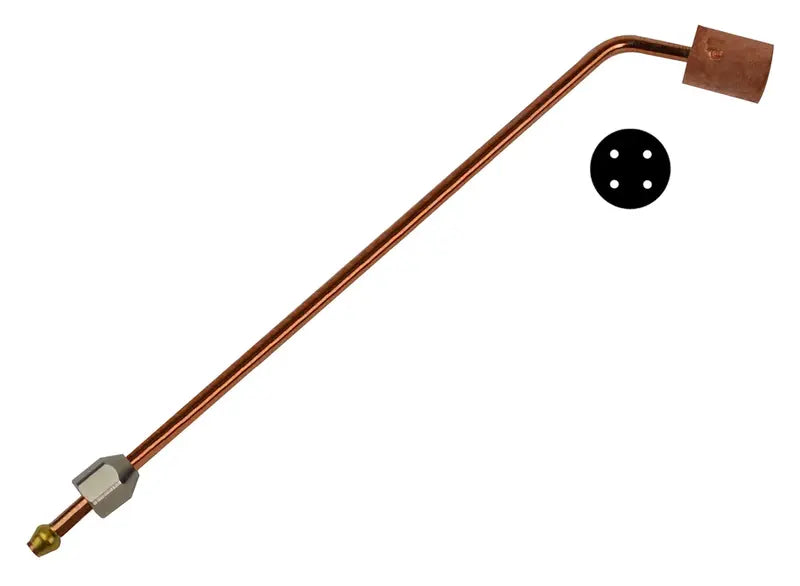

  • 4-Hole End (#13-662): Engineered for high-temperature fuel gases (Acetylene, Hydrogen, Propylene), delivering focused cluster heat up to 8,000 BTU/hr.

  • 6-Hole End (#13717): Features a recessed multi-port cup design optimized for lower-velocity fuel gases (Propane, Natural Gas), producing broad heat envelopes up to 6,000 BTU/hr.

• 100% Factory Flame Tested: Every heating tip is individually flame-tested at the factory to guarantee flame stability, optimal gas mixing, and zero backfire.

• Airtight Hex Coupling Nut: Precision-machined threaded seating nut mounts securely onto standard Little Torch™ handles without gas leakage.

Technical Specifications & Fuel Matrix
