Product name
|
ORCA® MAÇARICO ORCA M75 M75CMF KIT
|
|

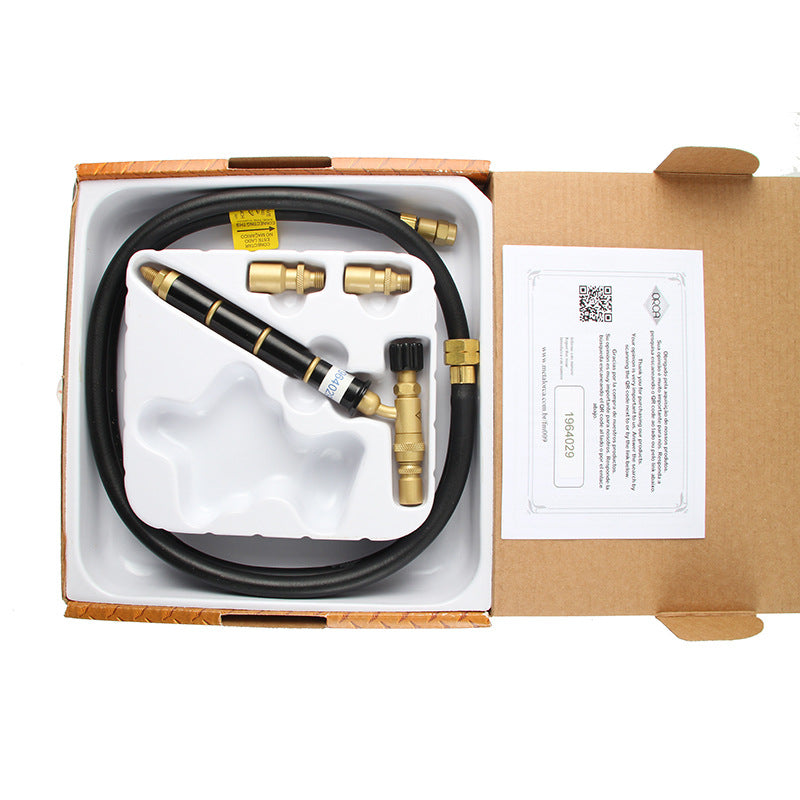

Includes
|

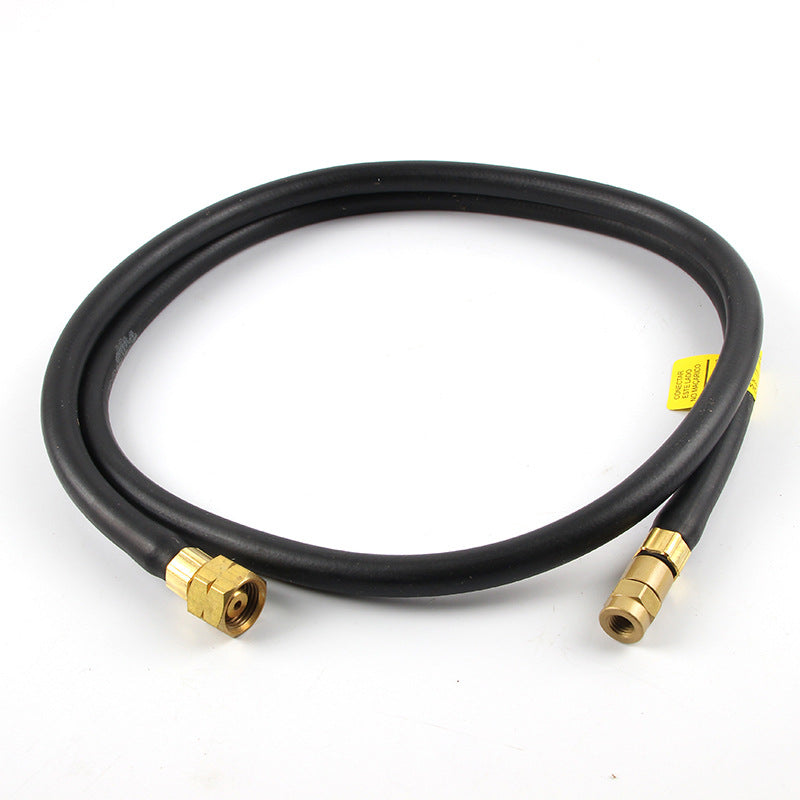

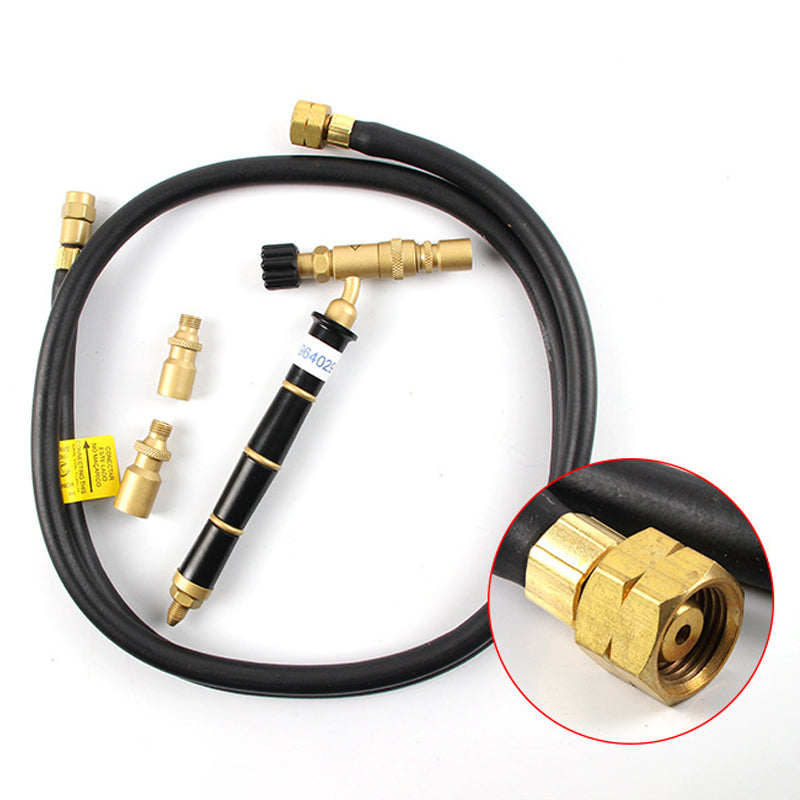

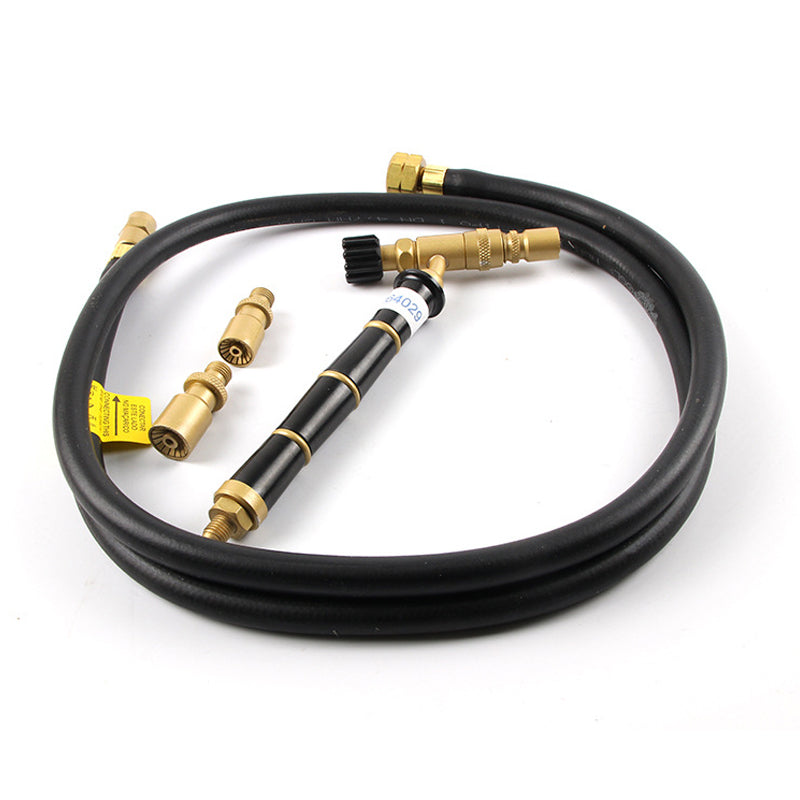

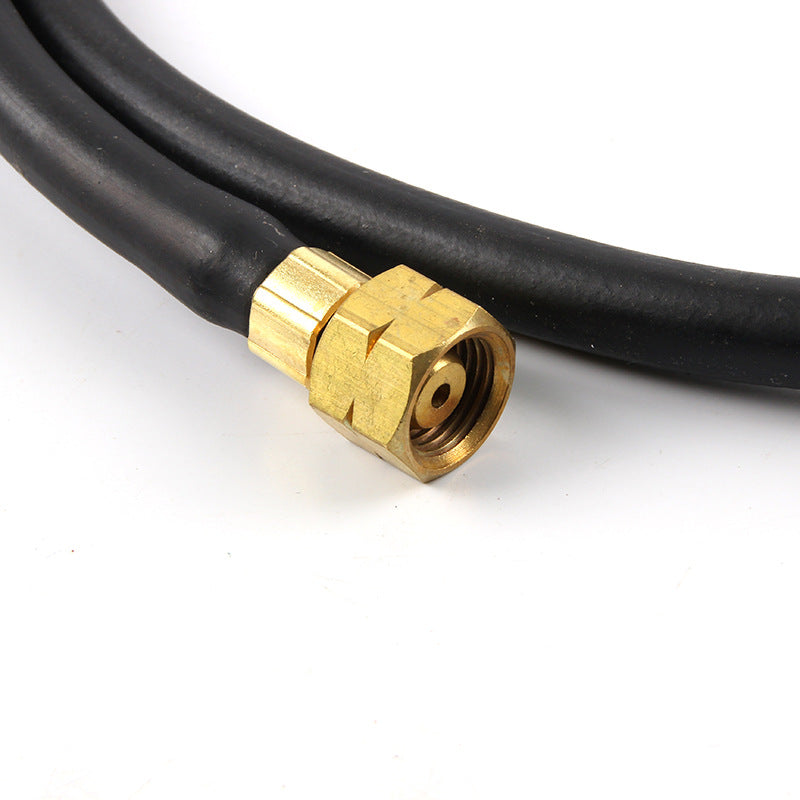

M75 TORCH WITH 3 NOZZLES AND 1.25MT US Standard LPG Hose
|
|
Item code
|
HWAC00287
|
|
Model
|
M75 CMF
|
|
Brand
|
ORCA
|
|
Place of origin
|
Brazil
|
|
Material
|
Brass + Bakelite
|
|
Nozzle diameter
|
2 mm /2.6 mm /3.8 mm
|
|
Maximum temperature
|
1200 – 1300 ºC
|
Key Features
-
US Standard Compatibility: Specifically equipped with a 1.25-meter US Standard LPG hose, ensuring a perfect and safe fit for North American gas connection requirements.
- Atmospheric Precision: No oxygen tanks or air compressors required. This torch draws air naturally, offering a portable and cost-effective solution for jewelry making and dental labs.
- Exclusive Needle-Injector System: Unlike standard torches, ORCA’s patented system maintains high gas velocity even at low flow. This allows you to produce a tiny, needle-sharp flame that remains intense and stable for precision soldering.
- High Thermal Efficiency: Maximizes the calorific potential of Propane/LPG, enabling rapid heating and efficient melting of precious metals.
- Ergonomic & Durable Build: The solid brass body ensures long-term impact resistance, while the Bakelite handle provides excellent thermal insulation for comfortable use during extended tasks.
Tip & Flame Selection
| Tip Size | Flame Ø | Flame Length | Max Temp | Best For |
| Small | 2.0 mm | 15 – 50 mm | 1200 ºC | Fine chains & delicate repairs |
| Medium | 2.6 mm | 20 – 60 mm | 1250 ºC | Standard ring sizing & soldering |
| Large | 3.8 mm | 25 – 70 mm | 1300 ºC | Small casting & annealing |
