Product name
|
ORCA® MAÇARICO ORCA M75 M75CTG KIT
|
|
Type
|

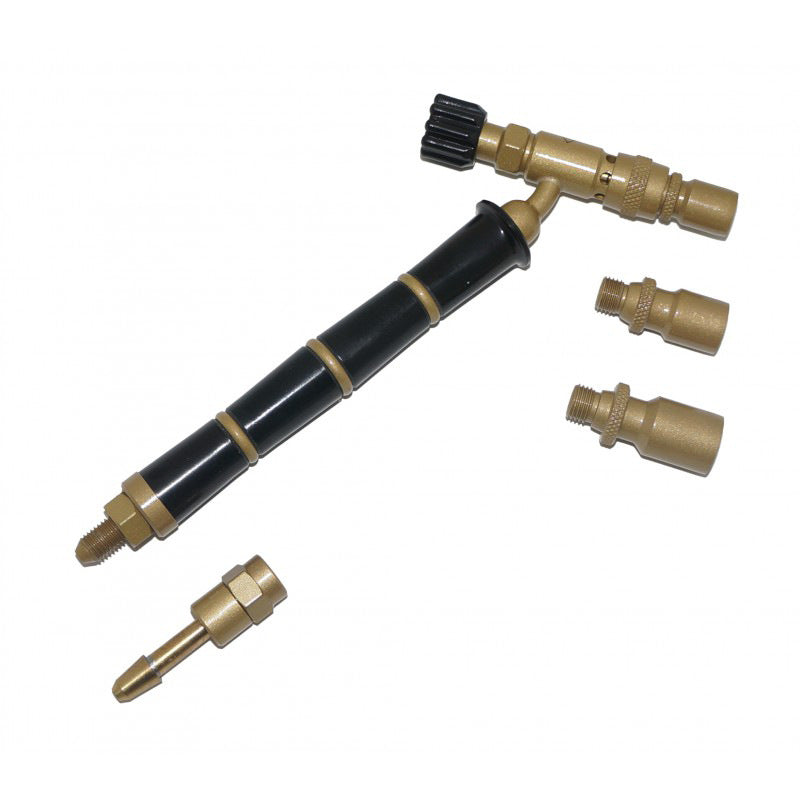

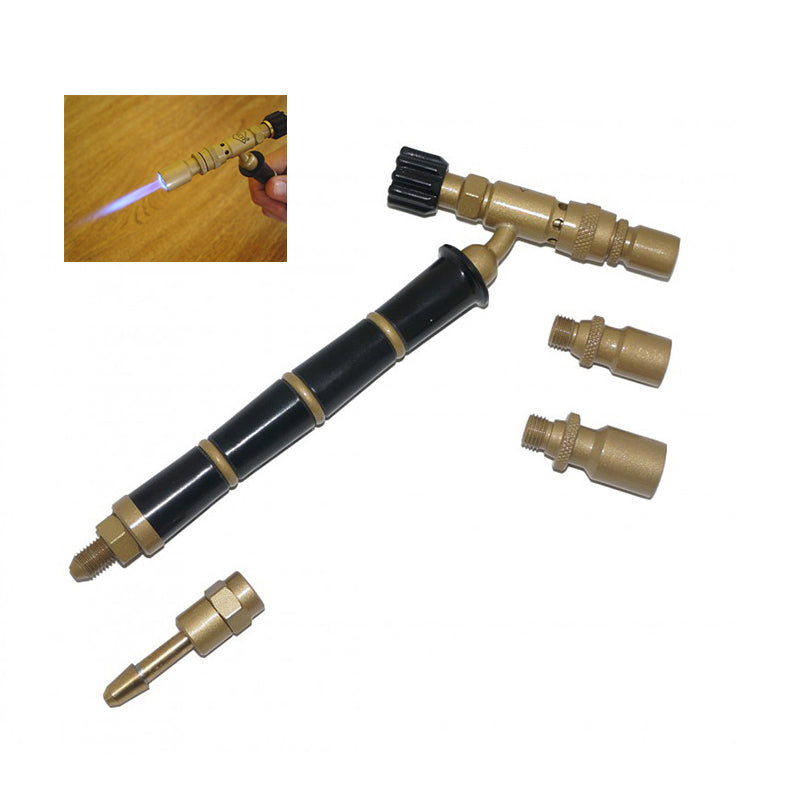

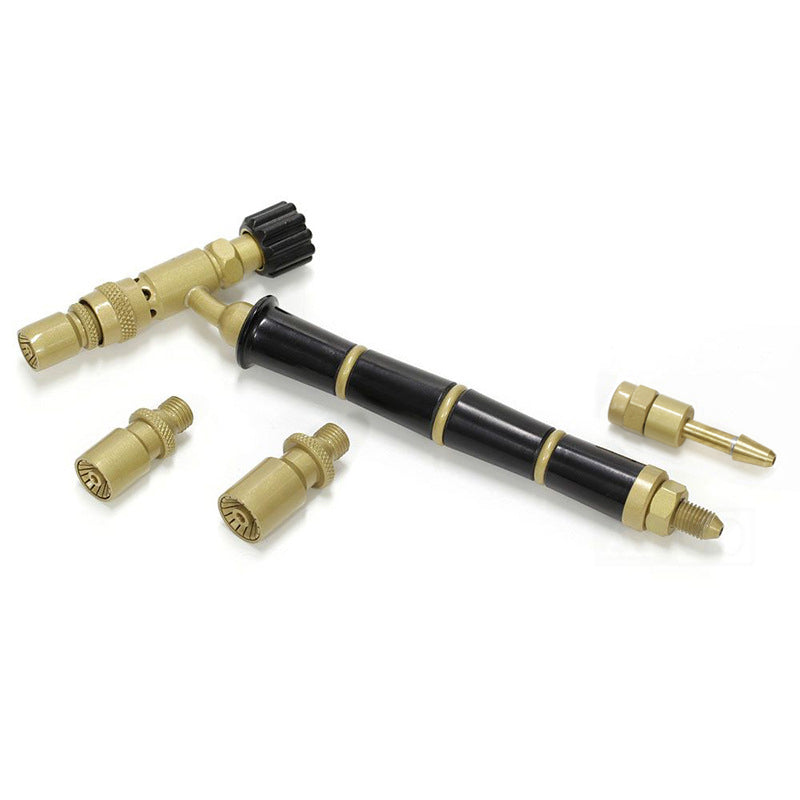

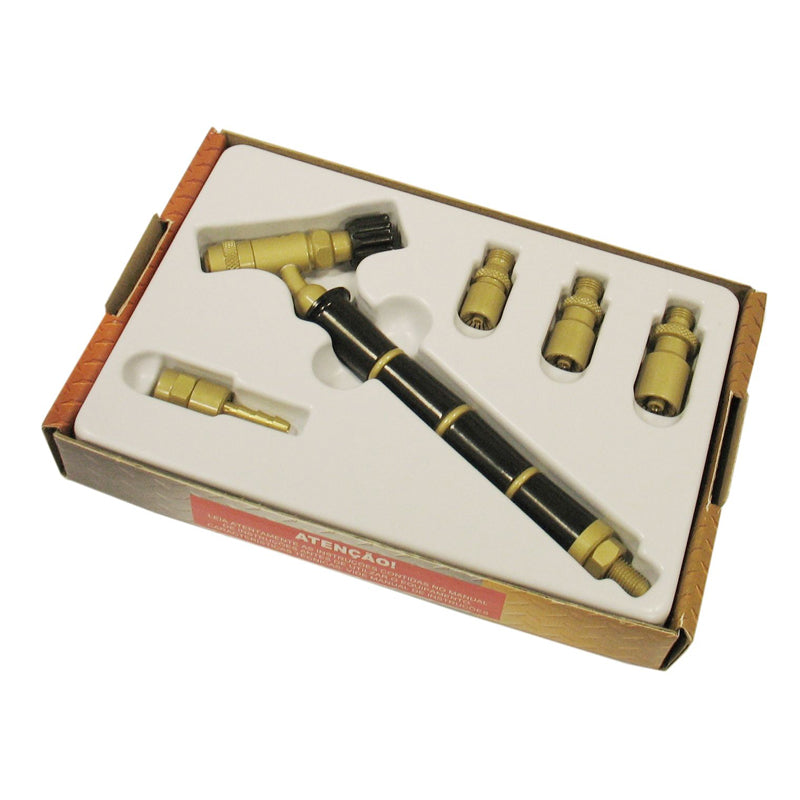

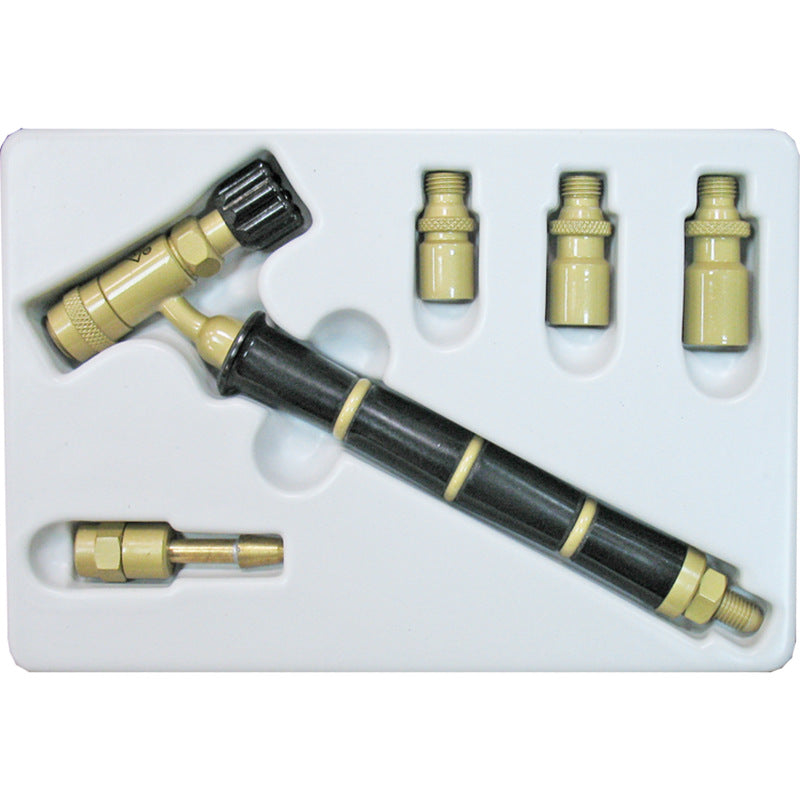

M75 TORCH WITH 3 NOZZLES AND HOSE CONNECTOR
|
|
Item code
|
HWAC0028
|
|
Model
|
M75 CTG
|
|
Brand
|
ORCA
|
|
Place of origin
|
Brazil
|
|
Material
|
Brass + Bakelite
|
|
Nozzle diameter
|
2 mm /2.6 mm /3.8 mm
|
|
Maximum temperature
|
1200 – 1300 ºC
|

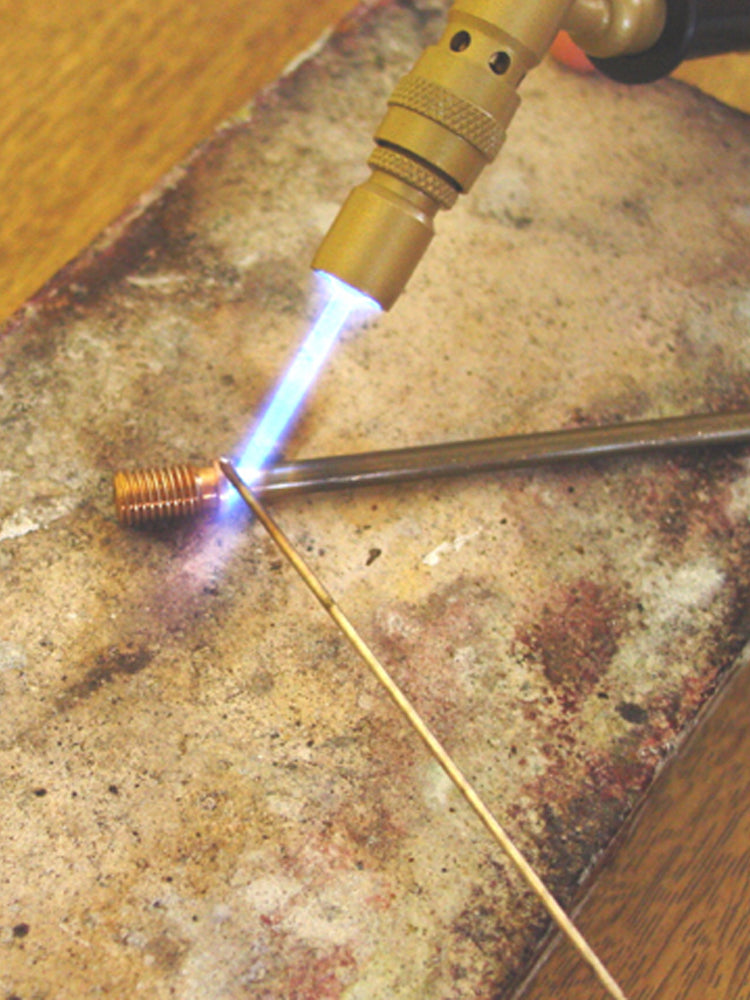

The ORCA® MOD-75 is the industry standard for jewelry making, dental labs, and precision brazing. Its patented air-induction technology allows you to achieve a powerful 1300°C flame using only LPG (Propane/Butane), without the need for oxygen tanks or air compressors.
|
Sizes and properties of tips for a jewelry burner:
|
|||
|
tip
|
flame diameter (mm)
|
flame length (mm)
|
max flame temperature °C
|
|
small
|
2.0
|
15 – 50
|
1200
|
|
medium
|
2.6
|
20 – 60
|
1250
|
|
big
|
3.8
|
25 – 70
|
130
|
Key Benefits
-
No Oxygen Required: Atmospheric design draws air naturally. Plug-and-play setup saves space and eliminates the cost of oxygen tanks.
-
Patented Needle Valve: Provides extremely precise flame control. Even at the smallest setting, the flame remains intense and stable.
-
360° Maneuverability: Equipped with a rotatable hose connector that prevents tangling, ensuring total freedom of movement during intricate work.
-
Industrial Durability: Solid brass body and heat-resistant Bakelite handle ensure long-lasting performance and impact resistance.
