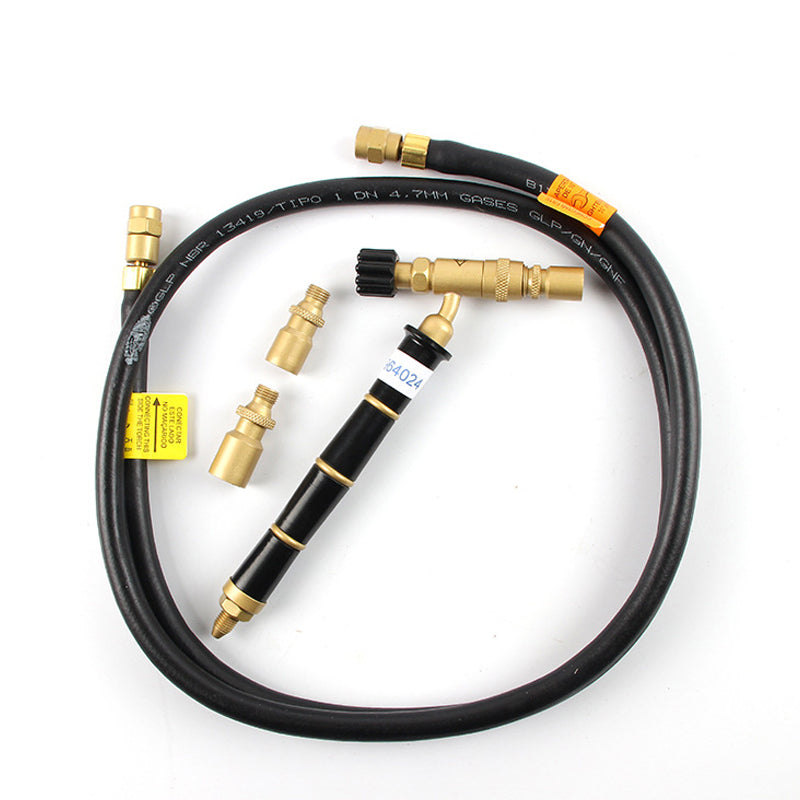

ORCA M75cmb precision manual soldering torch handle body shown with extra brass tips and a black coiled gas hose

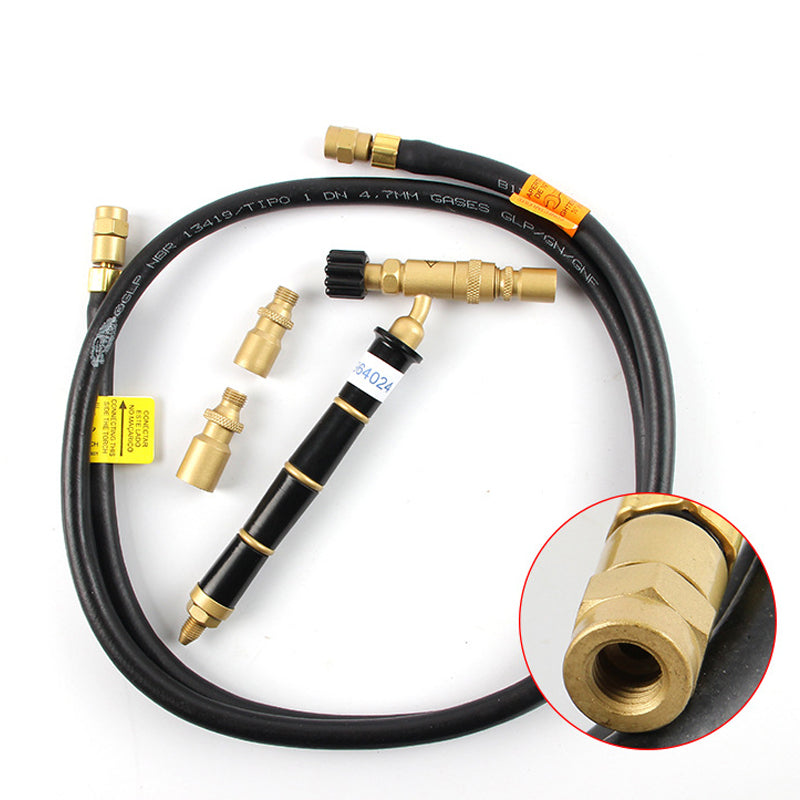

ORCA M75cmb torch and accessories on a coiled hose with a circular inset highlighting the internal brass connection

Retail cardboard packaging box for the ORCA M75 professional manual micro torch for LPG gas

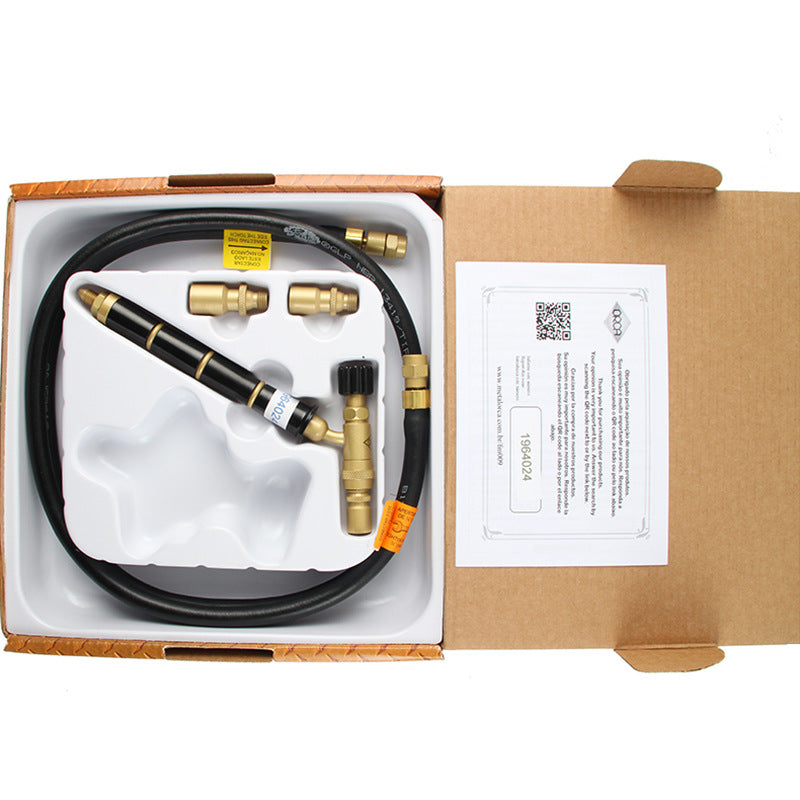

Top down view of the open box showing the ORCA M75cmb torch handle body and accessories secured inside a plastic tray

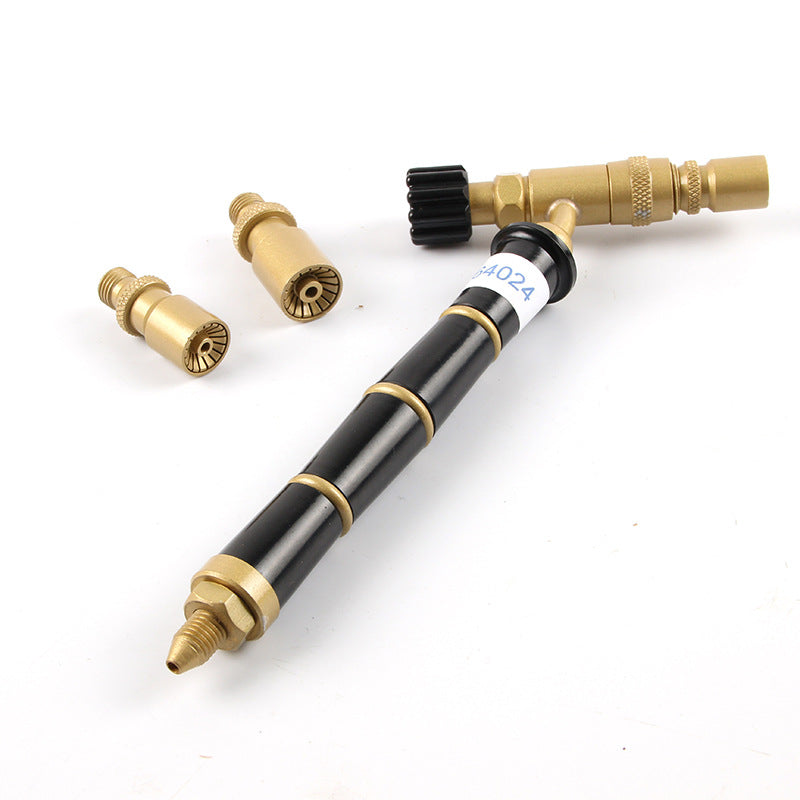

Close up of the ORCA M75cmb torch handle body next to two individual brass burner tips on a white background

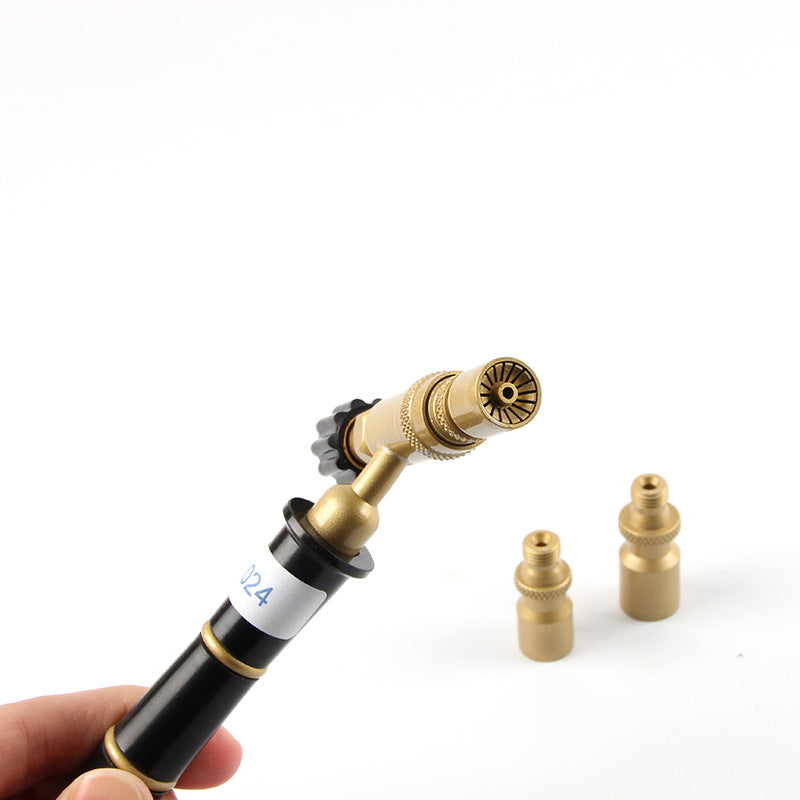

Hand-held perspective view focusing on the brass burner nozzle end attached to the ORCA M75cmb torch handle

ORCASKU: HWAC00285

ORCA® MAÇARICO M75 M75CMB KIT

Name: ORCA® MAÇARICO M75 M75CMB KIT
Brand: ORCA
SKU: HWAC00285
Price: 193.37 USD
Availability: InStock

$193.37

Shipping calculated at checkout.

Product variants

ORCA® MAÇARICO M75 M75CMB KIT

$193.37

Low Stock (10)

Brand Name: ORCA

Place of Origin: Brazil

Model Number: HWAC00285

Material: Copper

Weight: 750g

Application: Jewelry Welding

Use: For Necklace Making, For Bracelet Making, For Earring Making, For Ring Making, For Garment Making

Payment & Security

Product name	ORCA® MAÇARICO ORCA M75 M75CMB KIT
Includes	M75 TORCH WITH 3 NOZZLES AND 1.25MT HOSE
Application	Applicable to M75CPL/CPA/CPR/CRD, can be used with Tank Connector RELH2S/RELH1S/REBT1S
Item code	HWAC00285
Model	M75 CMB
Brand	ORCA
Place of origin	Brazil
Material	Brass + Bakelite
Nozzle diameter	2 mm /2.6 mm /3.8 mm
Maximum temperature	1200 – 1300 ºC

Tip & Flame Selection

Tip Size	Flame Ø	Flame Length	Max Temp	Best For
Small	2.0 mm	15 – 50 mm	1200 ºC	Fine chains & micro-soldering
Medium	2.6 mm	20 – 60 mm	1250 ºC	General soldering & ring resizing
Large	3.8 mm	25 – 70 mm	1300 ºC	Small casting & heavy annealing

The ORCA® M75 M75CMB Kit is a versatile, commercial-grade atmospheric brazing system engineered as a high-compatibility core setup for independent jewelers, production workshops, and specialized dental laboratories.

Manufactured in Brazil, this highly adaptable configuration serves as an ideal baseline framework for dental technicians and jewelry artisans who already own a tank regulator or need a premium replacement torch body and gas line. Operating entirely on Liquefied Petroleum Gas (LPG) via natural atmospheric air intake, it eliminates the need for bulky oxygen tanks or noisy external compressors, making it a portable and streamlined solution for evolving workshop setups. Built with a solid brass mechanical core and a highly insulated Bakelite handle, the M75 CMB delivers maximum impact resistance and excellent thermal isolation during long hours of fabrication and component assembly.

Modular System Upgrades: Perfect for workshops that already own specialized tank hardware and want to replace an old handpiece or upgrade their gas lines without re-purchasing an entire tank regulation assembly.

Intricate Micro-Soldering Tasks: Delivers an incredibly fine, needle-sharp flame profile that excels at joining fine gauge wire chains, closing small jump rings, and performing micro-soldering repairs under magnification.

General Bench Assembly & Melting: Easily handles mainstream ring resizing, bezel-setting fabrications, and prong restoration while providing a high-BTU output for small-scale casting, annealing sheet stock, and processing scrap metal button flows.
