ORCA® MAÇARICO M75 M75CMF KIT

Product name	ORCA® MAÇARICO ORCA M75 M75CMF KIT

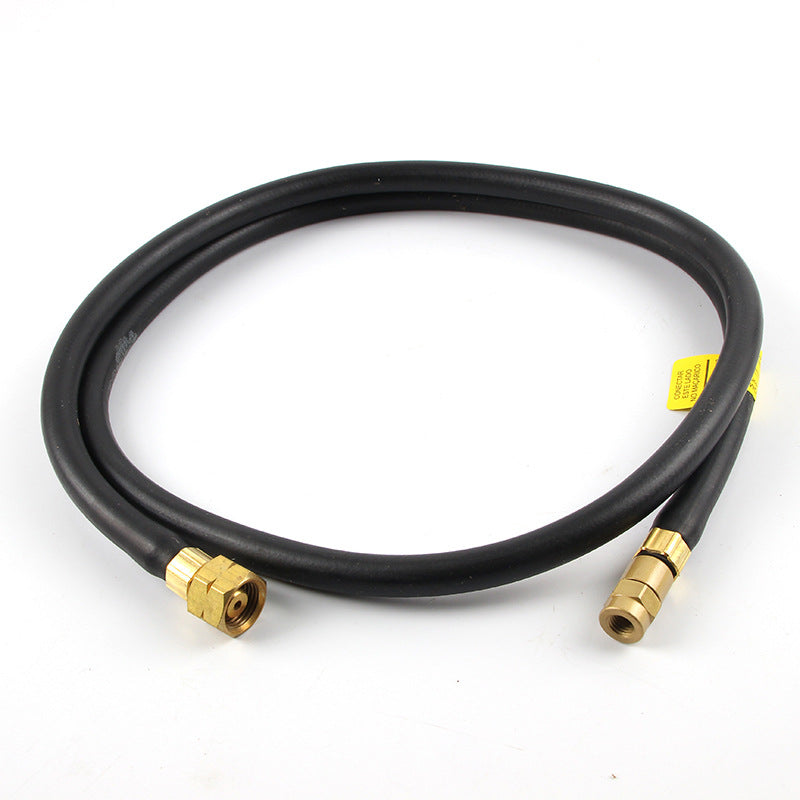

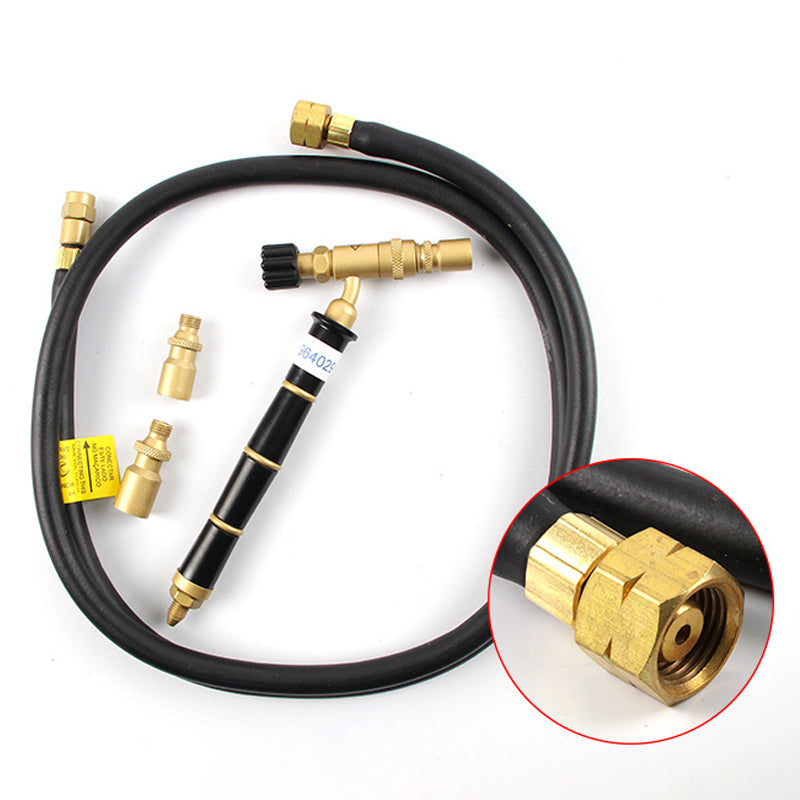

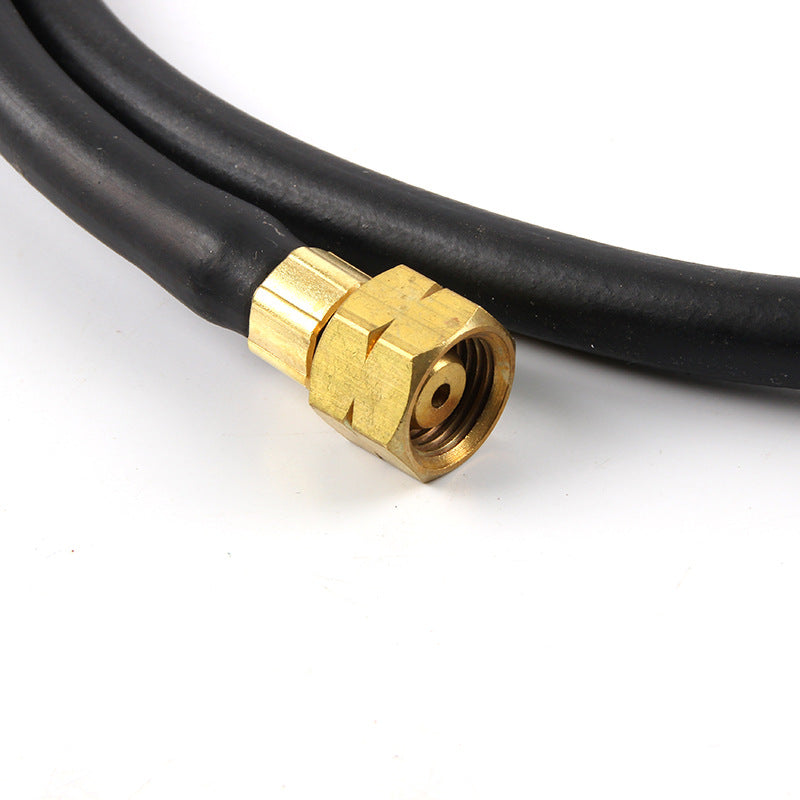

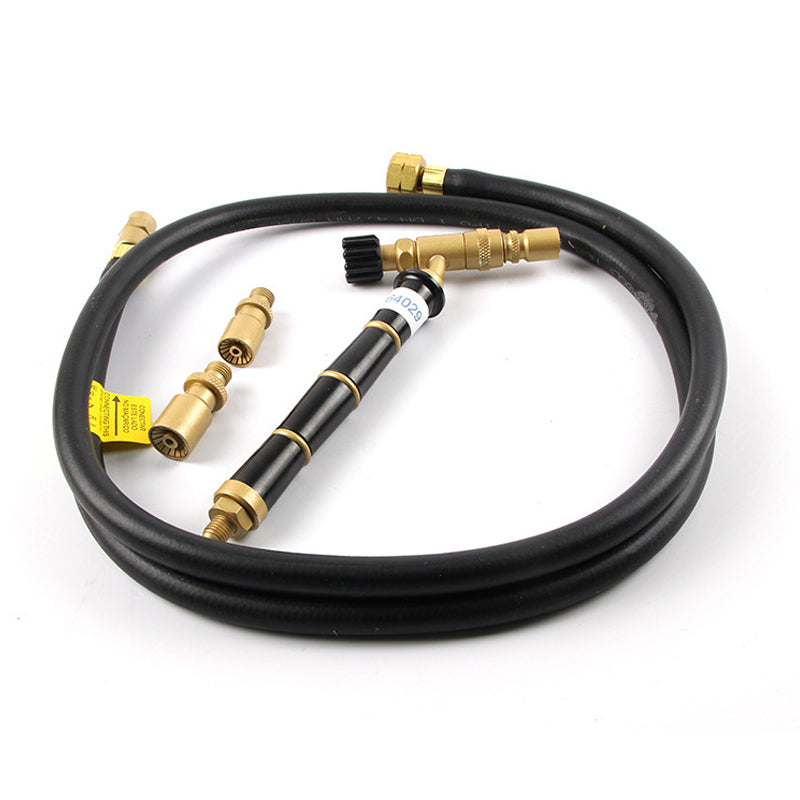

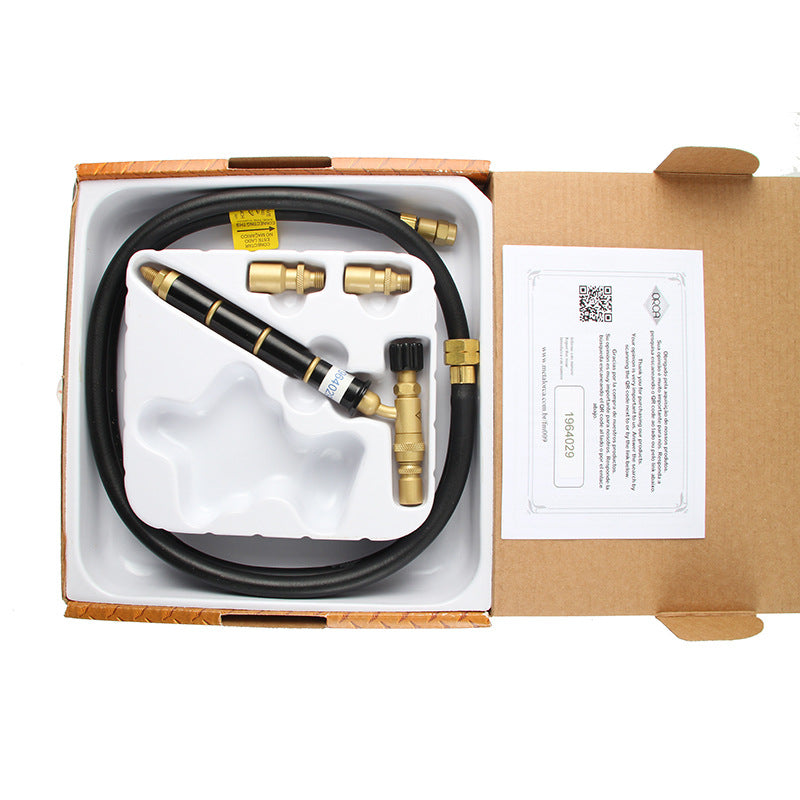

Includes	M75 TORCH WITH 3 NOZZLES AND 1.25MT US Standard LPG Hose
Item code	HWAC00287
Model	M75 CMF
Brand	ORCA
Place of origin	Brazil
Material	Brass + Bakelite
Nozzle diameter	2 mm /2.6 mm /3.8 mm
Maximum temperature	1200 – 1300 ºC



Key Features

• US Standard Compatibility: Specifically equipped with a 1.25-meter US Standard LPG hose, ensuring a perfect and safe fit for North American gas connection requirements.

• Atmospheric Precision: No oxygen tanks or air compressors required. This torch draws air naturally, offering a portable and cost-effective solution for jewelry making and dental labs.
• Exclusive Needle-Injector System: Unlike standard torches, ORCA’s patented system maintains high gas velocity even at low flow. This allows you to produce a tiny, needle-sharp flame that remains intense and stable for precision soldering.
• High Thermal Efficiency: Maximizes the calorific potential of Propane/LPG, enabling rapid heating and efficient melting of precious metals.
• Ergonomic & Durable Build: The solid brass body ensures long-term impact resistance, while the Bakelite handle provides excellent thermal insulation for comfortable use during extended tasks.



Tip & Flame Selection

Tip Size	Flame Ø	Flame Length	Max Temp	Best For
Small	2.0 mm	15 – 50 mm	1200 ºC	Fine chains & delicate repairs
Medium	2.6 mm	20 – 60 mm	1250 ºC	Standard ring sizing & soldering
Large	3.8 mm	25 – 70 mm	1300 ºC	Small casting & annealing
