ORCA® MAÇARICO M75 M75CMG KIT

Product name	ORCA® MAÇARICO ORCA M75 M75CMG KIT

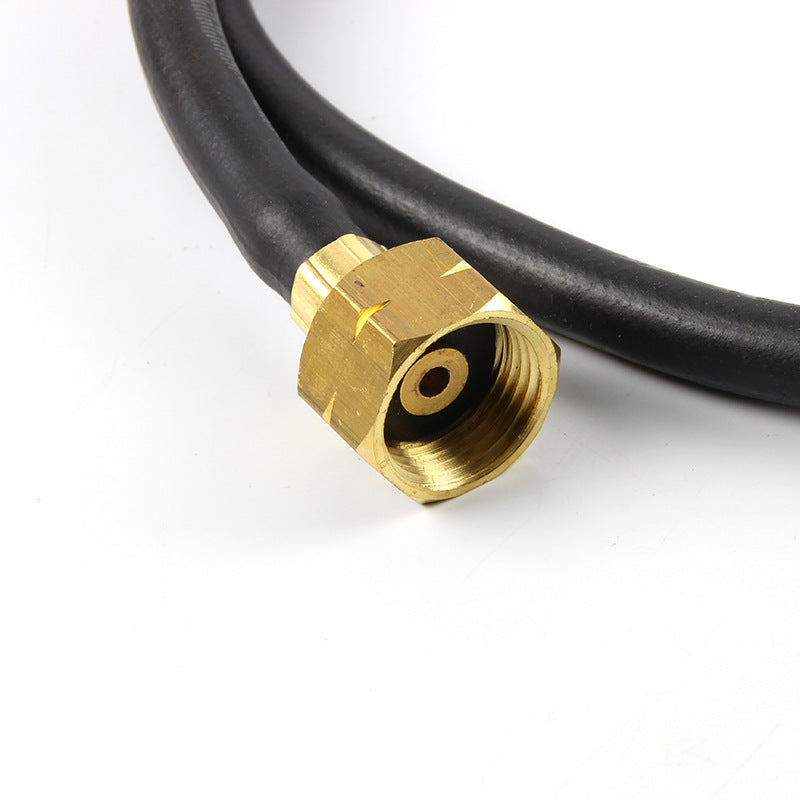

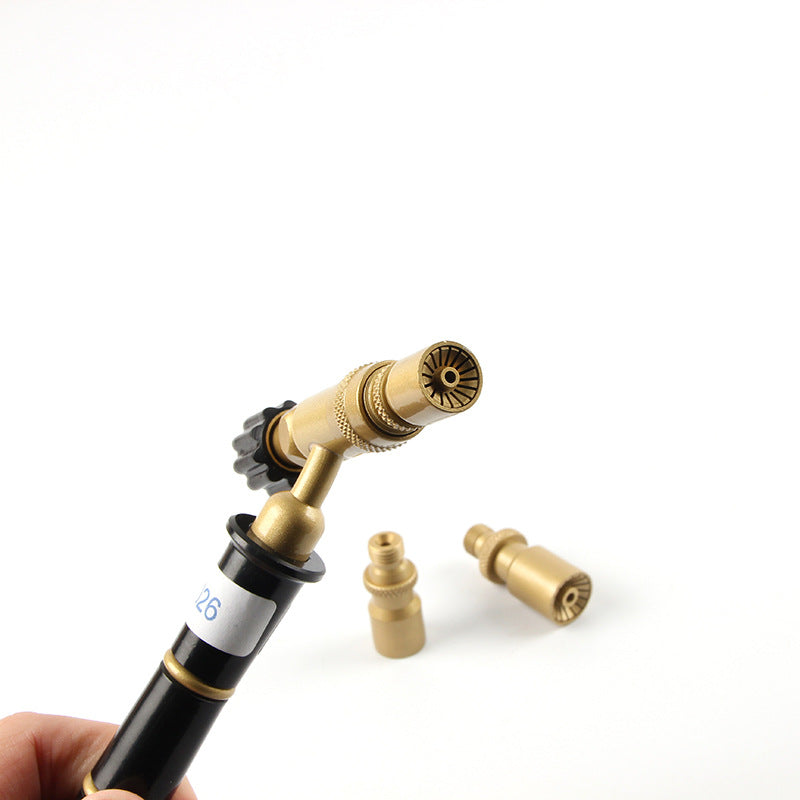

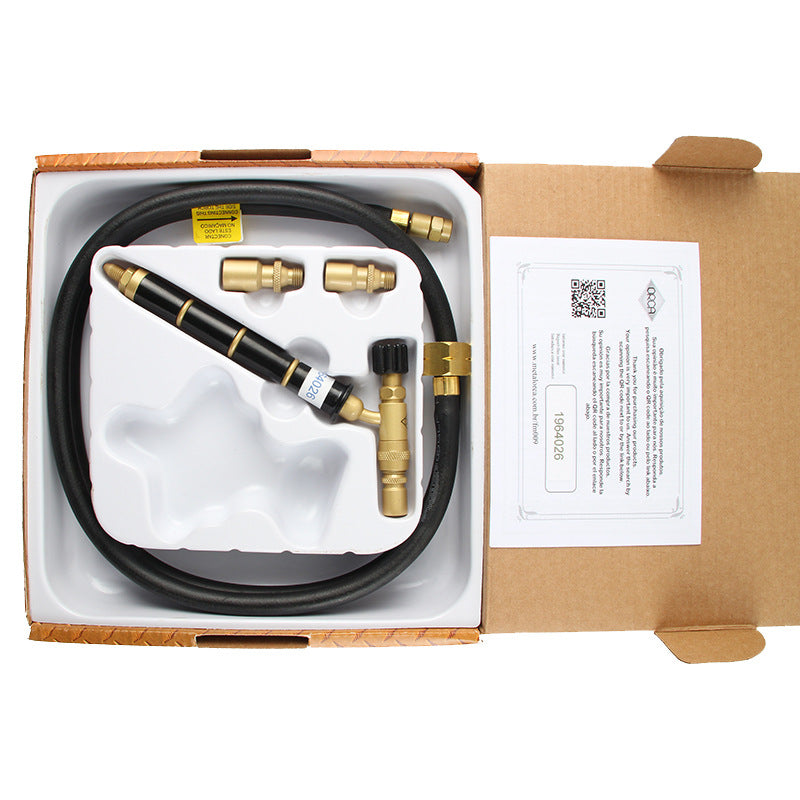

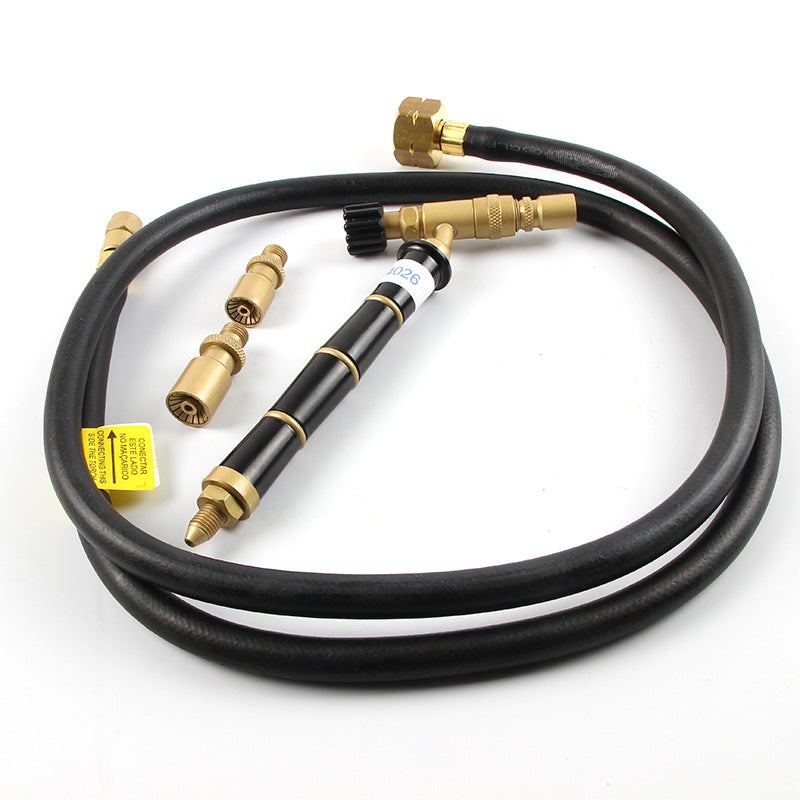

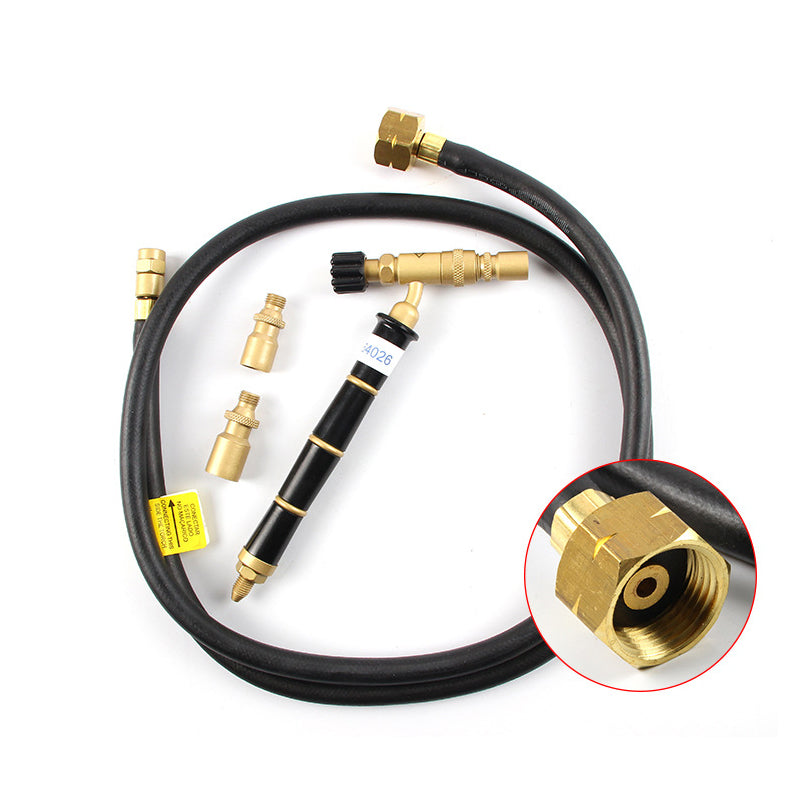

Type	M75 TORCH WITH 3 NOZZLES AND M125TQ 1.25MT HOSE (European Standard)
Item code	HWAC00286
Model	M75 CMG
Brand	ORCA
Place of origin	Brazil
Material	Brass + Bakelite

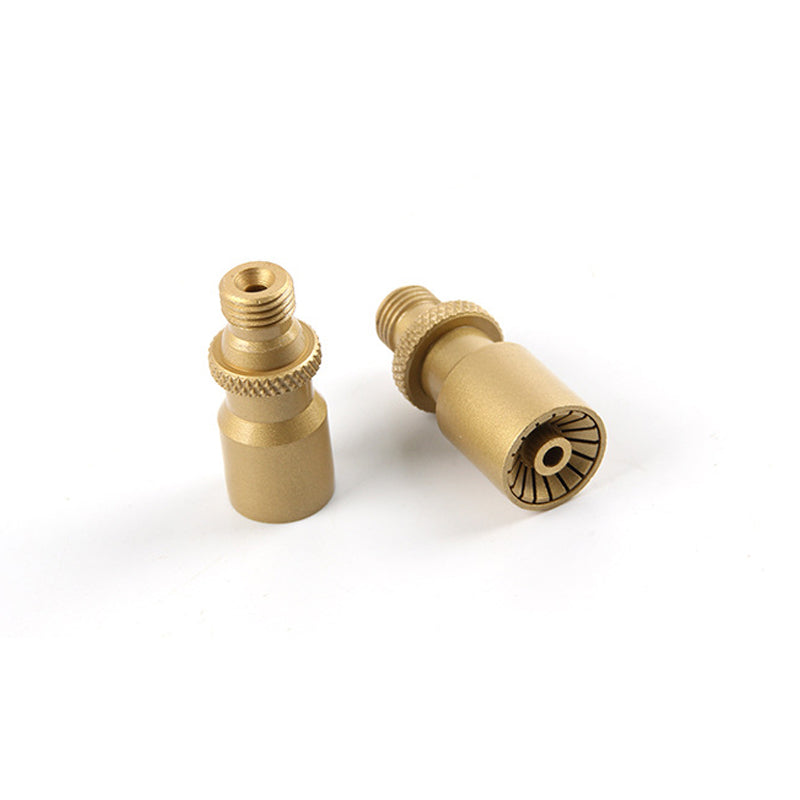

Nozzle diameter	2 mm /2.6 mm /3.8 mm
Maximum temperature	1200 – 1300 ºC



Tip & Flame Selection

Tip Size	Flame Ø	Flame Length	Max Temp	Best For
Small	2.0 mm	15 – 50 mm	1200 ºC	Fine chains & delicate soldering
Medium	2.6 mm	20 – 60 mm	1250 ºC	General repairs & ring resizing
Large	3.8 mm	25 – 70 mm	1300 ºC	Small casting & annealing



The ORCA® M75 M75CMG Kit is an industry-standard, professional-grade atmospheric brazing system engineered specifically for European jewelry designers, boutique metalsmiths, glasswork artists, and specialized dental laboratory technicians.

Manufactured to meet stringent European workshop requirements, this highly efficient kit operates smoothly on standard Butane, Propane, or mixed LPG fuel lines without requiring restrictive pressurized oxygen cylinders or noisy air compressors. By leveraging a natural atmospheric air-draw design, it delivers an exceptionally clean, portable, and cost-effective heating solution for urban studios and commercial workshops alike. Featuring a solid brass body paired with a highly insulated Bakelite handle, the M75 CMG ensures total structural longevity and a comfortable, cool grip during prolonged soldering sequences and multi-component assembly workflows.
