ORCA® MAÇARICO M75 M75CRD KIT

Product name	ORCA® MAÇARICO ORCA M75 M75CRD KIT

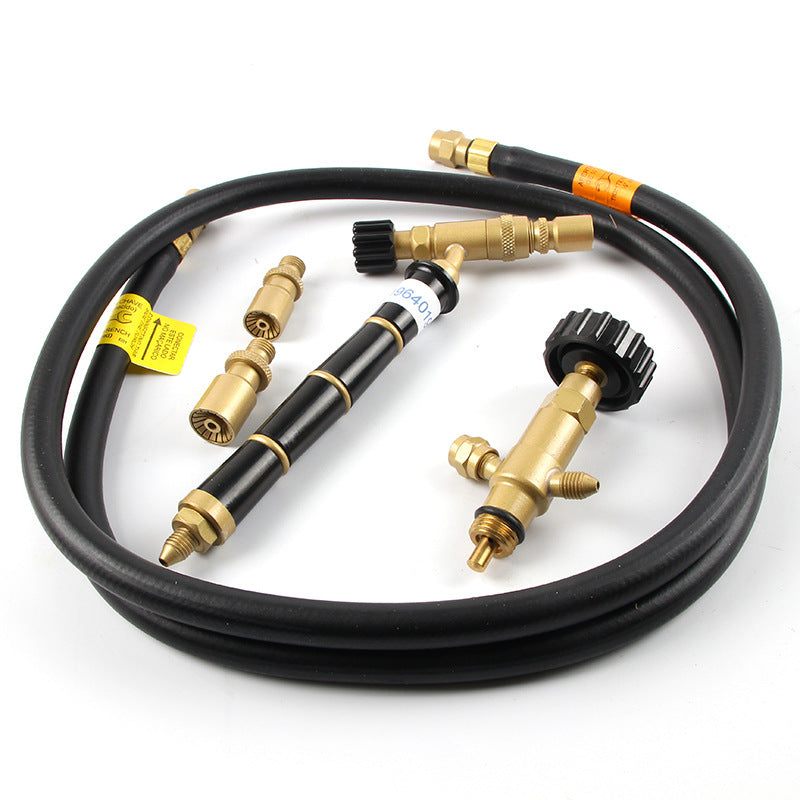

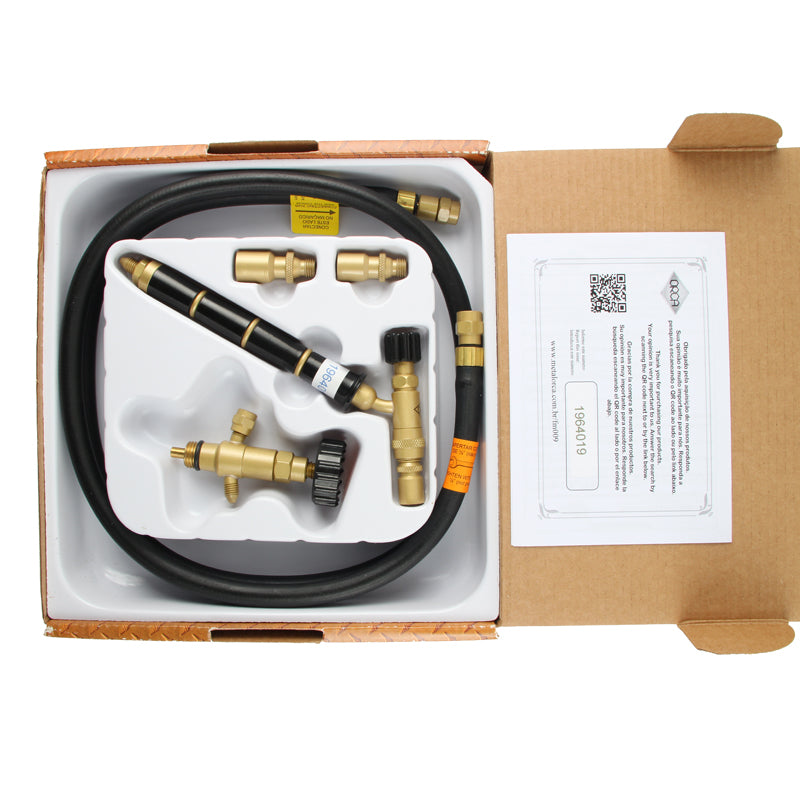

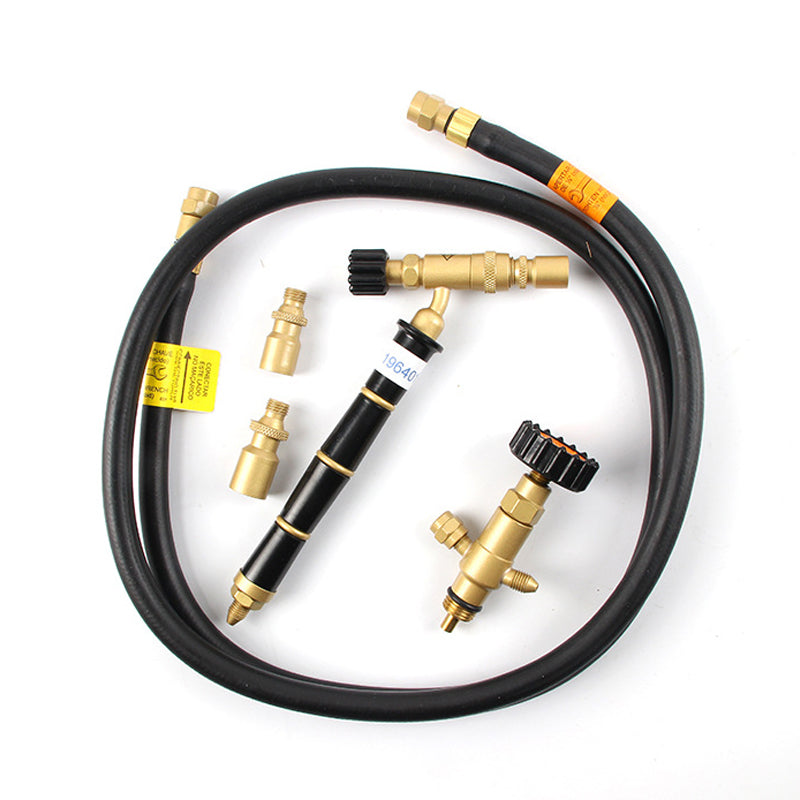

Includes	M75 TORCH WITH 3 NOZZLES AND 1.25MT HOSE AND REGULATOR
Regulator	Tank regulator for 2 torches – fits refillable propane tank
Item code	HWAC00284
Model	M75 CRD
Brand	ORCA
Place of origin	Brazil
Material	Brass + Bakelite
Nozzle diameter	2 mm /2.6 mm /3.8 mm
Maximum temperature	1200 – 1300 ºC



Tip & Flame Selection

Tip Size	Flame Ø	Flame Length	Max Temp	Best For
Small	2.0 mm	15 – 50 mm	1200 ºC	Fine jewelry & micro-soldering
Medium	2.6 mm	20 – 60 mm	1250 ºC	General soldering & ring sizing
Large	3.8 mm	25 – 70 mm	1300 ºC	Small casting & heavy annealing



The ORCA® M75 M75CRD Kit is a commercial-grade, multi-station atmospheric brazing system engineered for high-output jewelry workshops, vocational design classrooms, and busy dental laboratories.

Manufactured in Brazil, this premium all-in-one package includes a specialized dual-output tank regulator designed to fit standard refillable propane tanks, allowing you to operate two separate gas devices simultaneously from a single fuel cylinder. By drawing ambient air naturally rather than relying on high-pressure oxygen cylinders or loud air compressors, this atmospheric setup offers a streamlined, highly portable footprint for expanding production floors. Crafted with a heavy-duty solid brass chassis and a segmented, heat-blocking Bakelite handle, the M75 CRD ensures dependable impact resistance and excellent thermal insulation through grueling daily manufacturing shifts.



Key Product Features

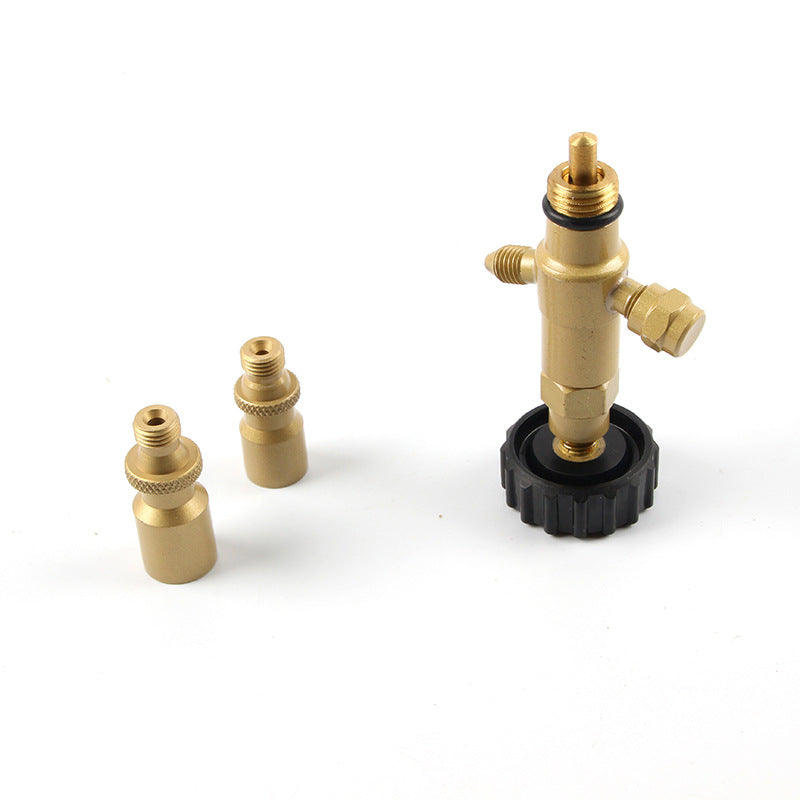

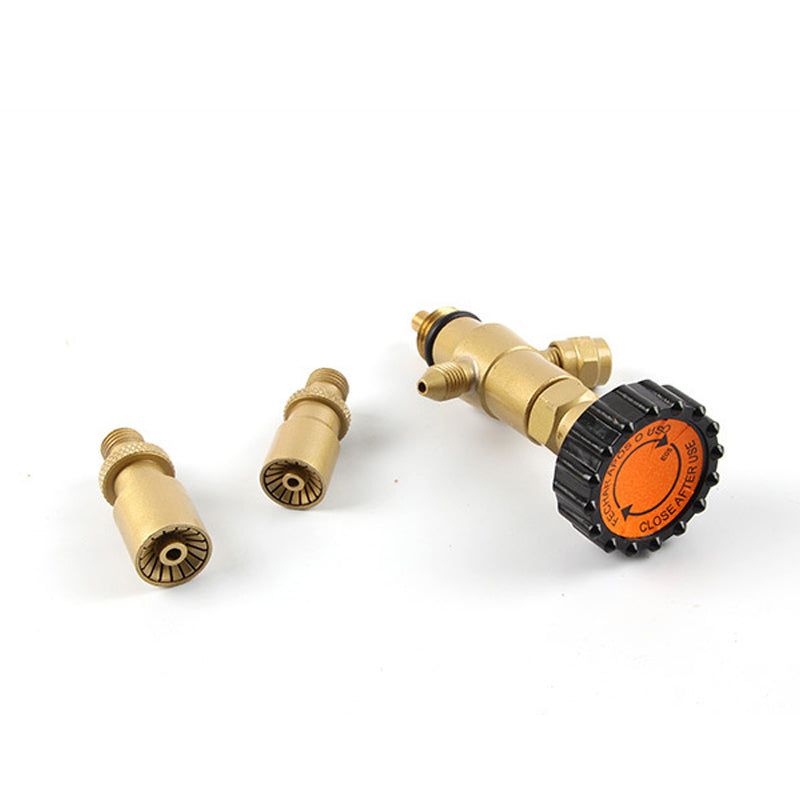

• High-Efficiency Dual-Output Regulator: Outfitted with a premium brass tank regulator engineered to fit refillable propane tanks, providing independent gas tracking to run 2 torches concurrently and scale up workshop efficiency.

• Exclusive Needle-Injector Technology: Features a patented internal needle-injector assembly that maintains high gas velocity even at low flow rates, keeping ultra-fine flames stable, rigid, and focused without flame sputtering.

• Non-Twist Professional 1.25m Hose: Comes equipped with a specialized 1.25-meter LPG gas line featuring fully rotatable connection terminals that spin freely under full compression tightening to ensure total, bind-free freedom of movement.

• Natural Air-Draw System: Eliminates the need for costly secondary gas cylinders or industrial compressors by mixing ambient oxygen cleanly to achieve high brazing temperatures.

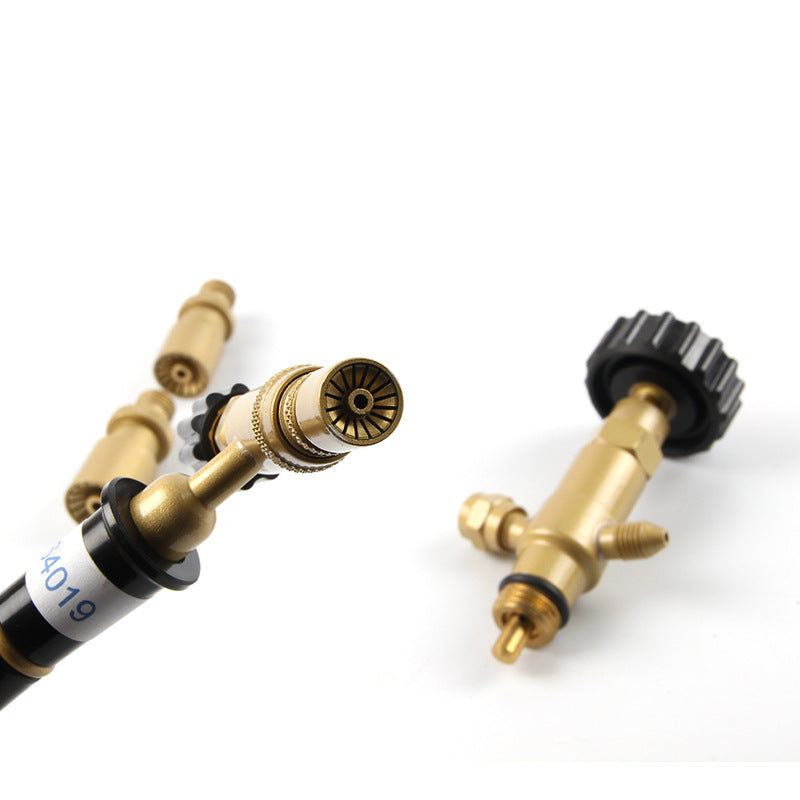

• 3-Piece Interlocking Nozzle Array: Includes three distinct quick-change brass nozzles (2.0mm, 2.6mm, and 3.8mm), giving technicians immediate flexibility to jump between miniature detailing and broad heat distribution.
