Petrol Tank Single & Double Orifice

Generate steady gasoline vapor fuel for traditional jewelry blowpipe torches, brazing systems, and bench melting operations. The Solid Brass Gasoline Petrol Tank is an essential fuel vaporization canister designed for use with foot bellows or low-pressure air compressors paired with single- or double-tube soldering blowpipes. Built from corrosion-resistant solid brass with brazed leak-proof seams, a knurled top fuel-fill cap with safety ring, and angled hose ports, it is available in Single Orifice and Double Orifice configurations across Small (86×154mm) and Large (110×170mm) capacities.

Why Choose the Solid Brass Petrol Generator Tank

• Heavy-Duty Solid Brass Build: Fabricated from thick, heat-resistant brass with airtight sealed joints to resist fuel corrosion and maintain pressure integrity under constant airflow.

• Single vs. Double Orifice Architecture:

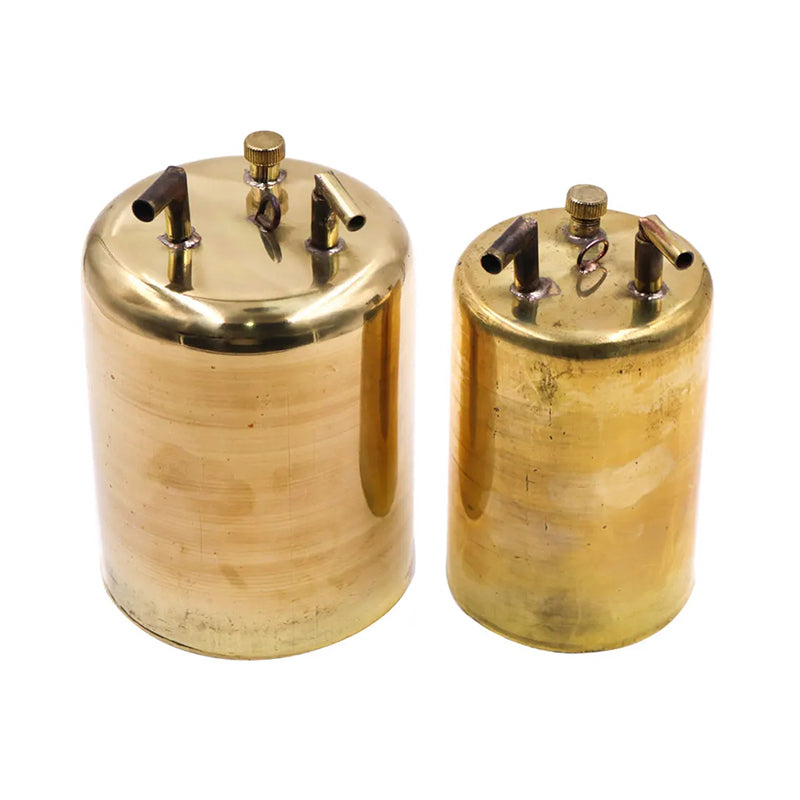

  • Single Orifice (SKAD0012 / SKAD0013): Outfitted with two top ports (air inlet and fuel vapor outlet) to power standard single-tube blowpipe torches for delicate soldering.

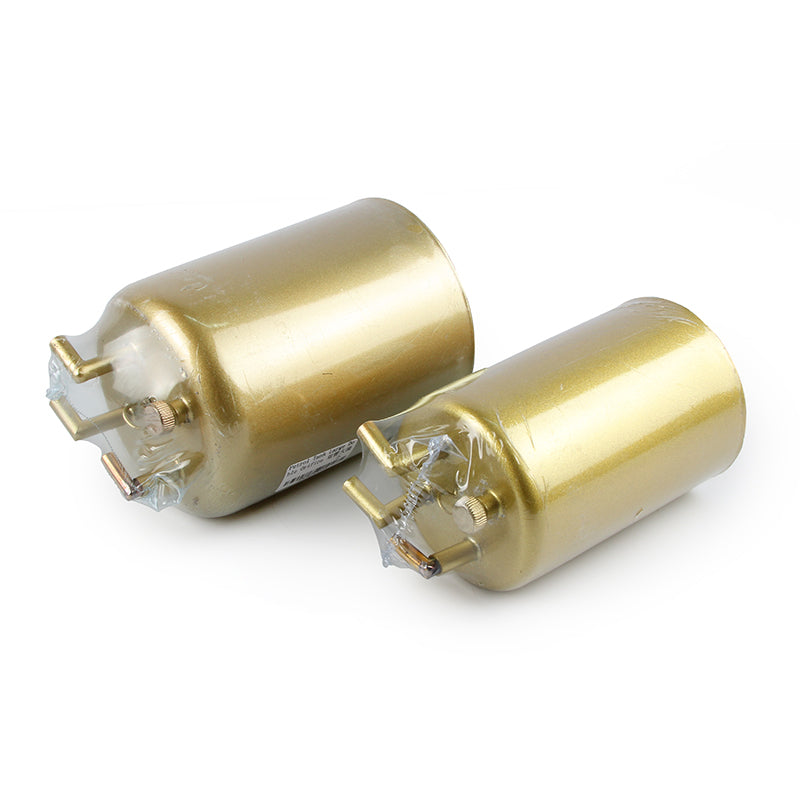

  • Double Orifice (SKAD0014 / SKAD0015): Features three top ports to supply dual-channel fuel/air lines for high-output double-tube torches and multi-bench setups.

• Knurled Center Fuel Cap with Pull Ring: Threaded top brass filler plug provides a hermetic seal to prevent fumes from escaping, complete with a center ring for quick unscrewing and refueling.

• Two Capacity Sizes Available:

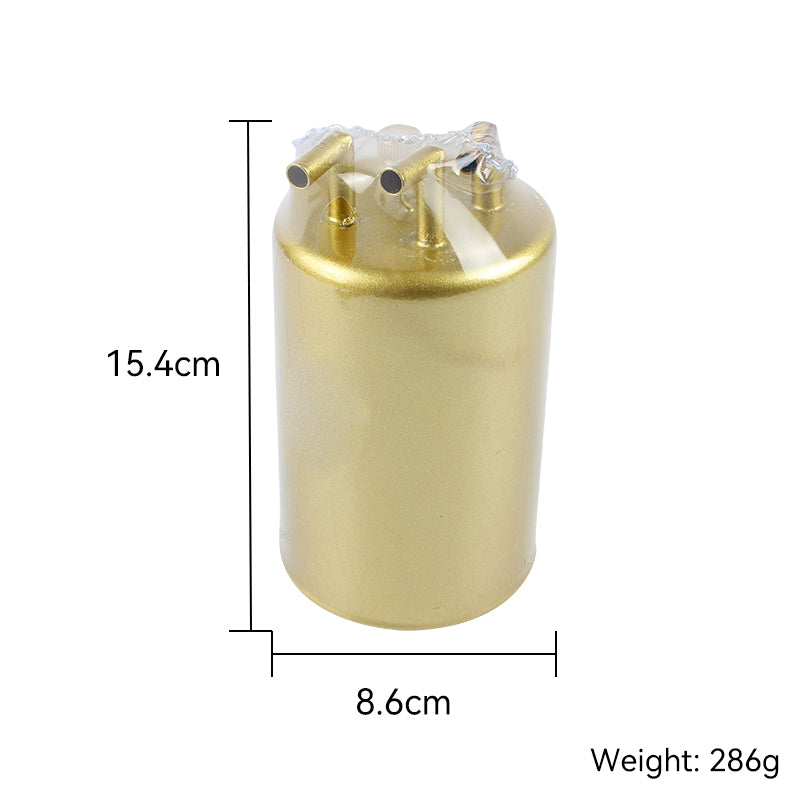

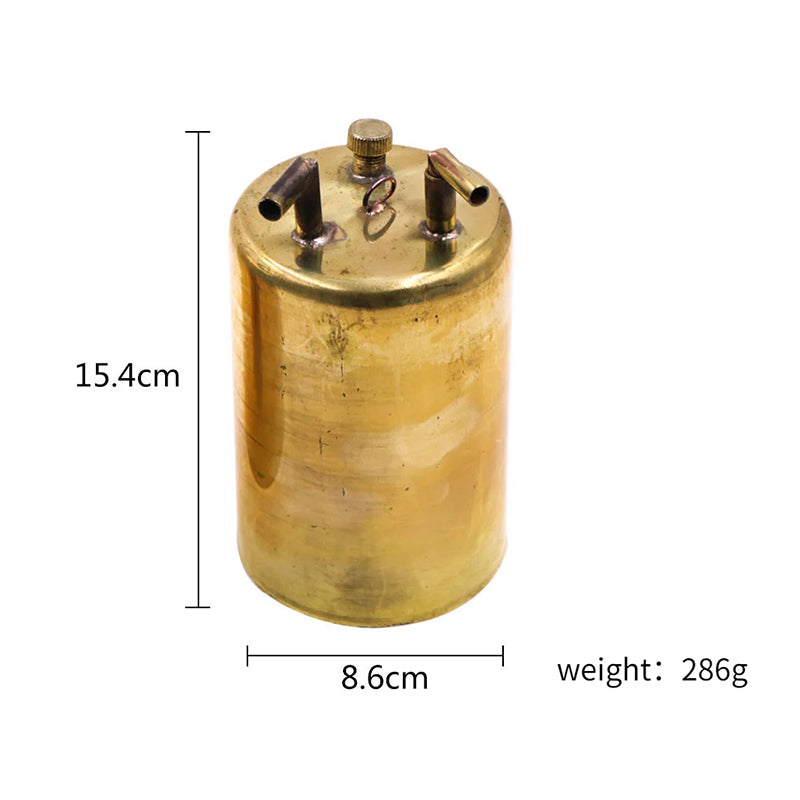

  • Small (86 × 154 mm / 286 g): Compact footprint for single-station jeweler benches and light repair tasks.

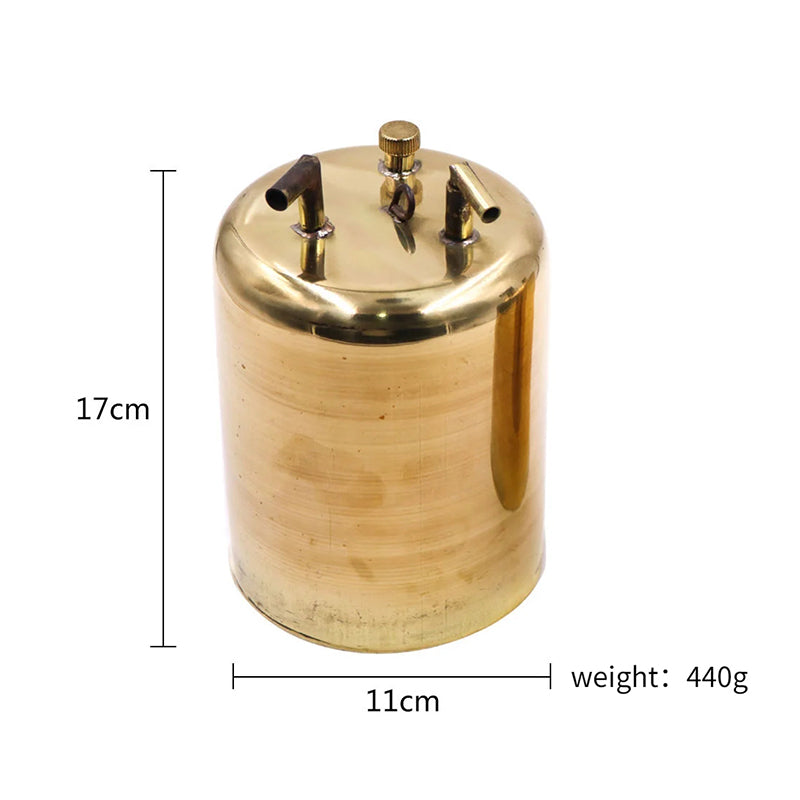

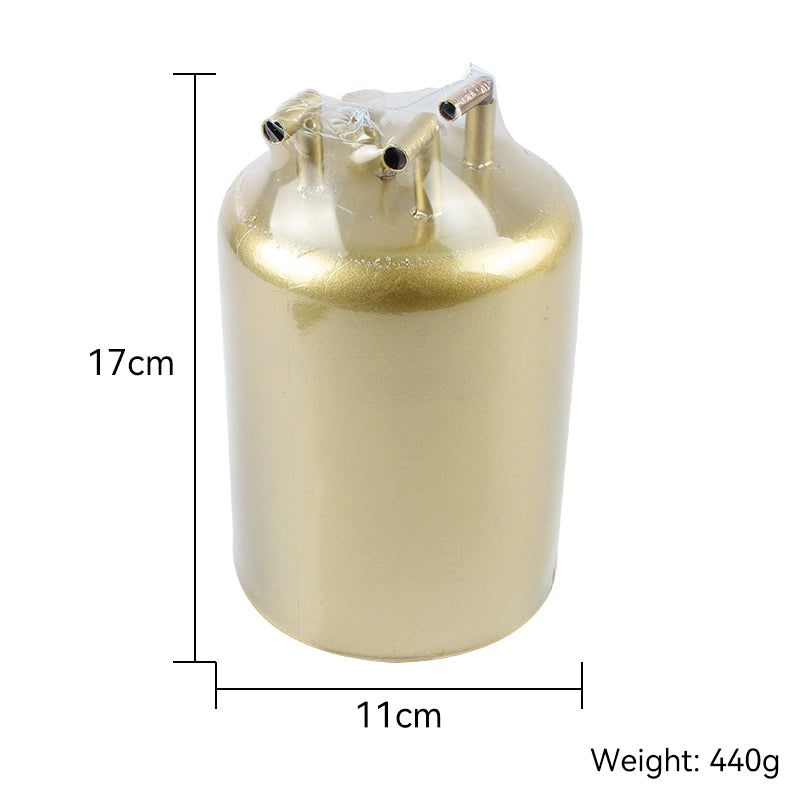

  • Large (110 × 170 mm / 440 g): Higher fuel capacity for extended casting, melting, and production annealing.

• Angled Friction-Fit Hose Barbs: Rigid angled brass outlet pipes prevent fuel line kinking and provide a secure connection for rubber and silicone air tubing.

Size Comparison
