SmartPro Aura IQ Synthetic Diamond Screener

SmartPro® Aura IQ Technical Specifications

Specification Item	Technical Details
Brand	SmartPro® Tools
Model	Aura IQ
Detection Technology	Photoluminescence Optical UV Imaging
Body Color	Red with Black
Active Scanning Size	5 cm × 7 cm Tray
Test Cycle Duration	20 Seconds per test
Stone Size Limit	Down to 0.002 Carats
Stone Color Range	D to K Color Grades
Result Identification	Red Marking for synthetics (HPHT, CVD, CZ, and Moissanite)
Lamp Life	Approximately 200,000 tests
Display Interface	4" Capacitive Touchscreen LCD
Display Functions	Screen share / Mirroring support
Operating System	Android OS
Internal Hardware	2GB RAM, 16GB Storage
Data Connectivity	Integrated Wi-Fi Printer Support, Direct Email, and WhatsApp Output
Remote Assistance Core	Integrated TeamViewer & AnyDesk Support
Power Input	100–240 VAC, 1.3A, 50–60Hz (External Interchangeable Adapter)
Power Output	24V, 2.1A, 50.4W

The SmartPro Aura IQ is a compact, self-contained diamond authentication system that brings laboratory-grade detection straight to your studio bench. Running on a built-in Android operating system with an intuitive 4-inch touchscreen, this device requires no external computer, no secondary monitor, and no messy cable setups to operate.

By utilizing advanced UV photoluminescence imaging, it scans the atomic lattice structure of your stones to accurately differentiate natural diamonds from CVD lab-grown, HPHT lab-grown, moissanite, and cubic zirconia (CZ). Whether you are analyzing a batch of loose melee stones for a multi-stone setting or verifying vintage pre-owned jewelry, this compact device gives you immediate, definitive clarity without any human readout errors.

Key Product Features

• Photoluminescence Optical Imaging: Scans the crystal growth blueprints of your gems. The system automatically identifies Natural Diamonds, CVD, HPHT, Moissanite, and CZ—completely independent of the stone's cut facet shape.

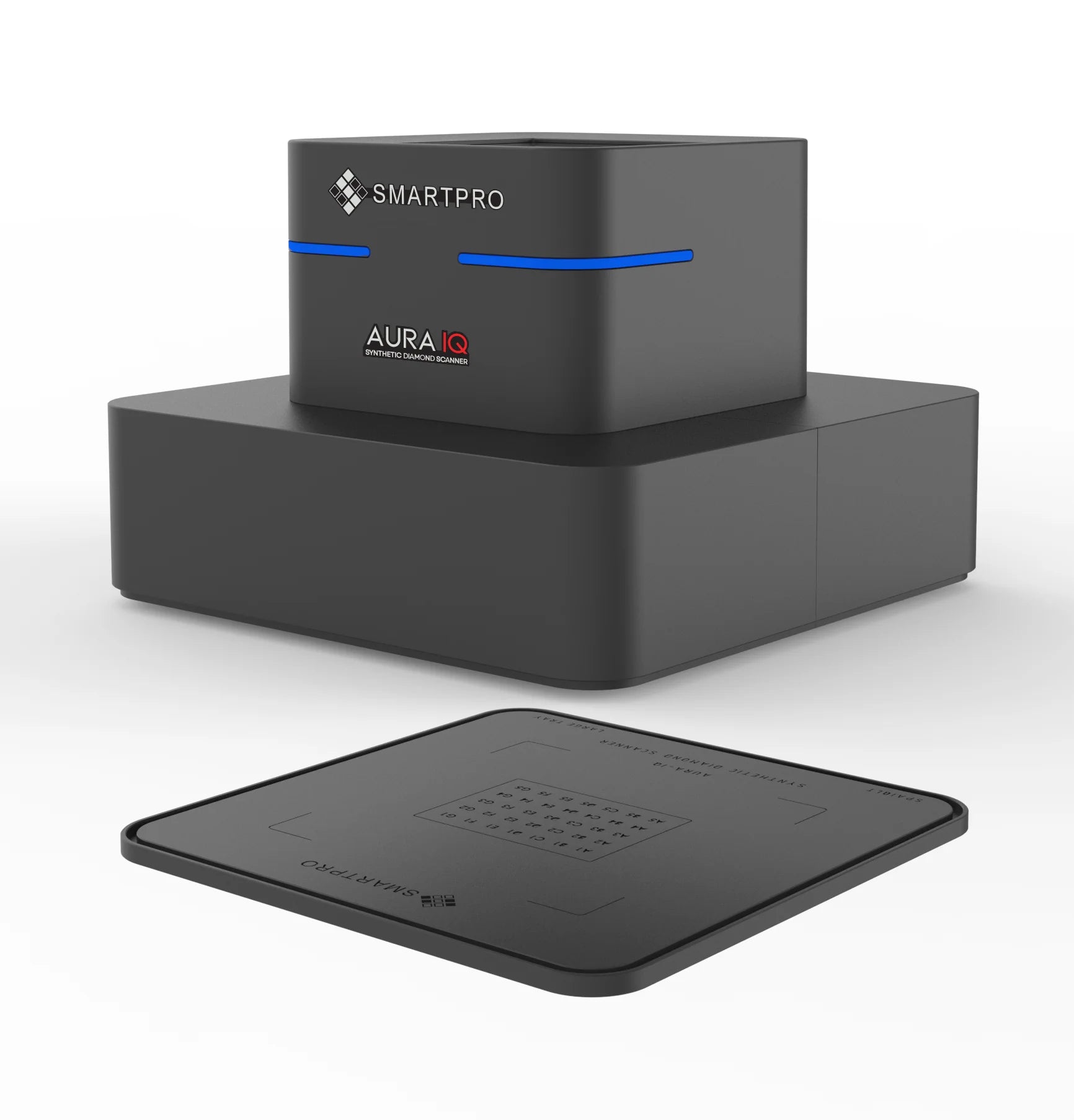

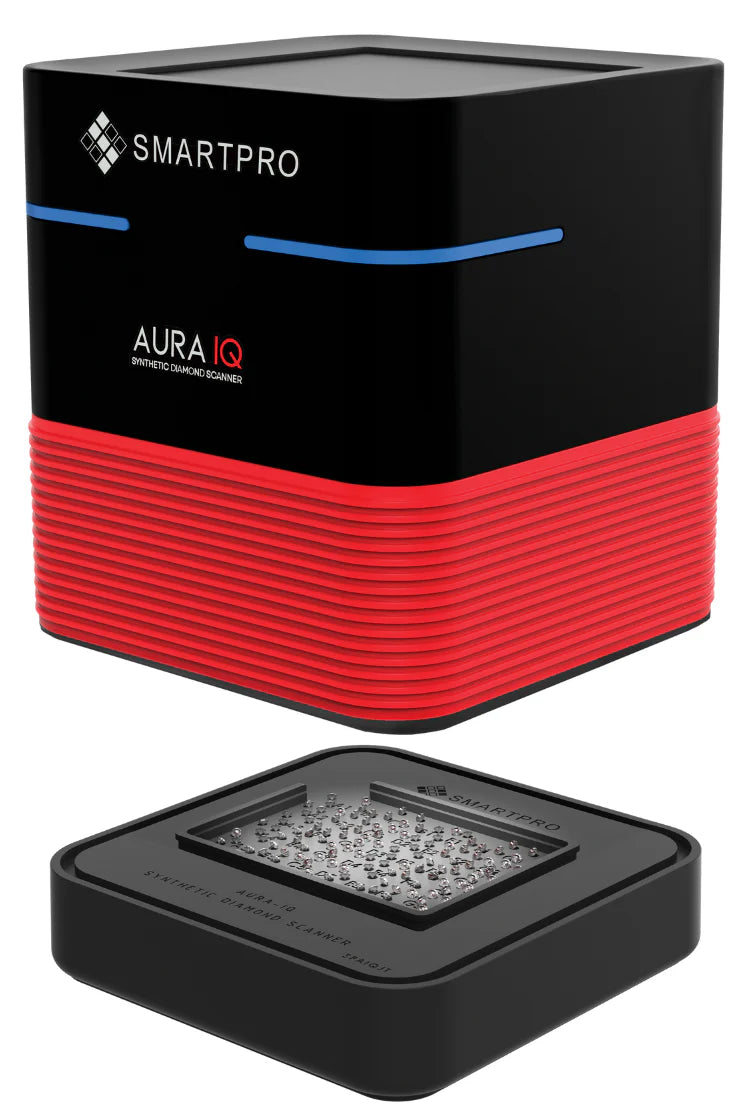

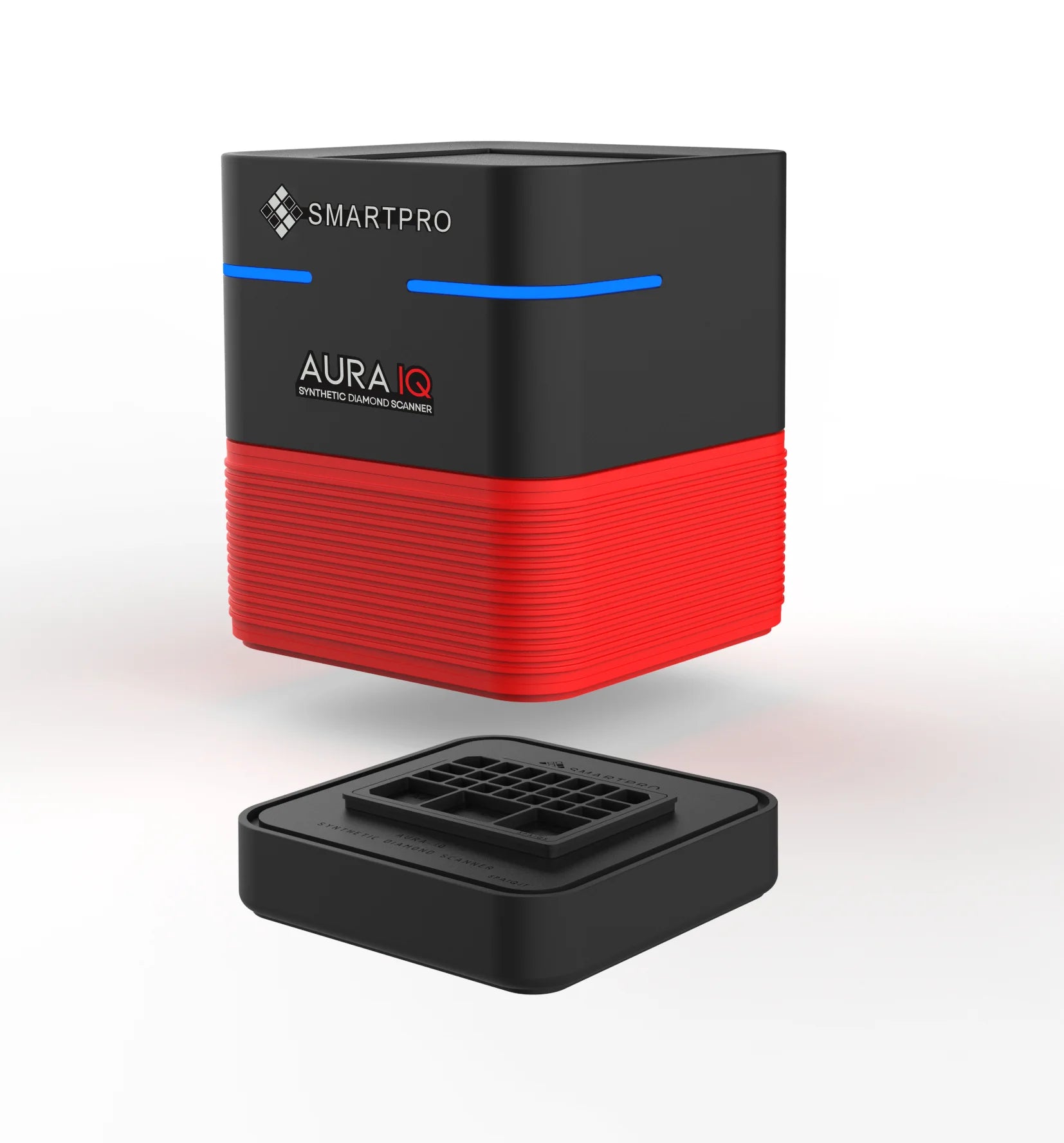

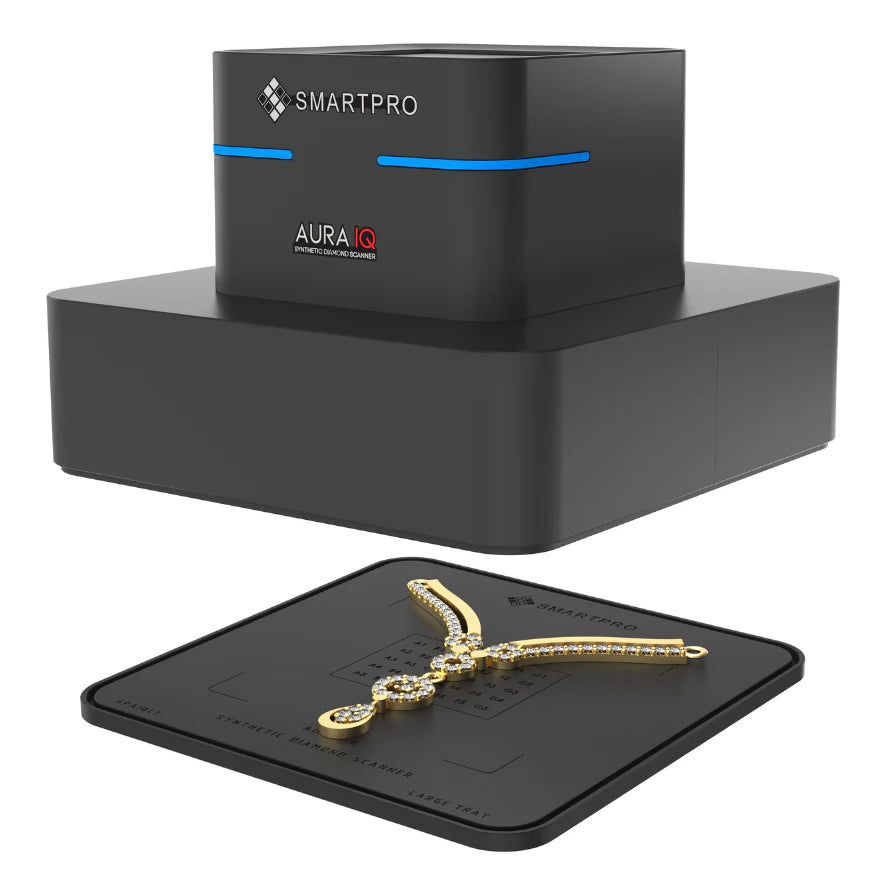

• Dual-Mode Interchangeable Trays: Comes standard with two dedicated, drop-in utility trays optimized for Loose Stone Mode and Jewelry Mode to seamlessly adapt to your daily workflow.

• Completely Standalone Operation: Powered by a built-in 4-inch capacitive touchscreen with 2GB RAM and 16GB internal storage. You can run tests, review color-coded scans, and manage settings directly on the device.

• Instant Digital Custom Certification: Automatically generates clear test result certificates. You can share these reports instantly with your clients or followers via integrated WhatsApp and Email options, or send them over Wi-Fi to a local printer.

• Long-Life Internal Optical Source: The heavy-duty UV lamp module is engineered to perform approximately 200,000 individual test cycles before requiring factory maintenance.
