TSK Jeweler’s Saw Frame - Adjustable / Fixed

Achieve clean line cuts, delicate pierced scrollwork, and smooth contouring in precious metals, sheet stock, wires, and hard waxes. The TSK Jeweler’s Saw Frame Series offers reliable spring-steel construction paired with comfortable hardwood handles in both fixed and telescoping adjustable configurations. Engineered with a versatile 90mm throat depth and textured wing thumbscrews, TSK saw frames deliver consistent blade tension, tight tracking along bench pins, and long-term durability for everyday studio and workshop use.

Why Choose TSK Jeweler’s Saw Frames

• Spring Steel Frame Rigidity: Forged from high-grade spring steel that resists frame deflection and twist, ensuring straight tracking and reducing blade breakage during intricate piercing.

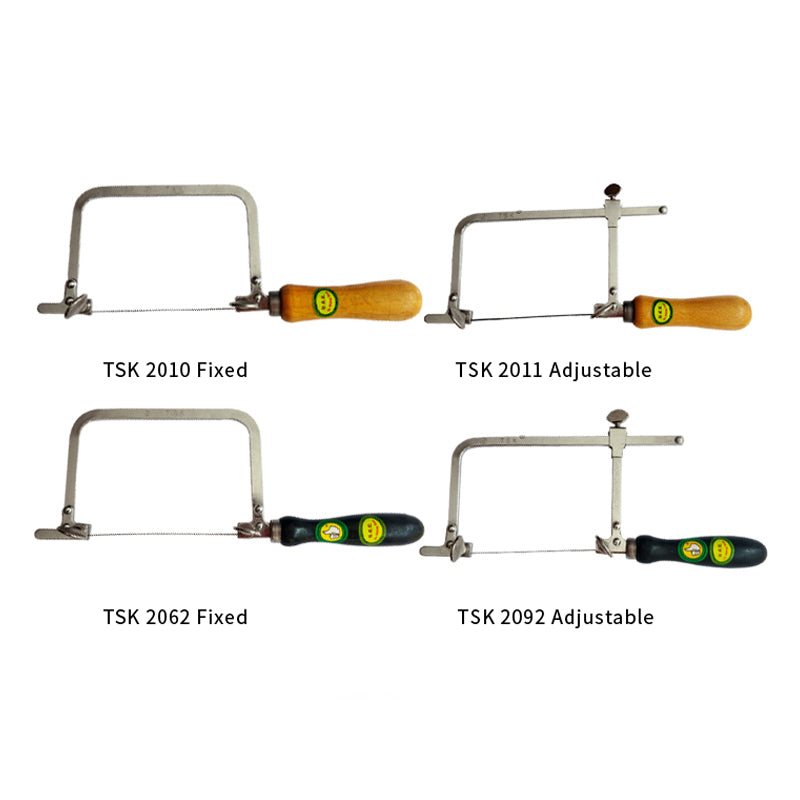

• Fixed vs. Adjustable Architecture:

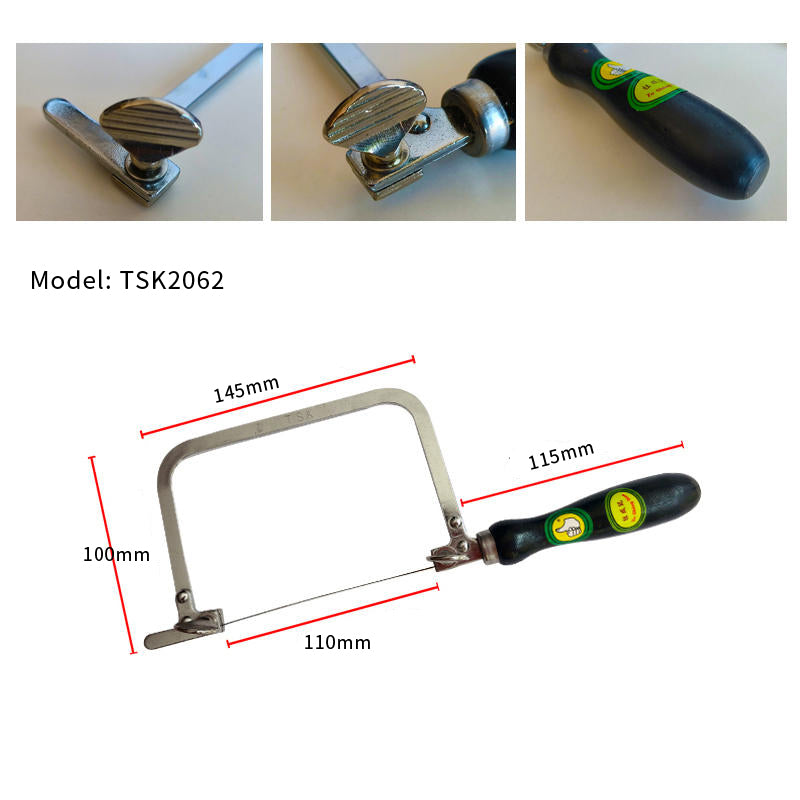

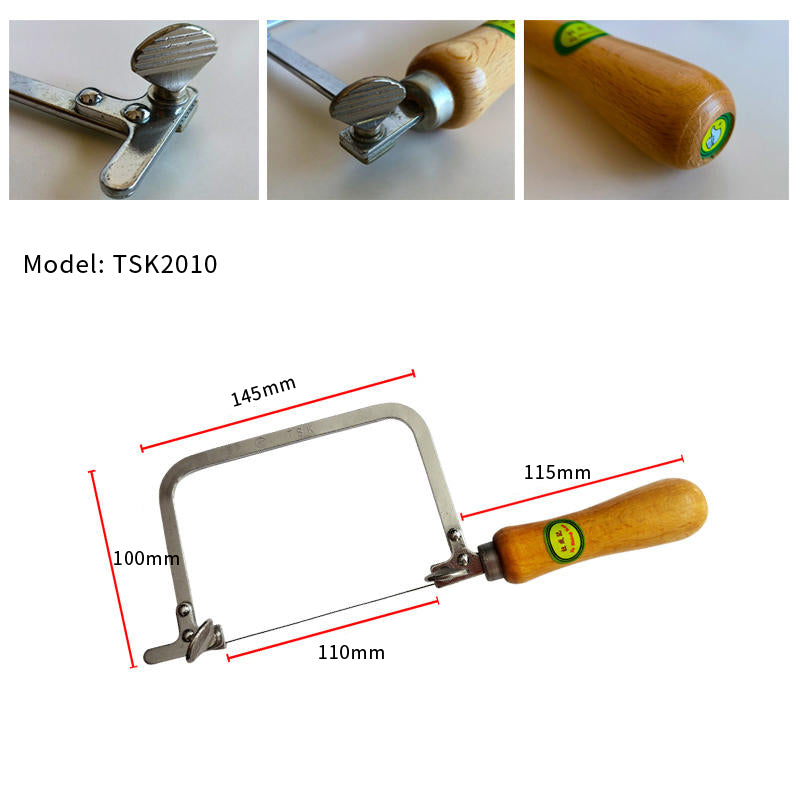

  • Fixed Models (TSK2010 / TSK2062): Solid one-piece U-bow frame engineered for maximum structural rigidity and rapid tensioning with standard 130‑150 mm blades.

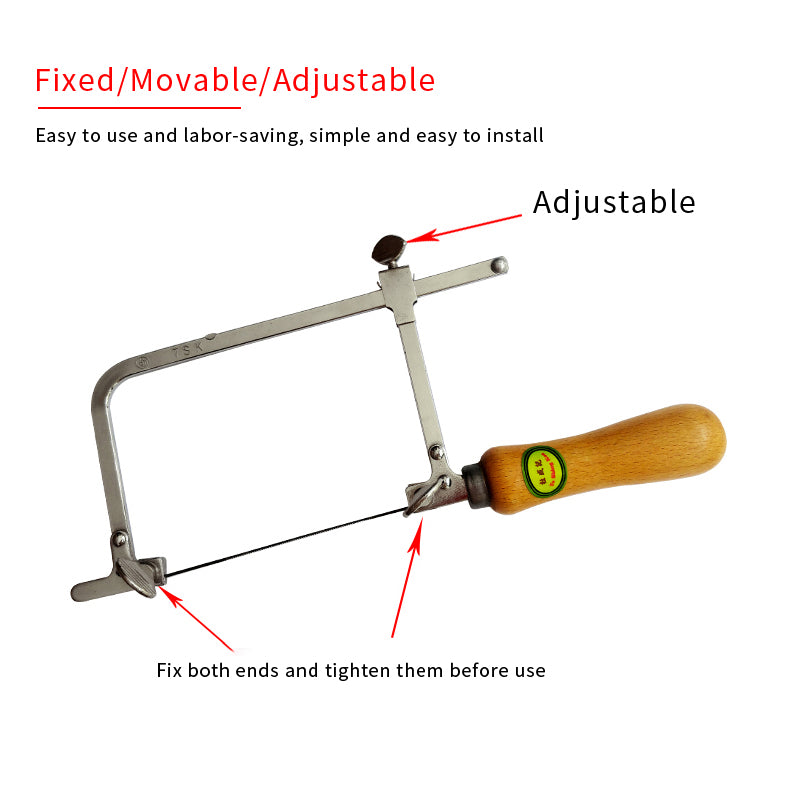

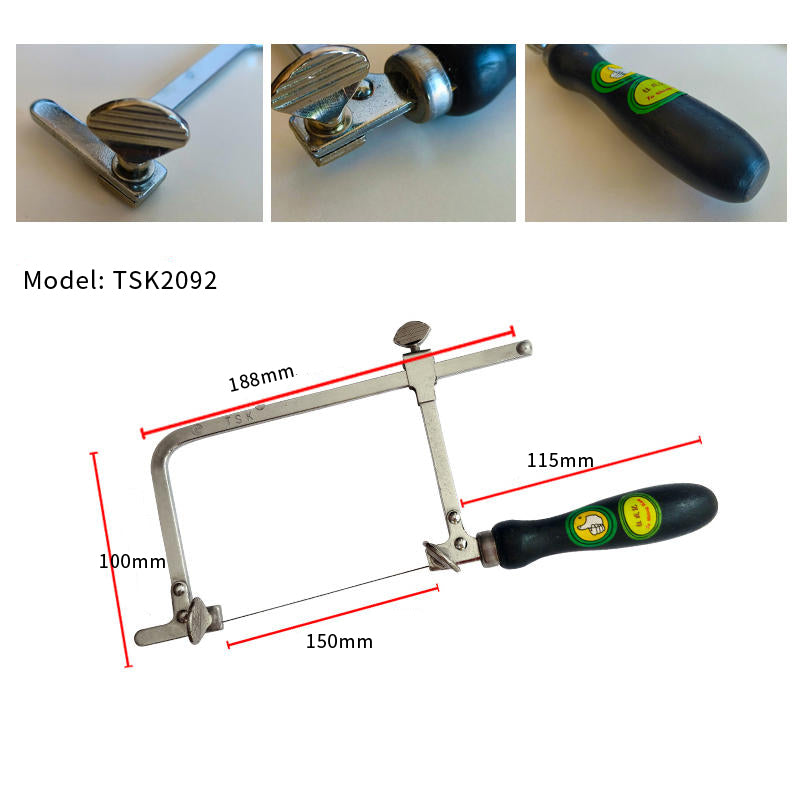

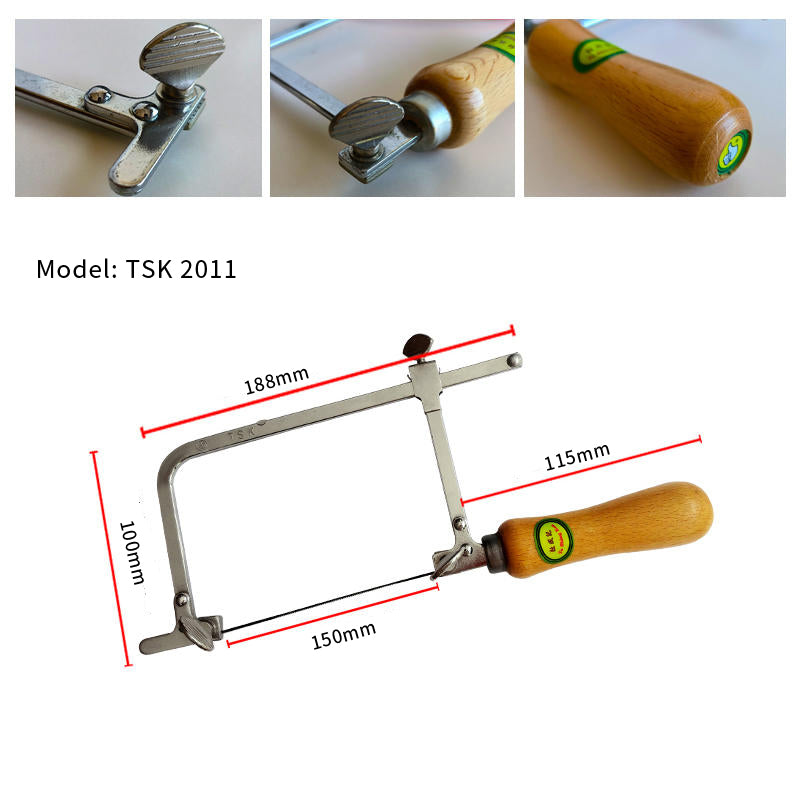

  • Adjustable Models (TSK2011 / TSK2092): Telescoping spine design allows users to adjust frame length to fit full-length blades or salvage broken blade segments to minimize consumable waste.

• Versatile 90mm Throat Depth: Delivers the ideal balance between clearance for medium-sized sheet work and rigid leverage for tight, controlled cornering.

• Ergonomic Contoured Hardwood Handles (115 mm): Shaped for natural palm grip comfort in classic natural wood or stained black finishes, reducing hand fatigue during long fretwork sessions.

• Textured Knurled Thumbscrews: Heavy-duty wing clamp screws provide strong mechanical grip on fine blade ends (#8/0 to #6), preventing slippage under high working tension.

Technical Specifications

Parameter	Metric Certified Factory Specification
Brand	TSK
Product Designation	TSK Jeweler’s Saw Frame (Fixed / Adjustable)
Throat Depth (Working Depth)	90 mm (100 mm outer clearance)
Frame Material	Chrome‑Plated Spring Tool Steel
Handle Material & Length	Contoured Natural Hardwood (115 mm / 4.53 in)
Handle Color Options	Natural Wood / Matte Black
Blade Compatibility	Standard 130‑150 mm Piercing Saw Blades (#8/0 to #6) & Short Broken Segments (Adjustable models)
